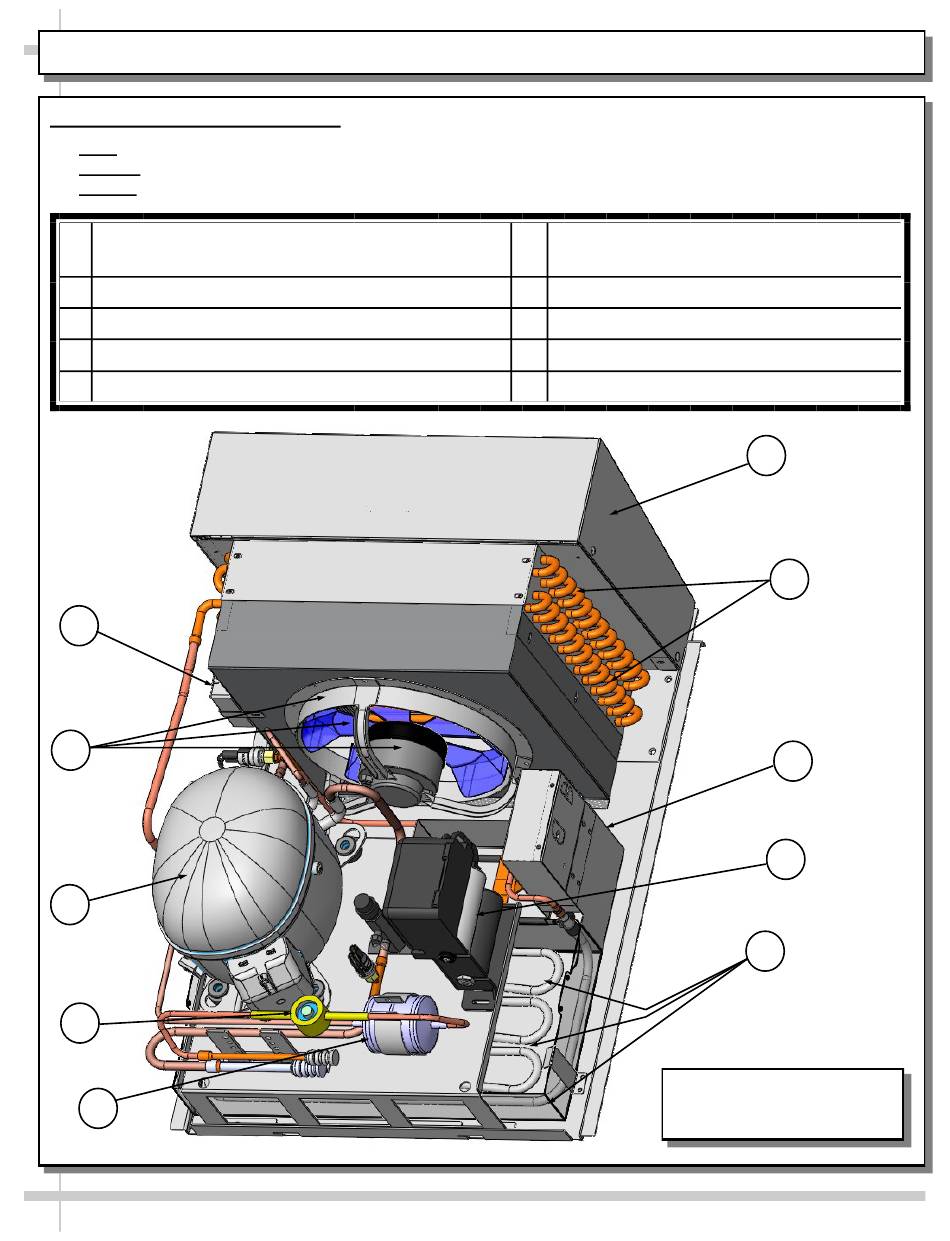

CONDENSER PACKAGE LAYOUT: MODELS HECO37R ONLY

Typical Configurations, Continued
• Note: Unit shown below is for models HECO37R only. Your condenser package layout may vary.
• Caution: Only certified refrigeration/electrical engineers or contractors are to access condenser unit.
• Access: Remove front grille by lifting up and off (no screw removal required). Slide out.
Condenser Coil Shroud (Optional: May House Clean
1
Sweep™ Automatic Condenser Coil Cleaner)
2 Condenser Coil Tubing
3 Electrical Coil Overflow Condensate Pan
4 Embraco® Start Components
5 Hot Gas Condensate Pan & Serpentine Rods
10
9
8
7
6
6 Filter / Drier
7 Sight Glass
8 Refrigeration Pump
9 Fan Motor & Fan Shroud
10 Automatic Condenser Coil Cleaner Driver
16
1
2
3
4
5
EnergyWise Refrigeration Package
for Model HECO37R. See Next
Page For Other Models.
