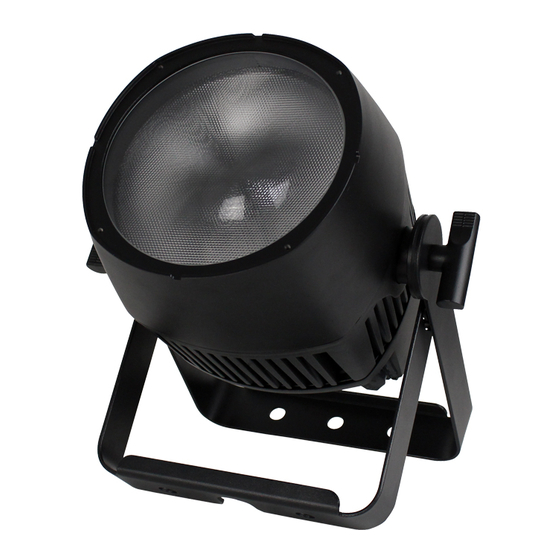

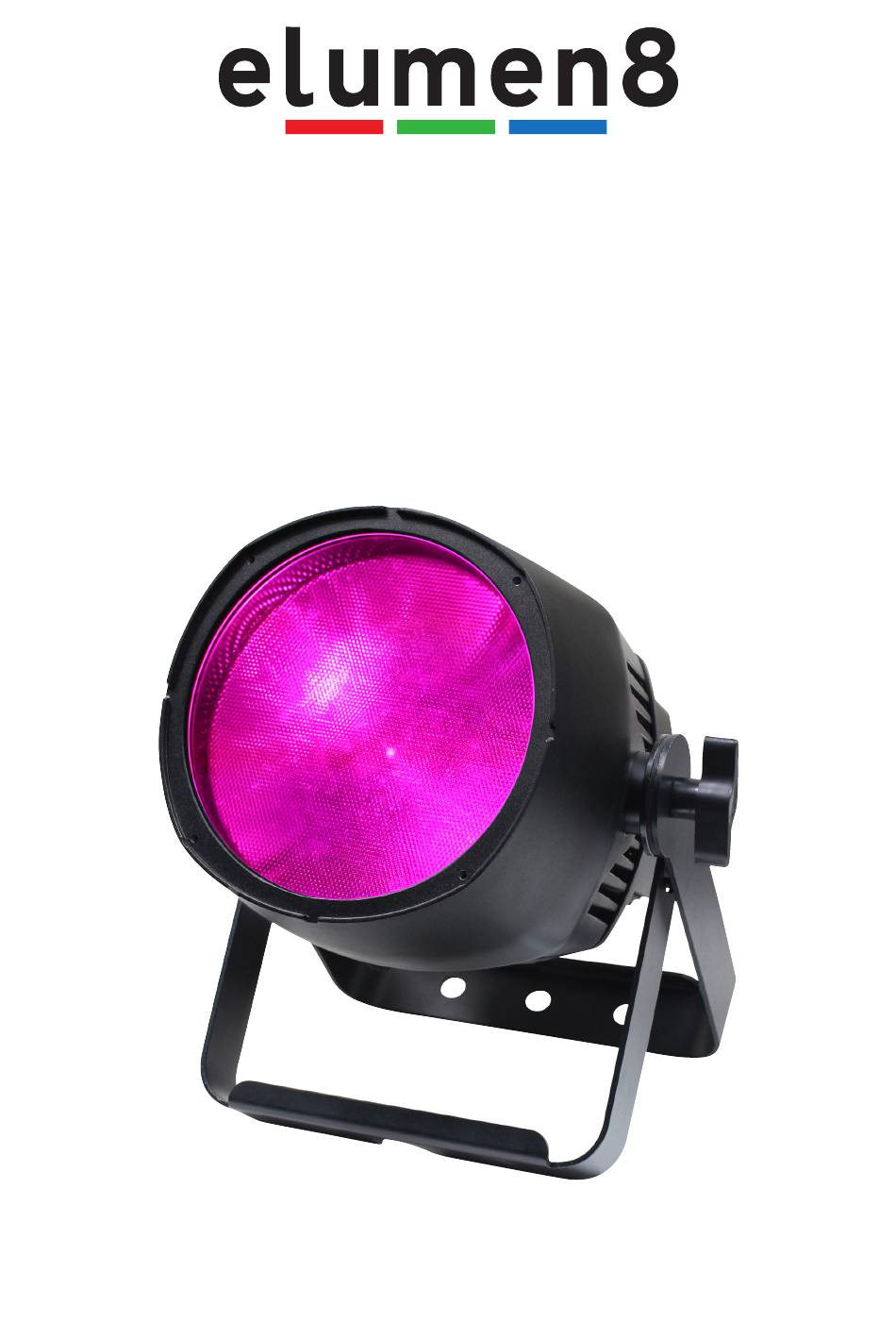

- Page 1 Endura 1Q120 RGBW COB Exterior Fixture User Manual Order code: ELUM454...
-
Page 2: Safety Advice
• Always disconnect the power from the mains when product must be installed by a qualified technician in equipment is not in use or before cleaning! Only handle accordance with local territory regulations. The safety of the power-cable by the plug. Never pull out the plug by the installation is the responsibility of the installer. The pulling the power-cable. fixture presents risks of severe injury or death due to fire • Make sure that the available mains supply voltage is hazards, electric shock and falls. between 100~240V AC, 50/60Hz. • Warning! Risk Group 2 LED product according to • Make sure that the power cable is never crimped or EN 62471. Do not view the light output with optical damaged. Check the equipment and the power cable instruments or any device that may concentrate the beam. periodically. • WARRANTY: Two years from date of purchase. • If the equipment is dropped or damaged, disconnect the mains power supply immediately and have a qualified engineer inspect the equipment before operating again. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Endura 1Q120 RGBW COB User Manual... - Page 3 Product overview & technical specifications Endura 1Q120 RGBW COB Exterior Fixture The Endura series are heavy-duty, rental ready IP rated pars made for the most demanding of applications. With flicker-free operation, thanks to a 3,600Hz refresh rate, and a multitude of colour and output options the series is perfectly suited for use in concert, TV and outdoor applications. The fixture can be controlled via DMX and provides a variety of colour macro, change, fade and strobe functions with 4 selectable dimmer curves. The fixture it is also capable of master/slave operation and is accessible via a 4 button backlit display with menu lock to prevent unauthorised setting changes. The robust IP65 rated housing features TRUE1 and 5-pin DMX inputs and outputs to facilitate a problem-free connection. • 1 x 120W quad-colour COB LED (RGBW) • IP rated 5-Pin XLR input/output IP65 • Beam angle: 16° • Temperature controlled fan cooled for whisper quiet operation • 7,110 Lux @ 2m (full on) • 50mm snoot included • 3.6kHz refresh rate • DMX channels: 1/4/8 or 9 selectable Specifications Endura 1Q120 RGBW COB • Static colour, colour change, colour fade Power consumption 135W and master/slave modes Power supply 100~240V, 50/60Hz • 0 - 100% 8 or 16 bit dimming...
-
Page 4: Technical Specifications
MODE ENTER 01 - LCD display 05 - IP rated 5-Pin DMX input In the box: 1 x fixture, 02 - Function buttons 06 - IP rated 5-Pin DMX output 1 x 50mm snoot, 03 - PowerCON TRUE1 input 07 - Hanging bracket 1 x PowerCON TRUE1 cable & 1 x user manual 04 - PowerCON TRUE1 output 08 - Hanging bracket adjustable knob Fuse: The Endura 1Q120 RGBW is fitted with an internal mains (line) fuse. The fuse must only be changed by qualified personnel. Before opening the fixtures housing or changing the fuse, the fixture must be disconnected and isolated from the mains supply. Replacement cartridge fuses must be of the same type and rating (20mm Glass T2A 250V). When closing the fixture please ensure the seal is correctly positioned and free from damage to ensure the fixture is water tight and to prevent water ingress. www.prolight.co.uk Endura 1Q120 RGBW COB User Manual... - Page 5 F000-F255 02.FADE Colour Fade Mode 03.CHANG SP00-SP99 F000-F255 Colour Change Mode Manual 000-255 Manual Dimming Mode STR: Dim: Macros 00-63 Colour Macros Hold NO DMX DMX Fail Setting Blackout –––°C Temp. Fixture Temperature –––°F WhiteBal 000-255 White Balance Setting AutoLock Auto Lock Menu Setting Op.Time ––– Fixture Run Time DFSE Default Factory Settings www.prolight.co.uk Endura 1Q120 RGBW COB User Manual...
- Page 6 226-255 S-Curve 000-255 Strobe (slow-fast) 000-255 Master dimmer (0-100%) 000-004 No function 005-125 Colour change (slow-fast) 126-255 Colour fade (slow-fast) 000-045 Linear Halogen 046-075 Square Dimming 076-105 Inverse Square Curves 106-135 S-Curve 136-165 Linear 166-195 Square Dimming 196-225 Inverse Square Curves 226-255 S-Curve www.prolight.co.uk Endura 1Q120 RGBW COB User Manual...
-
Page 7: Dmx Setup
DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Note: DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Endura 1Q120 RGBW COB User Manual... - Page 8 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Endura 1Q120 RGBW COB User Manual...
-
Page 9: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Endura 1Q120 RGBW COB User Manual... - Page 10 Endura 1Q120 RGBW COB User Manual...
- Page 11 Endura 1Q120 RGBW COB User Manual...
- Page 12 Endura 1Q120 RGBW COB User Manual...
