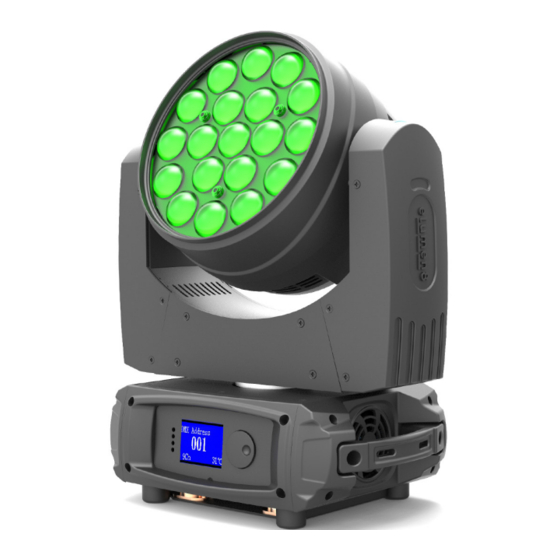

Kudos 350ZS
User Manual
Order codes: ELUM423

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kudos 350ZS and is the answer not in the manual?

Questions and answers

Related Manuals for Elumen8 Kudos 350ZS

Summary of Contents for Elumen8 Kudos 350ZS

  • Page 1 Kudos 350ZS User Manual Order codes: ELUM423...

  • Page 2: Safety Advice

    NO USER SERVICEABLE PARTS. pulling the power-cable. • This lighting fixture is for professional use only - it is • Make sure that the available mains supply voltage is not designed for or suitable for household use. The between 100~240V AC, 50/60Hz. product must be installed by a qualified technician in accordance with local territory regulations. The safety of • Make sure that the power cable is never crimped or the installation is the responsibility of the installer. The damaged. Check the equipment and the power cable fixture presents risks of severe injury or death due to fire periodically. hazards, electric shock and falls. • If the equipment is dropped or damaged, disconnect the • Warning! Risk Group 2 LED product according to mains power supply immediately and have a qualified EN 62471. Do not view the light output with optical engineer inspect the equipment before operating again. instruments or any device that may concentrate the beam. • WARRANTY: Two years from date of purchase. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Kudos 350ZS User Manual...
  • Page 3 3120 1750 1120 52400 13118 5820 3280 2100 10900 2729 1210 63600 15900 7070 3980 2540 60° - Lux FULL ON 10200 2546 1130 2150 536.7 85.9 4280 1069 248.3 39.7 4760 1192 5° 60° www.prolight.co.uk Kudos 350ZS User Manual...

  • Page 4: Technical Specifications

    Technical specifications POWER CONSUMPTION: 360W 01 - LCD display 06 - 5-Pin DMX input 02 - Jog wheel 07 - 5-Pin DMX output 11 - Earth point In the box: 1 x fixture, 03 - LED mode indicators 08 - PowerCON input 12 - Head fan 2 x omega clamps, 1 x power cable 04 - 3-Pin DMX input 09 - PowerCON output 13 - Omega bracket plate & 1 x user manual 05 - 3-Pin DMX output 10 - Fuse T4A 250V 14 - Carry handles www.prolight.co.uk Kudos 350ZS User Manual...

  • Page 5: Operating Instructions

    Operating instructions Control Panel Menu: The LCD control panel situated on the front of the fixture allows the user to access the menu system to adjust the fixtures settings. When the unit has been powered on it will show “Wait...” followed by “Elumen8 Kudos 350ZS”. The fixture will then return to its home screen. To access the main menu turn the jog wheel clockwise or anti-clockwise until the menu required is highlighted. Pressing the jog wheel on one of these options allows you to access the sub menu where you can turn the jog wheel clockwise or anti-clockwise to select the option/value required. Once the option/value has been selected press the jog wheel once more to confirm the setting. There are 4 LED indicators on the front panel of the fixture: DMX - This LED indicator will flash when the unit is receiving a DMX signal. MASTER - This LED indicator will illuminate when in Master mode. SLAVE - This LED indicator will flash when in Slave mode. SOUND - This LED indicator will flash when in Sound mode. MASTER SLAVE SOUND Kudos 350ZS www.prolight.co.uk Kudos 350ZS User Manual...
  • Page 6 000-255 3: Zoom 000-255 4: Red 000-255 5: RedA 000-255 6: Green 000-255 5: Manual Control Manual Control Mode 7: GreenA 000-255 8: Blue 000-255 9: BlueA 000-255 10: White 000-255 11: Strobe 000-255 Exit Slave1 6: Slave Mode Slave Setting Slave2 7: Sound Mode Sound Mode Settings Sens 000-255 Exit 8: Pan Invert Pan Invert Setting 9: Tilt Invert Tilt Invert Setting www.prolight.co.uk Kudos 350ZS User Manual...
  • Page 7 10: DMX Fail DMX Fail Setting Show mode Manual Auto rotate Normal 11: DisplayRotate Display Rotate Setting Inverted Exit 12: Back Light Back Light Setting Adjust Exit 13: Version Version X.XX Software Version 14: Factory Sets Factory Settings 15: Reset Motor Reset 000-255 Tilt 000-255 16: Calibrations Calibration Setting Default Exit Test... 17: Auto Test Auto Test Exit Exit Exit Menu www.prolight.co.uk Kudos 350ZS User Manual...
  • Page 8 Operating instructions 8 channel mode: Channel Value Function 000-127 Pan adjustment 0-540° 128-191 Infinite pan clockwise (fast-slow) 192-255 Infinite pan anticlockwise (slow-fast) 000-127 Tilt adjustment 0-270° 128-191 Infinite tilt backwards (fast-slow) 192-255 Infinite tilt forwards (slow-fast) 000-255 Zoom (5°-60°) 000-255 Red dimmer + red backlight dimmer (0-100%) 000-255 Green dimmer + green backlight dimmer (0-100%) 000-255 Blue dimmer + blue backlight dimmer (0-100%) 000-255 White dimmer (0-100%) 000-255 Master dimmer (0-100%) www.prolight.co.uk Kudos 350ZS User Manual...
  • Page 9 208-223 Program 13 154-160 Provence 224-239 Program 14 161-167 Magical Magenta 240-255 Program 15 168-174 Bright Pink 000-255 Program speed (slow-fast) 175-181 Medium Purple 000-255 Zoom (5°-60°) 182-188 Follies Pink 000-007 No function 189-195 Bright Rose 008-027 Show 1 CH10 196-202 Magenta 028-047 Show 2 203-209 Dark Magenta 048-067 Show 3 www.prolight.co.uk Kudos 350ZS User Manual...
  • Page 10 Show 3 068-087 Show 4 088-107 Show 5 CH12 108-127 Show 6 128-147 Show 7 148-167 Show 8 168-187 Forward Facing Show 188-220 No function 221-240 Reset motors (hold for 5 seconds) 241-255 No function Red dimmer + red backlight CH13 000-255 dimmer (0-100%) Green dimmer + green backlight CH14 000-255 dimmer (0-100%) Blue dimmer + blue backlight CH15 000-255 dimmer (0-100%) CH16 000-255 White dimmer (0-100%) www.prolight.co.uk Kudos 350ZS User Manual...
  • Page 11 Jade macros 016-031 Program 1 070-076 Dark Green 032-047 Program 2 077-083 Primary Green 048-063 Program 3 084-090 Light Blue CH16 064-079 Program 4 091-097 Sky Blue 080-095 Program 5 098-104 Medium Blue 096-111 Program 6 105-111 True Blue 112-127 Program 7 112-118 Dark Steel Blue 128-143 Program 8 119-125 Double New Colour Blue www.prolight.co.uk Kudos 350ZS User Manual...
  • Page 12 108-127 Show 6 128-147 Show 7 148-167 Show 8 168-187 Forward Facing Show 188-220 No function 221-240 Reset motors (hold for 5 seconds) 241-255 No function CH20 000-255 Red backlight dimmer (0-100%) CH21 000-255 Green backlight dimmer (0-100%) CH22 000-255 Blue backlight dimmer (0-100%) CH23 000-255 Red dimmer (0-100%) CH24 000-255 Green dimmer (0-100%) CH25 000-255 Blue dimmer (0-100%) CH26 000-255 White dimmer (0-100%) www.prolight.co.uk Kudos 350ZS User Manual...

  • Page 13: Dmx Setup

    DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Note: DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Kudos 350ZS User Manual...
  • Page 14 5-pin XLR (male) 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Kudos 350ZS User Manual...

  • Page 15: Weee Notice

    WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Kudos 350ZS User Manual...
  • Page 16 Kudos 350ZS User Manual...
