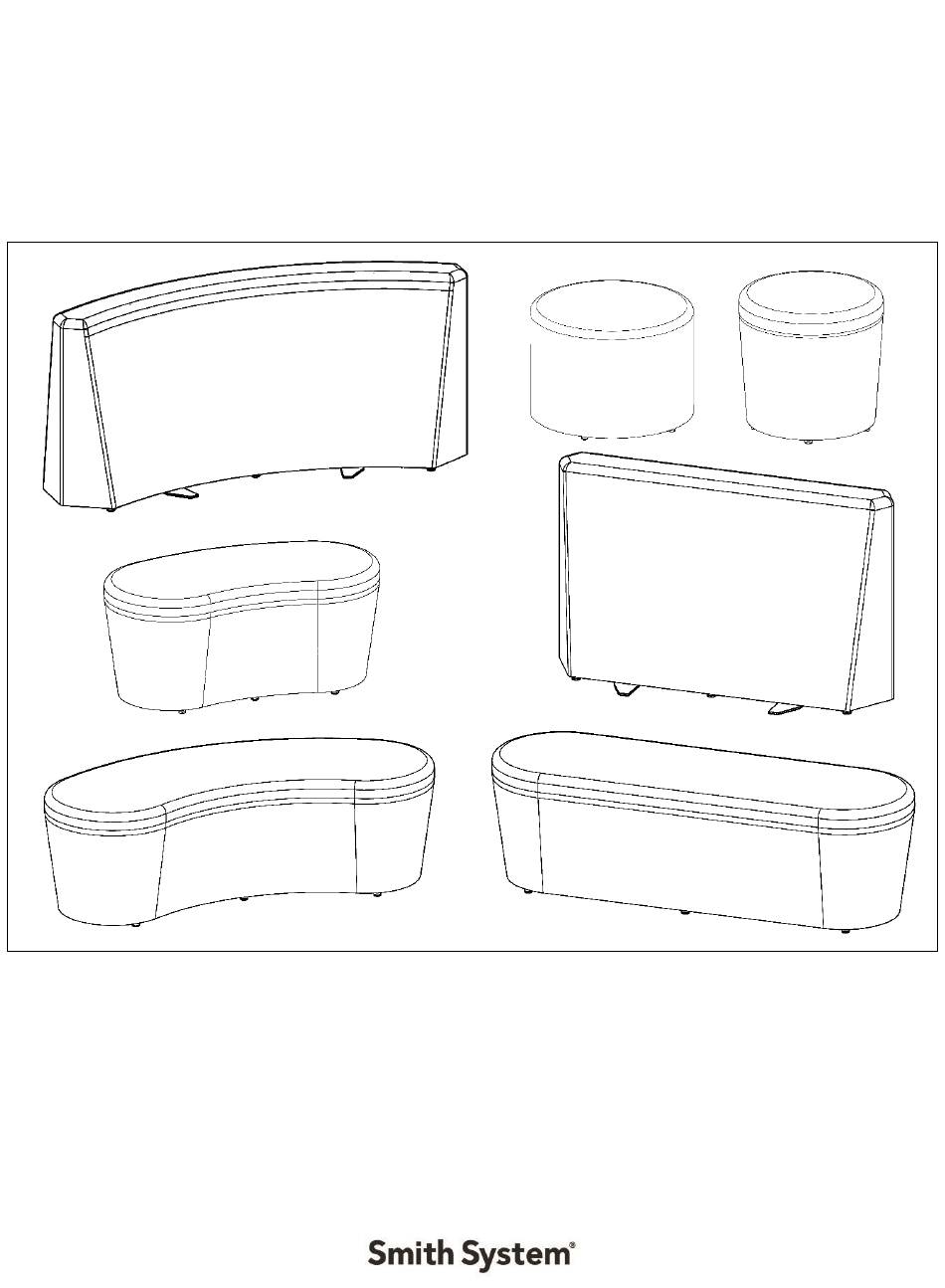

- Page 1 Assembly Instructions Flowform Soft Seating Line If you have damaged or missing components, please contact customer service at 1-800-328-1061 Document #: 179676 REVISED: 03/2023...
- Page 2 Hardware and Components (PN: 60135) (PN: 60210) NAIL IN GLIDES - NYLON TIP QTY. 6 (PN: 60217) NYLON & FELT REVERSIBLE GLIDE QTY. 6 NAIL IN GLIDES - FELT TIP QTY. 6 T25 TORX BIT #10 X 1-1/8” TORX HEAD QTY.
- Page 3 Assembly Instructions 1. Flip the soft seating unit over on to a clean smooth surface that will not harm the fabric. On the underside of the unit there are marked spots along the perimeter where the glides should be installed. Due to size, team lifting is advised. Glide Marks 2A.
- Page 4 2B. FOR SCREW IN GLIDES: The glides can be installed either as nylon or felt glides. Shown on the left is how to install the screw into the glide if you want the nylon side down, and on the right is how to install the screw if you want the felt side down. Felt Position Nylon Position SCREW IN GLIDES (Continued): Install the #10 X 1-1/8”...
- Page 5 3. FOR 26”H UNITS ONLY: All 26”H units require outriggers to be installed. Identify the 4 marks on the underside of the unit. Position outriggers as shown below and use the provided T25 Torx bit to install the #10 X 1-1/4” Torx Flat Head Wood Screws. Outrigger Marks (some units may appear different than reference picture above) 4.
- Page 6 Replacement Hardware [REPLACEMENT GLIDE PACK: 60135-R] [REPLACEMENT GLIDE PACK: 60210-R] NAIL IN GLIDES - NYLON TIP QTY. 6 NYLON & FELT REVERSIBLE GLIDE [REPLACEMENT GLIDE PACK: 60217-R] QTY. 6 NAIL IN GLIDES - FELT TIP QTY. 6 T25 TORX BIT #10 X 1-1/8”...
