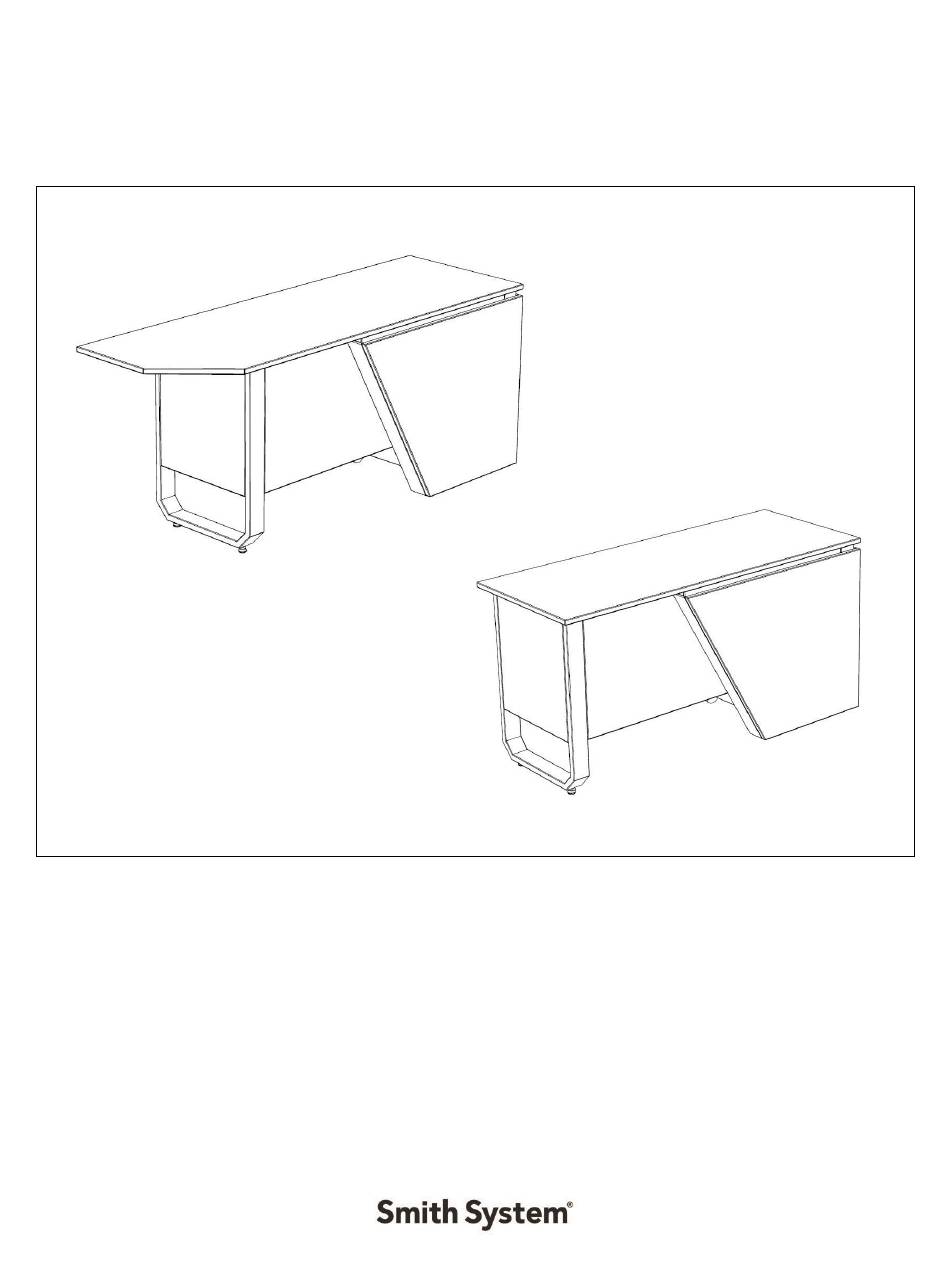

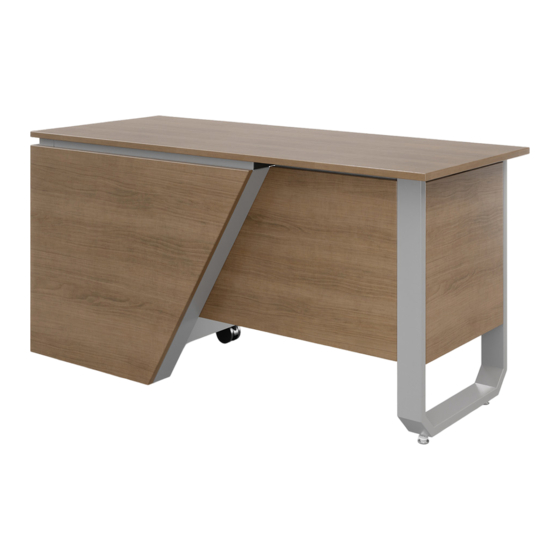

- Page 1 Assembly Instructions MOTUM TEACHERS DESK FIXED HEIGHT LEFT HAND MODEL NUMBERS 58001, 58003, 58005, AND 58007 If you have damaged or missing components, please contact customer service at 1-800-328-1061 Document #: 179717 REVISED: 10/2021...
- Page 2 Hardware and Components For 72” Models Only (58005 and 58007) REVISED: 11/2020 Document #: 179717...
- Page 3 Hardware and Components ITEM #13 – TEACHERS DESK HARDARE PACK COMPONENTS USED ON USED ON 58003 and 58007 58001 and 58005 Document #: 179717 REVISED: 11/2020...
- Page 4 Hardware and Components PANEL LETTER PART NUMBER DESCRIPTION QTY. P14400 TD STRAIGHT LEG SIDE PANEL P14399 TD U LEG SIDE PANEL P14403 TD MAIN FRONT PANEL LH P14401 TD 120 FRONT PANEL LH PANEL LETTER PART NUMBER DESCRIPTION QTY. P14390 TD 24X60"...
-
Page 5: Special Notes
Special Notes: • TOOLS REQUIRED: • Framing square. • OPTIONAL TOOLS: • Wood Clamps, ¼” bit extender • Check that all components are accounted for and undamaged before assembling. • Please assemble the product in a clean and dry area. •... - Page 6 Assembly Instructions 1. Place wood top on clean smooth surface upside down with the pilot holes facing up, fasten 2x item #7 to item A using 4x fasteners item #1 using the supplied T25 Torx bit item # 4. 2. Position Panel B as shown, centering the panel to create equal gaps, a spacer or credit card works well.
- Page 7 Assembly Instructions 3. Place wood top on clean smooth surface upside down with the pilot holes and reference lines facing up. The reference lines will be used to help align the metal components in future steps, these are only guides final locations will vary by assembly accuracy. (Panel H is used in these instruction, substitute panel H with panel E for 60”...
- Page 8 Assembly Instructions 5. Slide the previously assembled panel A onto item #3, item #7 should side over the metal lip of item #3 as shown. Do not install any fasteners at this point this board will be removed later. It it helpful to clamp panel A to item #3. 6.
- Page 9 Assembly Instructions 7. Align item #12’s edge with the reference line as shown. Item #12 should be touching Item #3 and the faces indicated below should be flush. Fasten #12 to top using 4x fastener #1. Reference line These faces should be flush Flush with #12’s edge 8.
- Page 10 Assembly Instructions 9. Align item #10’s edge with the reference line as shown. Item #10 should be touching Item #11. Fasten #10 to top using 2x fastener #1. These faces of item #10 and #11 should touch Reference line Flush with #10’s edge 10.
- Page 11 Assembly Instructions 11. Align item #9’s edge with the reference line as shown. Item #10 can be used as a spacer for panel C. Insert panel C into the slot of Item #12. Place item #9 against panel C as show. Confirm that all 3x holes on item #12 and item #9 can be seen though the slots while item #10 is in place.
- Page 12 NOT the face of the edge banding. 14-A. This step is for 58001 and 58005 only, all other models skip to step 14-B. Remove all components from inside 19179 before inverting. Remove panel A assembly and set to the side.
- Page 13 Assembly Instructions 14-B. This step is for 58003 and 58007 only. Remove all components from inside 19178 before inverting. Remove panel A assembly and set to the side. Position 19178 front face is flush with the edge of wood as shown below, allow for a small gap between the tube of item #3 and hinge.
- Page 14 Assembly Instructions 16. Replace panel A, item #10 can be used as a spacer. Confirm that panel A and D are flush, a framing square is recommended. Install 3x fastener #1 into panel A 17. Place item #14 between the bottom of 19179/19178 and the casters that came with 19179/19178. Install the 16x fasteners that came with 19179/19178.
- Page 15 #15 into panel H. Reference line 18-B. This step is for 60” Models only (58001 and 58003). The indicated face of item #10 should be flush with item #1 as shown. Install 2x fasteners #1 into panel E.
- Page 16 Assembly Instructions 19. Unlock all casters, on a soft, clean surface flip the desk on its front face as shown. 20. Flip desk onto casters as shown. Document #: 179717 REVISED: 11/2021...
