SMITH SYSTEM Planner Studio Assembly Instructions Manual

Adjustable height tables

Advertisement

Quick Links

Assembly Instructions
Planner Studio
Adjustable Height Tables
If you have damaged or missing components,
please contact customer service at 1-800-328-1061
Document #: 179679
REVISED: 01/2020

Advertisement

loading
Need help?

Need help?

Do you have a question about the Planner Studio and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SMITH SYSTEM Planner Studio

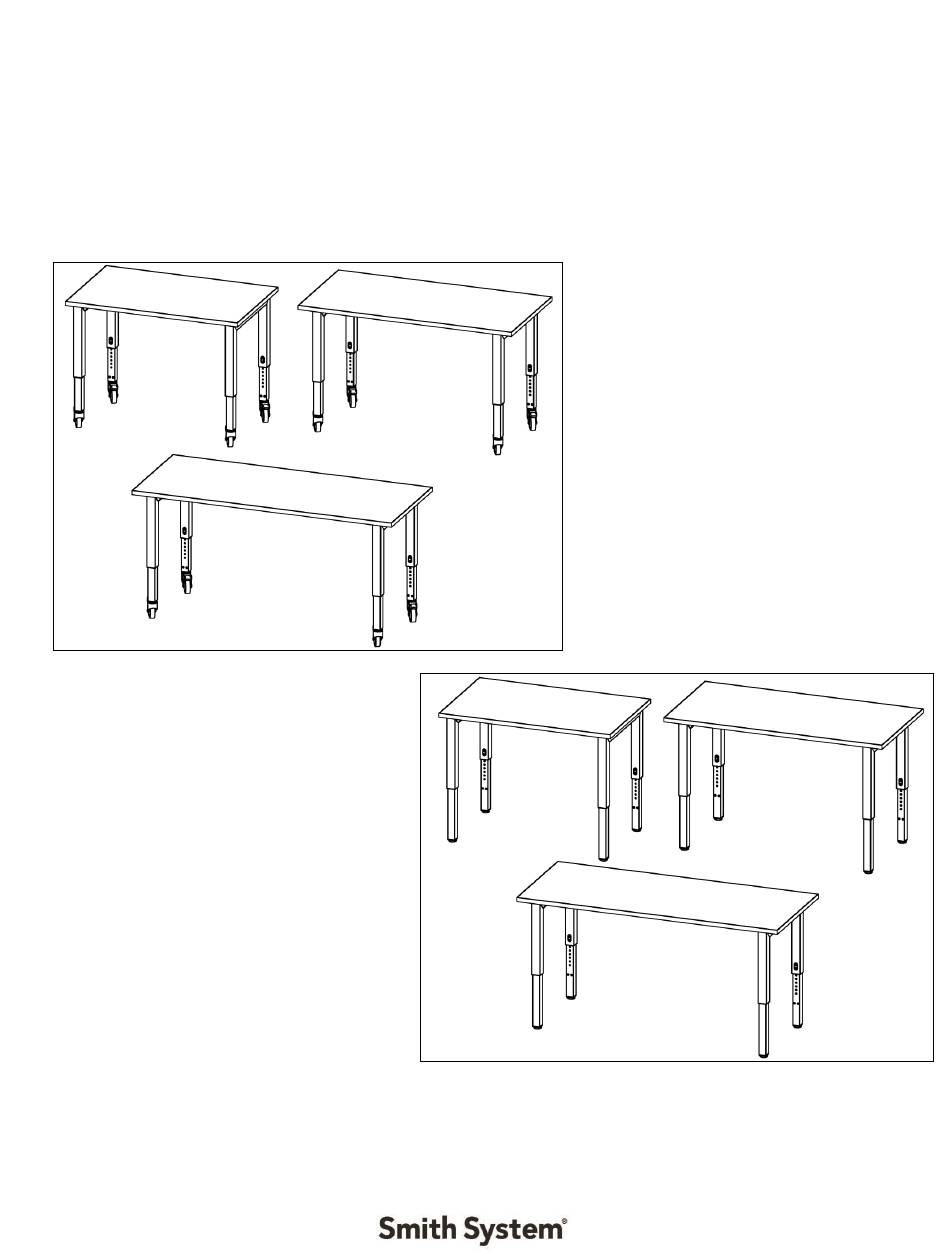

  • Page 1 Assembly Instructions Planner Studio Adjustable Height Tables If you have damaged or missing components, please contact customer service at 1-800-328-1061 Document #: 179679 REVISED: 01/2020...
  • Page 2 Hardware and Components PLANNER STUDIO TOP QTY. 1 PLANNER STUDIO SUPPORT CHANNEL QTY. 1 PLANNER STUDIO LEG BASE QTY. 2 1/4”-20 X 3” BOLT 1/4”-20 LOCK NUT #10 X 3/4” WOOD SCREW QTY. 6 QTY. 6 QTY. 28 3/8”-16 X 5/8” SET SCREW 3/16”...
  • Page 3: Special Notes

    Special Notes: • TOOLS REQUIRED: • Drill w/#2 phillips driver bit, or #2 phillips head screwdriver. • 7/16” socket & ratchet, or 7/16” wrench. • Check that all components are accounted for and undamaged before assembling. • Please assemble the product in a clean and dry area. •...
  • Page 4 Assembly Instructions 1. Lay top down on a clean smooth surface that will not harm the top finish. Underside of top should be exposed. Top is heavy, team lifting is advised. 2. Position the support channel(s) onto the top, as shown. Do not attach support channel to top yet.
  • Page 5 3. Attach the now assembled frame to the wood top using #10 x 3/4” wood screws. Hole pattern on underside of top serves as a guide for proper positioning. 4. CASTER / GLIDE INSTALLATION a. GLIDES - Install adjustable legs into leg base, place at desired height and then lock in place using 3/8”-16 x 5/8”...
  • Page 6 4. CASTER / GLIDE INSTALLATION (continued) b. CASTERS - Step 1: Install adjustable legs into leg base, place at desired height and then lock in place using 3/8”-16 x 5/8” set screws. CASTERS - Step 2: Install casters using the caster wrench provided. Hand tighten until very snug.
  • Page 7 5. With a partner, team lift table and flip to the upright position. Helpful Hint: Lock all casters to prevent unexpected rolling when table legs touch down. …TABLE WITH GLIDES …TABLE WITH CASTERS ASSEMBLY COMPLETE Document #: 179679 REVISED: 01/2020...
