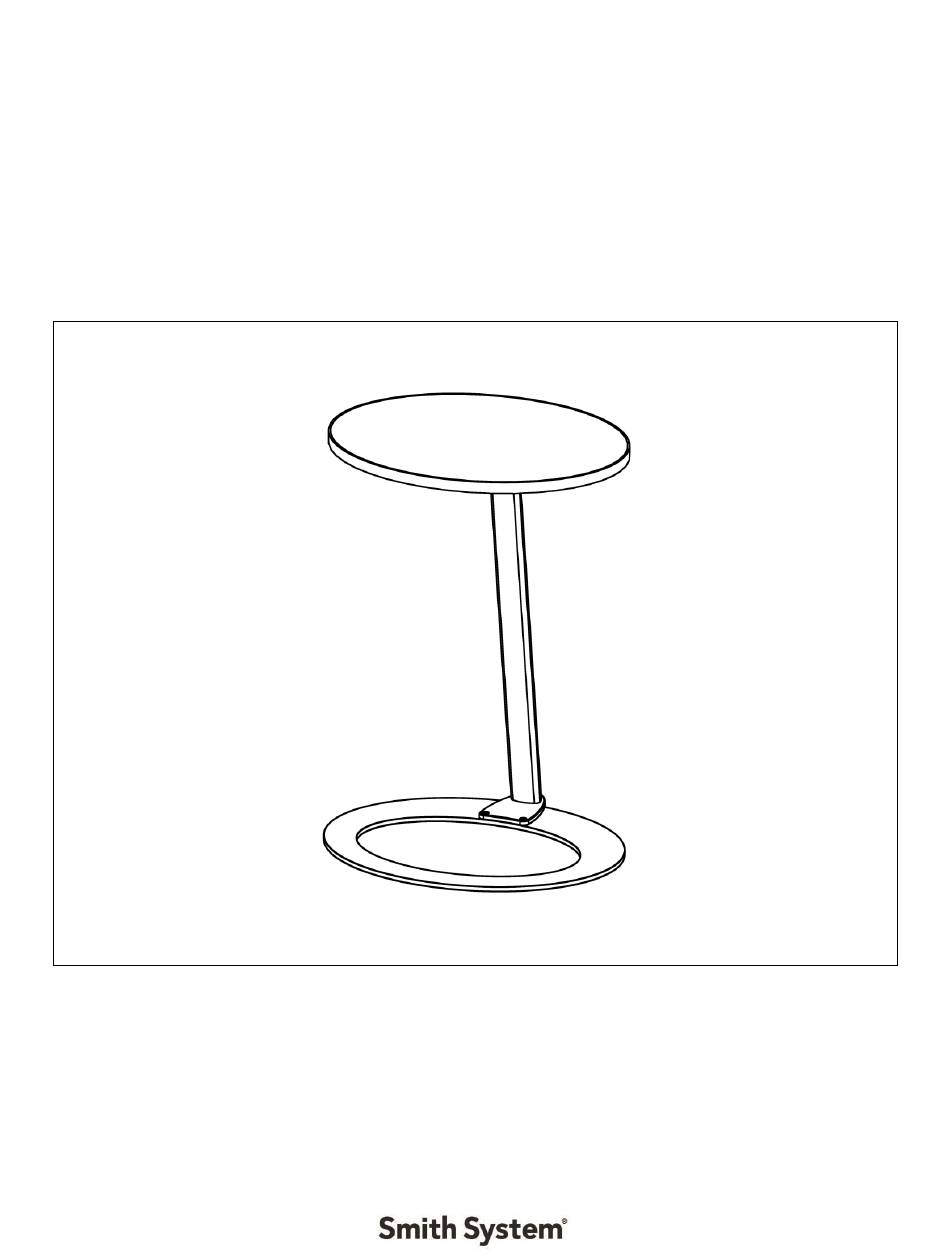

- Page 1 Assembly Instructions Flowform Pedestal Table If you have damaged or missing components, please contact customer service at 1-800-328-1061 Document #: 179688 REVISED: 10/2020...
- Page 2 Hardware and Components PEDESTAL TOP (PN: 70017) QTY. 1 PEDESTAL COLUMN (PN: 60015) QTY. 1 PEDESTAL TOP MOUNT (PN: 60014) QTY. 2 PEDESTAL BASE (PN: 60014) QTY. 1 PEDESTAL FELT (PN: 60016) QTY. 1 1/8” ALLEN WRENCH QTY. 1 #10 X 5/8” FLAT-HEAD 5/16”-18 X 3/4”...
-
Page 3: Special Notes
Special Notes: • TOOLS REQUIRED: • Drill w/#2 Phillips driver bit, or #2 Phillips head screwdriver. • OPTIONAL TOOLS: • Drill w/#3 Phillips driver bit, or #3 Phillips head screwdriver. • Check that all components are accounted for and undamaged before assembling. •... - Page 4 Assembly Instructions 1. Place column standing up on a clean smooth surface that will not harm the paint finish. The column should be in this position. BOTTOM (ON FLOOR) 2. Position the top mount plate onto the top of the column as shown, lining up the three screw holes.
- Page 5 3. Flip the column over so that it is resting on the top mount plate. 4. OPTIONAL: Place base with bottom side facing up (this side has a large hole with countersink for the 5/16”-18 x 3/4” Flat-Head Bolt. Peel off paper backing to felt and attach the felt to the bottom side of the base.
- Page 6 5. Position the base onto the bottom of the column as shown, lining up the three screw holes. First, install the 5/16”-18 x 3/4” Flat-Head Bolt into the base and the bottom of the column, but do not fully tighten it yet. Then install the two #10-32 x 1/2” Flat-Head Bolts from the underside of the column to the base.
- Page 7 7. Flip table over. ASSEMBLY COMPLETE Document #: 179688 REVISED: 10/2020...
