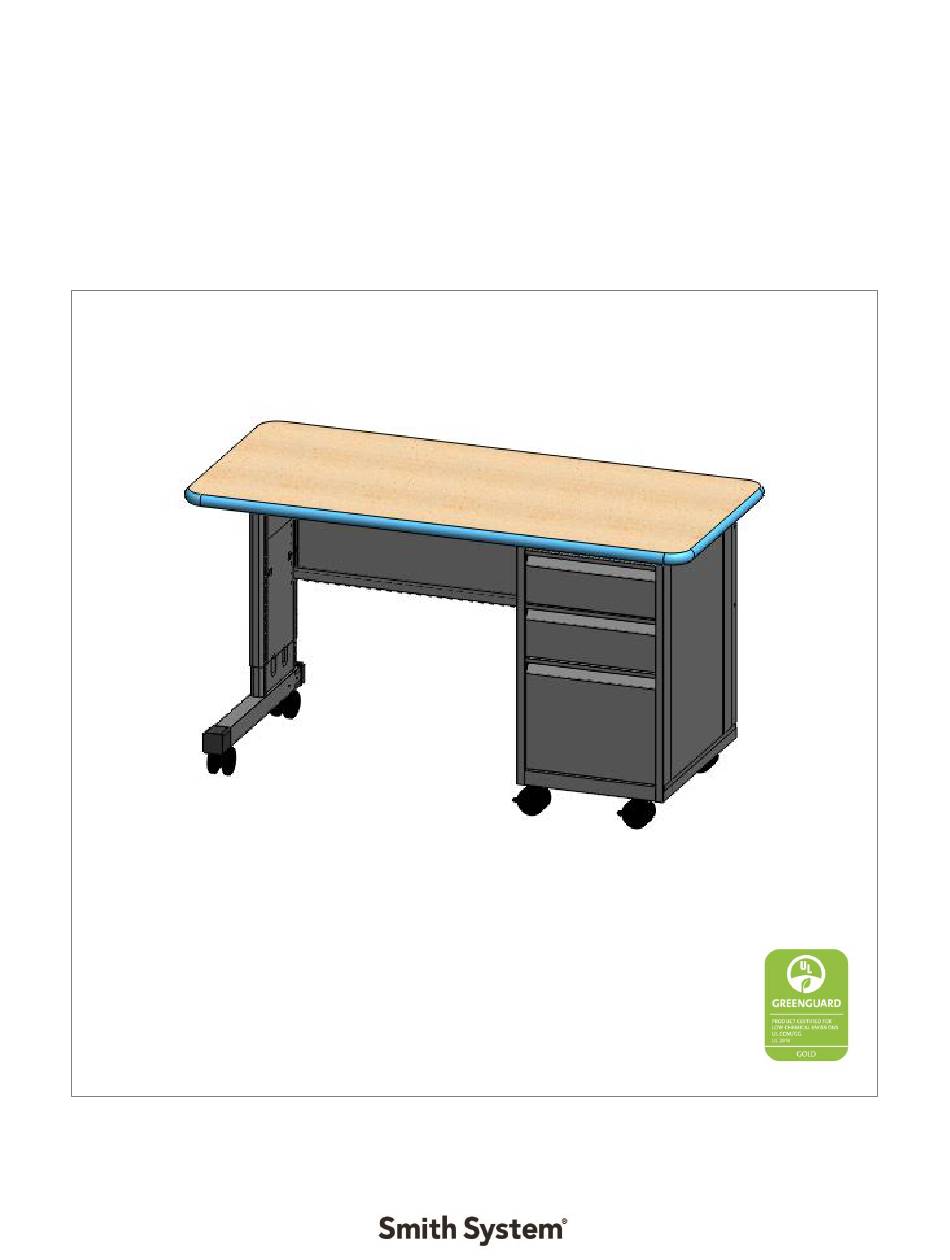

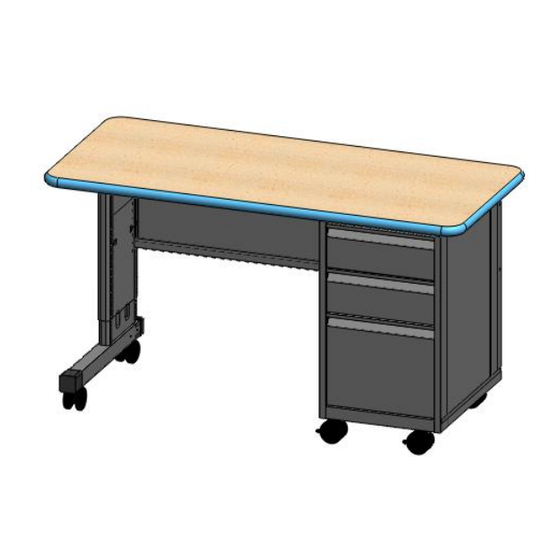

- Page 1 Assembly Instructions Cascade® Single Ped Teacher Desk If you have damaged or missing components, Please contact customer service at 1-800-328-1061 Form# 179953A 08/2017...
- Page 2 Hardware and Components #10 Wood Screws ¼-20X1/2” Machine Screws 3” Dual Wheel Caster Pack (Qty. 16)* (Qty. 8) (Qty. 2 casters, ½ pack) P/N-70054 P/N- 77471 P/N-17553 Acrobat Leg (Qty. 1 Leg) (Right or Left) Table Top Modesty (Qty. 1) Panel (Qty.
- Page 3 Assembly Instructions Step 1: Lay the top upside down, with the cut of the T-mold at the back and make sure the Laminate is Face Down and the pre-drilled holes are facing upwards. Line up the Cascade Teacher Desk Leg with the predrilled holes, and attach it to the top with the supplied wood screws.
- Page 4 Step 3A: (If your Ped is a Box Box File): Place the Box Box File (BBF) upside down on the table top opposite the leg. Align the Modesty Panel with the two holes on the BBF and the leg, attach to the BBF and the leg using (4) ¼-20 Machine Screws.
- Page 5 Step 4: Attach the Cascade Ped and modesty panel to the table top using the supplied wood screws. Hole placement for the Peds are shown in the previous step. Step 5: Attach the plate casters to the cabinet using the supplied screws. Next, attach the stem casters to the single leg.
