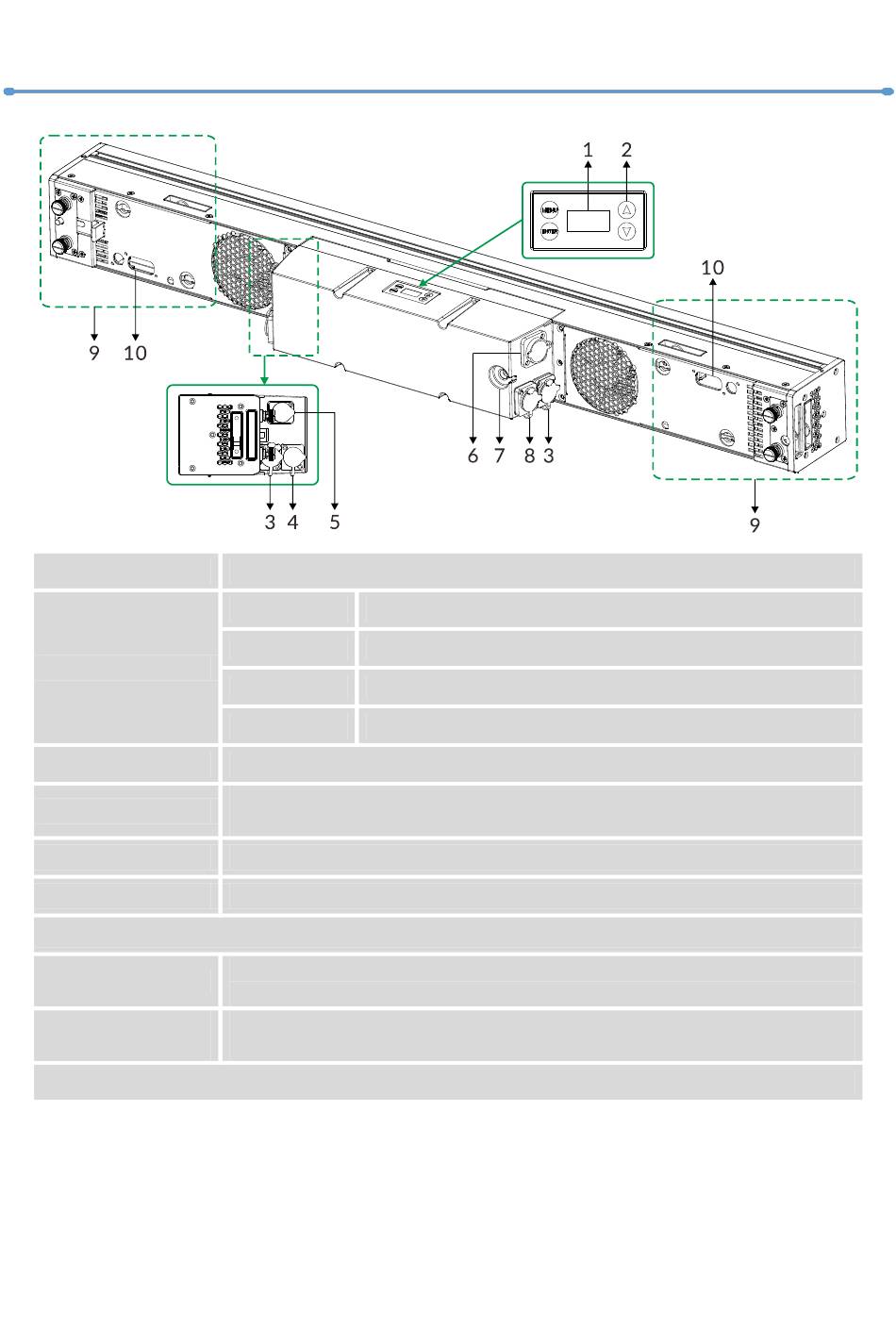

03/ Control Panel - ACME BLINDER LINE 10 IP User Manual

1. Display
2. Buttons
3. ETHERNET
4. DMX IN
5. POWER IN
6. POWER OUT
7. RELEASE VALVE
8. DMX OUT
9. COUPLER
MECHANISM
10. SAFETY CABLE ATTACHMENT POINTS

03/ Control Panel

To show the various menus and the selected function
MENU To enter into move backward or leave the menu
 UP To go backward to move up in the menu
 DOWN To go forward to move down in the menu
ENTER To perform the desired functions
Transfers fixture's information to a main controller
For DMX512 link, use 5-pin XLR cable to link the unit and DMX
controller to input DMX signal (3-pin XLR cable is optional)
To connect to supply power
To connect to the next fixture
For DMX512 link, use 5-pin XLR cable to link the next units to
output DMX signal (3-pin XLR cable is optional)
The coupler mechanism makes it possible to quickly connect and
align two or a long line of fixtures together
- 8 -
