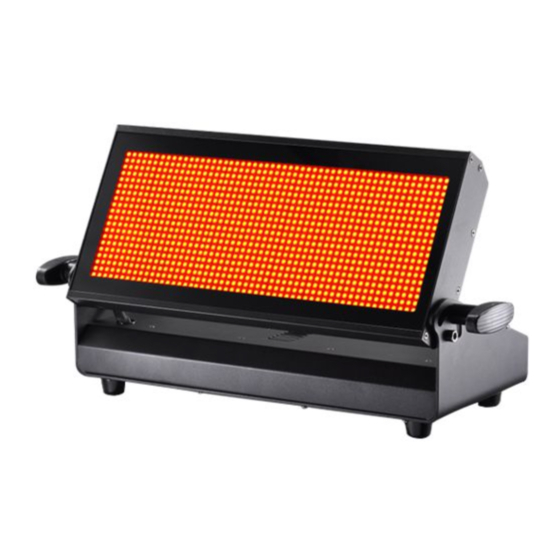

ACME Stage Panel 1080 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

LP-1080
User Manual
Please read the instruc on carefully before use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stage Panel 1080 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ACME Stage Panel 1080

Summary of Contents for ACME Stage Panel 1080

  • Page 1 LP-1080 User Manual Please read the instruc on carefully before use...

  • Page 2: Table Of Contents

    CONTENTS 1. Safety Instruction ..........................2 2. Technical Specification ........................3 3. How To Set The Unit ........................4 3.1 Control panel ..........................4 3.2 Main Function ..........................5 4. How To Control The Unit ......................10 4.1 Master/Slave Function ......................10 4.2 DMX Controller ........................

  • Page 3: Safety Instruction

    1. Safety Instruction Please read carefully this instruction, which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. ...

  • Page 4: Technical Specification

    Warning:  To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture.  DO NOT open the unit within five minutes after switching off.  The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged. If using a 230V 50Hz power supply, DO NOT connect in series more than 3 units;...

  • Page 5: How To Set The Unit

     Voltage： AC 100-240V, 50/60Hz  Power Consumption： 247W  LED: 1080pcs SMD RGB(Tri-color) LEDs  Fuse: T 6.3A  Dimension： 515 x 225 x 142mm  Weight： 8.9Kgs 3. How To Set The Unit 3.1 Control panel ○ Display: To show the various menus and the selected functions ○...

  • Page 6: Main Function

    ○ Button: MENU To select the programming functions DOWN To go backward in the selected functions To go forward in the selected functions ENTER To confirm the selected functions ○ Fuse(T 6.3A): Protect the fixture from the damage of over-current. ○...
  • Page 8 DMX 512 Address Setting Press the MENU button up until is shown on the display. Pressing the ENTER button and the display will blink. Use the DOWN and the UP button to change the DMX 512 Address. Once the address has been selected, press the ENTER button to setup or automatically exit menu mode without any change after 8 seconds.
  • Page 9 Color Mode Press the MENU button up until is shown on the display. Pressing the ENTER button and the display will blink. Use the DOWN and the UP button to select (Color Jump) or (Color Fade). Once selected, press the ENTER button to setup or automatically exit menu mode without any change after 8 seconds.
  • Page 10 LED Display Press the MENU button up until is shown on the display. Pressing the ENTER button and the display will blink. Use the DOWN and the UP button to select (LED on) or (LED off). Once selected, press the ENTER button to setup or automatically exit menu mode without any change after 8 seconds.

  • Page 11: How To Control The Unit

    Software Version Press the MENU button up until is shown on the display. Pressing the ENTER button and the display will show the version of software of the unit. Back to the previous functions without any change press the MENU button. 4.

  • Page 12: Dmx512 Configuration

    If you use please refer to the following diagram to address your DMX512 channel for the first 4 fixtures. 5. DMX512 Configuration Mode1/2/3/4:...
  • Page 13 Mode 5/6/7: Mode 5 Green Blue Dimmer Colour Strobe 248-255 Colour32 240-247 Colour31 232-239 Colour30 100% 100% 100% 100% 224-231 Colour29 217-223 Colour28 209-216 Colour27 201-208 Colour26 194-200 Colour25 186-193 Colour24 178-185 Colour23 182-189 170-177 Colour22 163-169 Colour21 155-162 Colour20 147-154 Colour19 140-146 Colour18 132-139 Colour17...

  • Page 14: Dmx512 Connection

    6. DMX512 Connection The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels. COMMON DMX + DMX INPUT DMX OUTPUT DMX - Termination reduces signal errors and to avoid signal transmission problems and interference. It is always advisable to connect a DMX terminal.

  • Page 15: Troubleshooting

    7. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The fixture does not work, no light 1. Check the connection of power and main fuse. 2. Measure the mains voltage on the main connector. B.

  • Page 16: Fixture Cleaning

    8. Fixture Cleaning The cleaning of internal must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the fixture’s optics. ...
  • Page 19 Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55103-1: 2009 ; EN55103-2: 2009; EN62471: 2008; EN61000-3-2: 2006 + A1:2009 + A2:2009; EN61000-3-3: 2008. &...
  • Page 20 Innovation, Quality, Performance...
