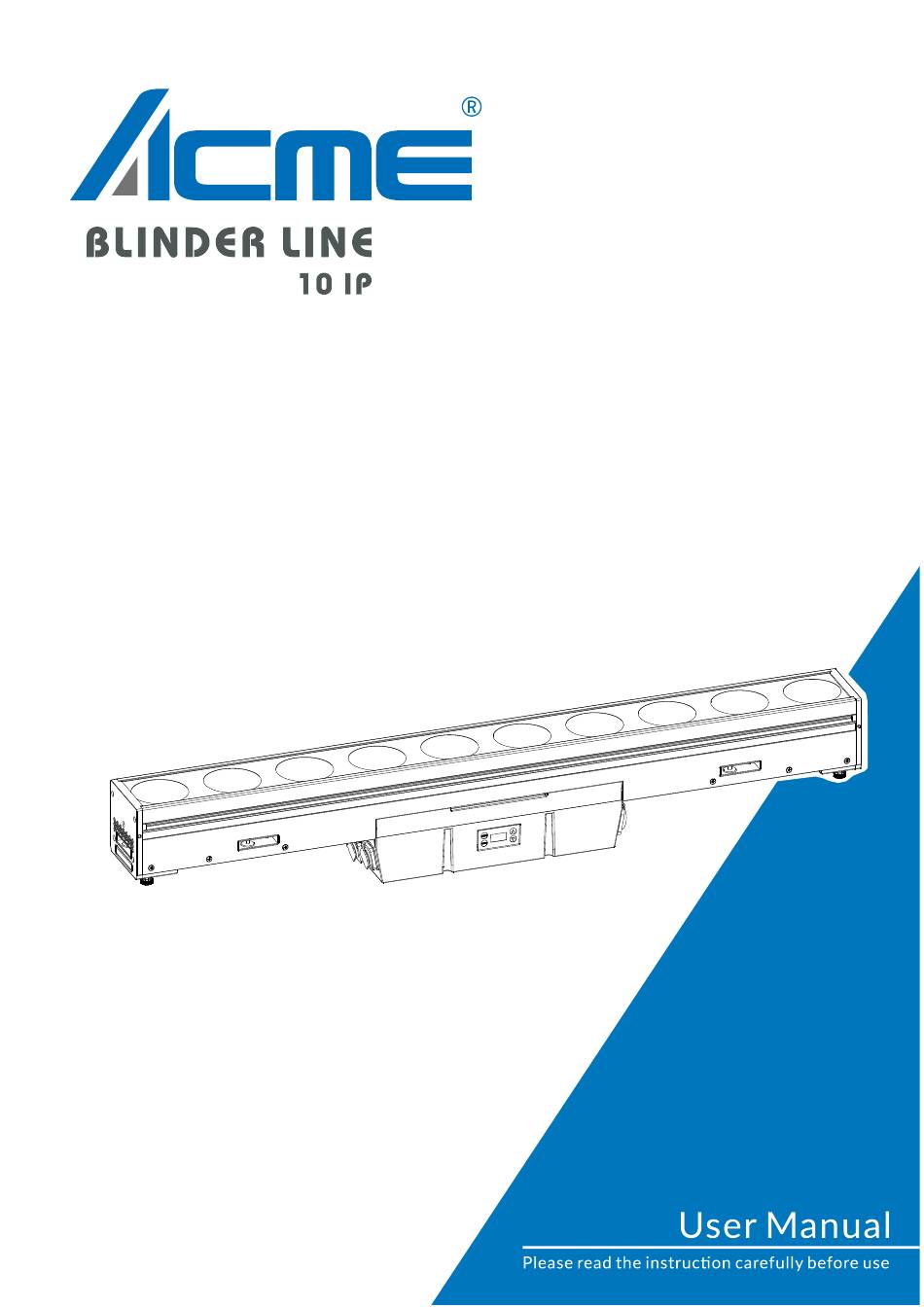

ACME BLINDER LINE 10 IP User Manual

Hide thumbs Also See for BLINDER LINE 10 IP:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the BLINDER LINE 10 IP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ACME BLINDER LINE 10 IP

Summary of Contents for ACME BLINDER LINE 10 IP

  • Page 2 REV F 10/28/2024 CONTENTS 01/ Safety Information ....................2 02/ Technical Specifications ..................6 03/ Overview ........................8 04/ Connecting Power and Data ................9 4.1 Connecting Power ................... 9 4.2 Connecting Data.................... 10 05/ Fixture Installation ....................11 5.1 Stand the Fixture on the Floor ..............12 5.2 Hanging the Fixture ..................
  • Page 3 REV F 10/28/2024 01/ Safety Information Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4 REV F 10/28/2024 Avoid any flammable liquids, water or metal from entering the unit. Once it happens, cut  off the mains power immediately. DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.  DO NOT touch any wire during operation as there might be a hazard of electric shock. ...
  • Page 5 REV F 10/28/2024 01/ Consignes de sécurité Veuillez lire attentivement les instructions qui contiennent des informations importantes sur l'installation, l'utilisation et l'entretien. ATTENTION Veuillez conserver ce guide de l'utilisateur pour une consultation future. Si vous vendez l'appareil à un autre utilisateur, assurez-vous qu'il reçoive également ce manuel d'instructions.
  • Page 6 REV F 10/28/2024 Assurez-vous que le cordon d'alimentation n'est pas pincé ou endommagé; remplacez-le  immédiatement s'il est endommagé. La température de surface de l'unité peut atteindre 70℃. NE PAS toucher les capots à  mains nues pendant son fonctionnement. Évitez que des liquides inflammables, de l'eau ou du métal ne pénètrent dans l'appareil.
  • Page 7 REV F 10/28/2024 Les sources externes de rayons lumineux provenant de la lumière directe du soleil ou de  toute autre source de lumière forte, qui pénètrent la lentille avant des appareils d'éclairage, peuvent causer de graves dommages internes. N'exposez PAS la lentille frontale du projecteur à...
  • Page 8 REV F 10/28/2024 Outstanding color mixing Tungsten emulation during dimming Equipped with an inventive quick-release mechanism that allows you to quickly connect and align multiple fixtures Power Cable Included Items Two omega brackets User Manual (this document) Dimensions 1000x103.3x160.3mm 39.4"x4.1"x6.3" Weight 13.7 kg 30.2 lbs...
  • Page 9 REV F 10/28/2024 03/ Overview 1. Display To show the various menus and the selected function MENU To enter into move backward or leave the menu  UP To go backward to move up in the menu 2. Buttons  DOWN To go forward to move down in the menu ENTER To perform the desired functions...
  • Page 10 REV F 10/28/2024 04/ Connecting Power and Data 4.1 Connecting Power This fixture can operate on any 100-240Vac; 50/60Hz AC mains power supply. The maximum power consumption is 600W. The fixture must be grounded/earthed and able to be isolated from AC power. The AC power supply must incorporate a fuse or circuit breaker for fault protection.
  • Page 11 REV F 10/28/2024 4.2 Connecting Data The fixture is equipped with 5-pin (or 3-pin) XLR sockets for DMX input and output. Use a high-quality DMX cable designed for RS-485 and 5-pin (or 3-pin) XLR-plugs and connectors in order to connect the controller with the fixture or one fixture with another. For outdoor installations, use only IP-rated XLR connectors suitable for outdoor use.
  • Page 12 REV F 10/28/2024 05/ Fixture Installation The fixture is IP66-rated and designed for both indoor and outdoor events. This means that it is protected from:  Dust, to the degree that dust cannot enter the device in sufficient quantities as to interfere with its operation.
  • Page 13 REV F 10/28/2024 5.1 Stand the Fixture on the Floor Floor Stand 1: Two floor brackets (sold separately) may be attached to base of unit: - 12 -...
  • Page 14 REV F 10/28/2024 Floor Stand 2: Utilizing two omega brackets (supplied) and two floor brackets (sold separately): - 13 -...
  • Page 15 REV F 10/28/2024 Vertical Stand: Mounted to floor stand (sold separately): Note: stand single unit vertically, no other fixtures may be connected. A. Press the button: automatically the slide comes out completely. B. Place the fixture against the floor stand in line so that the slide fits into the floor stand. C.
  • Page 16 REV F 10/28/2024 5.2 Hanging the Fixture Horizontal: Utilizing two omega brackets (supplied) and clamps (by others): Note: a maximum of 5 fixtures may be connected. - 15 -...
  • Page 17 REV F 10/28/2024 Vertical: Using one hanging bracket (sold separately) with clamp (by others): Note: a maximum of 3 fixtures may be connected. A. Press the button: automatically the slide comes out completely. B. Place the hanging bracket with clamp against the fixture in line so that the slide fits into the hanging bracket.
  • Page 18 REV F 10/28/2024 5.3 Connecting and Aligning Multiple Fixtures Connecting and aligning fixtures horizontally: Note: When hanging horizontally, there is no limit to the number of fixtures that can be connected. When hanging vertically, a maximum of 3 fixtures may be connected. A.
  • Page 19 REV F 10/28/2024 C. Insert the hex wrench into the hexagonal slot and tighten it clockwise to release and secure the locking mechanism inside the fixture with the other fixture. D. Finally, tighten the four rivet screws to secure both fixtures. If you need to connect and align more fixtures, repeat the steps above.
  • Page 20 REV F 10/28/2024 Connecting and aligning fixtures vertically: Note: a maximum of 5 fixtures may be connected. A. Place both fixtures against each other in line. B. Insert the hex wrench into the hexagonal slots and tighten them clockwise to release and secure the locking mechanisms inside the fixture with the other fixture.
  • Page 21 REV F 10/28/2024 06/ Operation 6.1 Control Menu  To access the control menus, press the [MENU] button.  Navigate the menu structure, using the [ENTER], [ UP] and [ DOWN] buttons.  To select a menu option or to confirm a selection, press the [ENTER] button. ...
  • Page 22 REV F 10/28/2024 MAIN MENU SUBMENU CHOICES/VALUES Linear Square Law Dimmer Curve Inv SQ Law S Curve Smooth Dimmer Speed Fast Tungsten 125-255 Green 125-255 Blue 125-255 Red 1 125-255 Green 1 125-255 White Balance Blue 1 125-255 …… …… Red 10 125-255 Green 10...
  • Page 23 REV F 10/28/2024 MAIN MENU SUBMENU CHOICES/VALUES Display Invert °C Display Settings Temperature Unit °F English Language Chinese Single Auto Test Cycle Mode 1 Mode 2 Clear No/Yes Clear No/Yes Frost 0-255 Frost 0-255 Strobe 0-255 Strobe 0-255 Dimmer 0-255 Dimmer 0-255 White...
  • Page 24 REV F 10/28/2024 MAIN MENU SUBMENU CHOICES/VALUES Factory Restore DMX Settings Enter the control menu and select DMX Settings, press ENTER. Use the UP/DOWN button to select DMX Address, DMX CH Mode, No DMX Status, View DMX Value, Connect Option, Network, Art-Net Settings, sACN Settings or Network to DMX.
  • Page 25 REV F 10/28/2024 No DMX Status Select No DMX Status, press ENTER. Use UP/DOWN button to select one of the following status: Blackout (Fixture blacks out if DMX signal stops) Hold (The device continues to operate in the current mode with the last active DMX values until the signal returns) Manual (The device accepts the DMX value stored in the ‘Manual Test’...
  • Page 26 REV F 10/28/2024 sACN Settings Select sACN Settings, press ENTER. Use UP/DOWN button to select Universe or Priority, confirm your selection with ENTER. To exit the menu, press MENU, or wait 30 seconds. Network to DMX Select Network to DMX, press ENTER. Use UP/DOWN button to select Off or On, confirm your selection with ENTER.
  • Page 27 REV F 10/28/2024 Dimmer Speed Select Dimmer Speed, press ENTER. Use UP/DOWN button to select Smooth, Fast or Tungsten, confirm your selection with ENTER. To exit the menu, press MENU, or wait 30 seconds. White Balance Select White Balance, press ENTER. Use UP/DOWN button to select Red, Green, Blue, Red 1, Green 1, Blue 1……...
  • Page 28 REV F 10/28/2024 Dim. Start Mode Select Dim. Start Mode, press ENTER. Use UP/DOWN button to select High (high dimming start) or Low (low dimming start), confirm your selection with ENTER. To exit the menu, press MENU, or wait 30 seconds. Display Settings Enter the control menu and select Display Settings, press ENTER.
  • Page 29 REV F 10/28/2024 Auto Test Select Auto Test, press ENTER. Use UP/DOWN button to select Single (the device immediately performs a single automatic self-test) or Cycle (the device immediately performs a cyclic automatic self-test), confirm your selection with ENTER. To exit the menu, press MENU. Manual Test Select Manual Test, press ENTER.
  • Page 30 REV F 10/28/2024 Information Enter the control menu and select Information, press ENTER. Use the UP/DOWN button to select Fixture Use Hour, LED Use Hour, Temperature, Fan State, Firmware Version, RDM UID or Error Logs. Fixture Use Hour Select Fixture Use Hour, press ENTER. The operating hours is displayed.
  • Page 31 REV F 10/28/2024 Firmware Version Select Firmware Version, press ENTER. The firmware version is displayed. To exit the menu, press MENU, or wait 30 seconds. RDM UID Select RDM UID, press ENTER. The RDM UID is displayed. To exit the menu, press MENU, or wait 30 seconds. Error Logs Select Error Logs, press ENTER.
  • Page 32 REV F 10/28/2024 RDM functions: Certain menus of the device and functions can be called up via the RDM protocol. The parameter IDs are implemented as follows for different commands: Command Command Command Parameter ID ‘Discovery’ ‘Set’ ‘Get’ DISC_UNIQUE_BRANCH √ DISC_MUTE √...
  • Page 33 REV F 10/28/2024 6.2 Home Position Adjustment  To access the control menus, press the [MENU] button.  To access the offset menus, long-press the [ENTER] button.  Navigate the offset menus, using the [ENTER], [ UP] and [ DOWN] buttons. ...
  • Page 34 REV F 10/28/2024 Frequency Select Frequency, press ENTER. Use UP/DOWN button to select a value, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. Frequency VALUES 900Hz 772~1027 1000Hz 872~1127 1100Hz 972~1227 1200Hz 1072~1327 1300Hz 1172~1427...
  • Page 35 REV F 10/28/2024 Green Select Green, press ENTER. Use UP/DOWN button to select a value between -128 and 127, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. Blue Select Blue, press ENTER. Use UP/DOWN button to select a value between -128 and 127, confirm your selection with ENTER.
  • Page 36 REV F 10/28/2024 Blue 1 Select Blue 1, press ENTER. Use UP/DOWN button to select a value between -128 and 127, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. Amber 1 Select Amber 1, press ENTER. Use UP/DOWN button to select a value between -128 and 127, confirm your selection with ENTER.
  • Page 37 REV F 10/28/2024 Blue 10 Select Blue 10, press ENTER. Use UP/DOWN button to select a value between -128 and 127, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. Amber 10 Select Amber 10, press ENTER. Use UP/DOWN button to select a value between -128 and 127, confirm your selection with ENTER.
  • Page 38 REV F 10/28/2024 See the chart below for more details: Unit 1 Unit 2 Unit 3 Unit 4 Unit xxx Channel Mode Address Address Address Address Address 14 channels …… 55 channels …… 7.2 DMX Protocol CHANNEL VALUE FUNCTION 14ch 55ch SPECIAL FUNCTION (To activate following functions,...
  • Page 39 REV F 10/28/2024 210-219 Invert Pixel: No 220-229 Invert Pixel: Yes Dimming Start Mode: High Dimming Start Mode: Low 232-255 Null FROST 000-042 Null 043-085 Frost 1 086-127 Frost 2 128-255 0%100% STROBE 000-007 Close 008-015 Open 016-131 Strobe from Slow to Fast 132-139 Open 140-181...
  • Page 40 REV F 10/28/2024 046-049 7000K 050-054 6900K 055-058 6800K 059-063 6700K 064-067 6600K 068-072 6500K 073-076 6400K 077-081 6300K 082-085 6200K 086-090 6100K 091-094 6000K 095-099 5900K 100-103 5800K 104-108 5700K 109-112 5600K 113-117 5500K 118-121 5400K 122-126 5300K 127-130 5200K 131-135 5100K...
  • Page 41 REV F 10/28/2024 000-009 Null 010-016 LEE 790 – Moroccan Pink 017-023 LEE 157 – Pink 024-030 LEE 332 – Special Rose Pink 031-037 LEE 328 – Follies Pink 038-044 LEE 345 – Fuchsia Pink 045-051 LEE 194 – Surprise Pink 052-058 LEE 181 –...
  • Page 42 REV F 10/28/2024 192-207 Built-in Effect 12 208-223 Built-in Effect 13 224-239 Built-in Effect 14 240-255 Built-in Effect 15 MACRO EFFECT SPEED Null 001-127 Slow to Fast without Fade 128-255 Slow to Fast with Fade WHITE 1 000-255 0%100% RED 1 000-255 0%100% GREEN 1...
  • Page 43 REV F 10/28/2024 BLUE 4 000-255 0%100% AMBER 4 0%100% 000-255 WHITE 5 000-255 0%100% RED 5 000-255 0%100% GREEN 5 000-255 0%100% BLUE 5 000-255 0%100% AMBER 5 0%100% 000-255 WHITE 6 000-255 0%100% RED 6 000-255 0%100% GREEN 6 000-255 0%100% BLUE 6...
  • Page 44 REV F 10/28/2024 WHITE 9 000-255 0%100% RED 9 0%100% 000-255 GREEN 9 000-255 0%100% BLUE 9 000-255 0%100% AMBER 9 000-255 0%100% WHITE 10 000-255 0%100% RED 10 0%100% 000-255 GREEN 10 000-255 0%100% BLUE 10 000-255 0%100% AMBER 10 000-255 0%100% - 43 -...
  • Page 45 REV F 10/28/2024 08/ Error Information Error codes are shown continuously in the display when the fixture fails and they will not disappear until the fixture is repaired. CPU-B/C/D Error Check whether the 485 (DATA) leads on the PCB board are installed in place or disconnected.
  • Page 46 REV F 10/28/2024 Head Fan 1/2 Start Err Check whether the fan is not running. Check whether the fan leads are installed in place or disconnected. Check whether the fan is damaged. Check whether there are obstacles in the fan operating range. Position of cooling fans: Cooling Fans Part Number...
  • Page 47 REV F 10/28/2024 09/ Troubleshooting Problem Potential cause(s) Remedies Confirm that the power is switched No power to the fixture. Fixture does not respond on and cables are plugged in. or appears to be off. No output from PSU. Replace the PSU. Fixture suddenly turned Check the power supply, switches Power was turned off.
  • Page 48 REV F 10/28/2024 10/ Fixture Cleaning Regular cleaning is very important for fixture life and performance. Buildup of dust, dirt, smoke particles, fog fluid residues, etc. degrades the fixture’s light output and cooling ability. Cleaning schedules for lighting fixtures vary greatly depending on the operating environment. It is therefore impossible to specify precise cleaning intervals for the fixture.
  • Page 49 REV F 10/28/2024 11/ Approvals and Certifications This product has been tested and found to comply with the following standards: - 2014/30/EU - Electromagnetic Compatibility (EMC) - 2014/35/EU - Low Voltage Directive (LVD) - cETLus Approved (Control #5000057) - UK SI 2016 No. 1091: Electromagnetic Compatibility Regulations 2016 - UK SI 2016 No.
