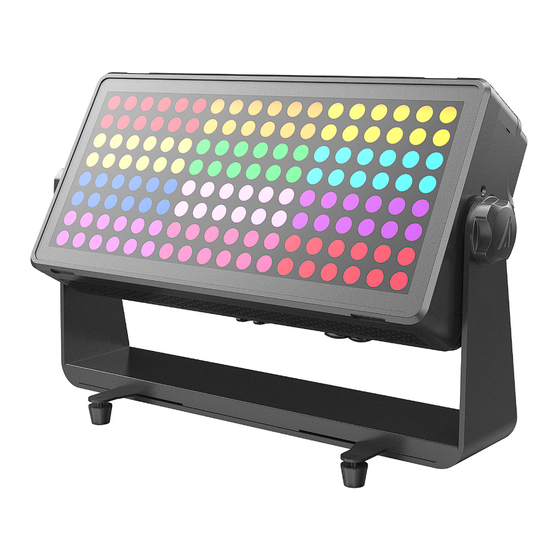

Summary of Contents for ACME THUNDERBOLT

  • Page 2: Table Of Contents

    CONTENTS 01/ Safety Instructions ....................2 02/ Technical Specifications ..................6 03/ Control Panel ......................8 04/ Fixture Installation ....................9 05/ How To Set The Unit .................... 11 5.1 Main Functions ....................11 5.2 Home Position Adjustment ................. 19 06/ Control By Universal DMX Controller ..............

  • Page 3: 01/ Safety Instructions

    01/ Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4 DO NOT touch any wire during operation as there might be a hazard of electric shock.  Avoid entanglement of the power cord with other wires.  In the event of serious operating problem, stop using the unit immediately.  Never turn on and off the unit time after time.
  • Page 5 01/ Consignes de sécurité Veuillez lire attentivement les instructions qui contiennent des informations importantes sur l'installation, l'utilisation et l'entretien. ATTENTION Veuillez conserver ce guide de l'utilisateur pour une consultation future. Si vous vendez l'appareil à un autre utilisateur, assurez-vous qu'il reçoive également ce manuel d'instructions.
  • Page 6 Assurez-vous que le cordon d'alimentation n'est pas pincé ou endommagé; remplacez-le  immédiatement s'il est endommagé. Évitez que des liquides inflammables, de l'eau ou du métal ne pénètrent dans l'appareil. Si  cela se produit, coupez immédiatement l'alimentation secteur. NE PAS utiliser le luminaire dans un environnement sale ou poussiéreux. Cette appareil ...

  • Page 7: 02/ Technical Specifications

    02/ Technical Specifications Power Voltage 100-240V~ 50/60Hz Power Consumption 1580W Light Source 144x15W RGBW LED Beam Angle 22° Dimmer/Strobe 0-100% smooth dimming; High output strobe effect 4 Channel (8 Bit) 8 Channel (16 Bit) 8 Channel 9 Channel 52 Channel DMX Channel 1 Pixel 2 Pixel...
  • Page 8 Dimensions 623x133x397mm 24.5"x5.2"x15.6"in Weight 18.4kgs 40.6lbs Photometric Diagram: - 7 -...

  • Page 9: 03/ Control Panel

    03/ Control Panel 1. Display To show the various menus and the selected function MENU To enter into move backward or leave the menu  UP To go backward to move up in the menu 2. Buttons  DOWN To go forward to move down in the menu ENTER To perform the desired functions 3.

  • Page 10: 04/ Fixture Installation

    04/ Fixture Installation  DO install and operate by qualified operator. Fixture(s) should be installed in areas outside walking paths, seating areas, or away from areas were unauthorized personnel might reach the fixture by hand. NEVER stand directly below the fixture(s) when rigging, removing or servicing.
  • Page 11 Steps for installing omega brackets for the fixture: - 10 -...

  • Page 12: 05/ How To Set The Unit

    05/ How To Set The Unit 5.1 Main Functions  To access the control menus, press the [MENU] button.  Navigate the menu structure, using the [ENTER], [ UP] and [ DOWN] buttons.  To select a menu option or to confirm a selection, press the [ENTER] button. ...
  • Page 13 MENU SUBMENU OPTIONS Auto Connect Option Art-Net sACN 4 Channel (8 Bit) 8 Channel (16 Bit) 8 Channel 9 Channel 52 Channel Channel Mode 1 Pixel 2 Pixel 3 Pixel 4 Pixel 6 Pixel 12 Pixel Blackout DMX Last State Hold Optical Linear Square Law...
  • Page 14 MENU SUBMENU OPTIONS Fixture Time Standard Power Mode Quiet RDM UID Fixture Errors Error Logs Reset Error Log Password=050 Software Version Factory Reset DMX Setting Enter the control menu and select DMX Setting, press ENTER. Use the UP/DOWN button to select DMX Address, Ethernet Setup or Connect Option.
  • Page 15 Ethernet Setup Select Ethernet Setup, press ENTER. Use UP/DOWN button to select Network, Art-Net Settings or sACN Settings, confirm your selection with ENTER. To exit the menu, press MENU, or wait 30 seconds. Network Select Network, press ENTER. Use UP/DOWN button to select IP Address or Subnet Mask, confirm your selection with ENTER.
  • Page 16 Channel Mode Select Channel Mode, press ENTER. Use UP/DOWN button to select between 4 Channel (8 Bit), 8 Channel (16 Bit), 8 Channel, 9 Channel, 52 Channel, 1 Pixel, 2 Pixel, 3 Pixel, 4 Pixel, 6 Pixel and 12 Pixel, confirm your selection with ENTER. To exit the menu, press MENU, or wait 30 seconds.
  • Page 17 White Balance Select White Balance, press ENTER. Use UP/DOWN button to select All pixel, 1 pixel…… or 12 pixel, confirm your selection with ENTER. Use UP/DOWN button to select Red, Green, Blue or White, confirm your selection with ENTER. Use UP/DOWN button to select a value between 125 and 255, confirm your selection with ENTER.
  • Page 18 Fixture Time Select Fixture Time, press ENTER. The operating hours is displayed. To exit the menu, press MENU, or wait 30 seconds. Power Mode Select Power Mode, press ENTER. Use UP/DOWN button to select Standard or Quiet, confirm your selection with ENTER. To exit the menu, press MENU, or wait 30 seconds.
  • Page 19 Factory Reset Select Factory Reset, press ENTER. If you wish to reset the device to the factory settings, select Yes. If you do not wish to reset anything, select No. Confirm your selection with ENTER. To exit the menu, press MENU, or wait 30 seconds. RDM functions: Certain menus of the device and functions can be called up via the RDM protocol.

  • Page 20: Home Position Adjustment

    5.2 Home Position Adjustment  To access the control menus, press the [MENU] button.  To access the offset menus, long-press the [ENTER] button.  Navigate the offset menus, using the [ENTER], [ UP] and [ DOWN] buttons.  To select a menu option or to confirm a selection, press the [ENTER] button. ...
  • Page 21 Select Red, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. Green Select Green, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER.
  • Page 22 Green 1 Select Green 1, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. Blue 1 Select Blue 1, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER.
  • Page 23 Blue 12 Select Blue 12, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. White 12 Select White 12, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER.

  • Page 24: 06/ Control By Universal Dmx Controller

    06/ Control By Universal DMX Controller 6.1 DMX512 Connection 1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit.

  • Page 25: Address Setting

    6.2 Address Setting If you use a universal DMX controller to control the units, you have to set DMX address between 1 and 512 so that the units can receive DMX signal. Press the MENU button to access the control menus, select DMX Settings, press the ENTER button to confirm.

  • Page 26: Dmx512 Configuration

    6.3 DMX512 Configuration Please control the fixture by referring to the configurations below. Attentions:  The unit will maintain the last condition until reset if you cut-off the DMX signal. For the channel Function, keep the value for about 3 seconds, then the ...
  • Page 27 8 Channels: CHANNEL VALUE FUNCTION 000-255 0%100% GREEN 0%100% 000-255 BLUE 0%100% 000-255 WHITE 000-255 0%100% DIMMER 0%100% 000-255 000-255 STROBE DURATION STROBE RATE 000-005 Blackout 006-255 Strobe from Slow to Fast STROBE 000-005 Null 006-050 Ramp up 051-100 Ramp down 101-150 Ramp up-down 151-200...
  • Page 28 146-154 Ramp up: Fast Speed 155-163 Ramp down: Slow Speed 164-172 Ramp down: Medium Speed 173-181 Ramp down: Fast Speed 182-190 Ramp up-down: Slow Speed 191-199 Ramp up-down: Medium Speed 200-208 Ramp up-down: Fast Speed 209-217 Lightning: Slow Speed 218-226 Lightning: Medium Speed 227-235 Lightning: Fast Speed...
  • Page 29 198-202 Seven colors change in one zone: slow speed 203-207 Seven colors change in one zone: medium speed 208-211 Seven colors change in one zone: fast speed 212-216 Seven colors change in three zones: slow speed 217-221 Seven colors change in three zones: medium speed 222-225 Seven colors change in three zones: fast speed 226-230...
  • Page 30 52 Channels: CHANNEL VALUE FUNCTION RED 1 000-255 0%100% GREEN 1 0%100% 000-255 BLUE 1 0%100% 000-255 WHITE 1 000-255 0%100% RED 2 0%100% 000-255 GREEN 2 0%100% 000-255 BLUE 2 000-255 0%100% WHITE 2 0%100% 000-255 RED 3 000-255 0%100% GREEN 3 000-255...
  • Page 31 000-255 0%100% GREEN 6 000-255 0%100% BLUE 6 0%100% 000-255 WHITE 6 000-255 0%100% RED 7 000-255 0%100% GREEN 7 000-255 0%100% BLUE 7 000-255 0%100% WHITE 7 000-255 0%100% RED 8 000-255 0%100% GREEN 8 000-255 0%100% BLUE 8 000-255 0%100% WHITE 8...
  • Page 32 BLUE 11 0%100% 000-255 WHITE 11 000-255 0%100% RED 12 000-255 0%100% GREEN 12 0%100% 000-255 BLUE 12 000-255 0%100% WHITE 12 000-255 0%100% DIMMER 000-255 0%100% 000-255 STROBE DURATION STROBE RATE 000-005 Blackout 006-255 Strobe from Slow to Fast STROBE 000-005 Null...
  • Page 33 Pixel Channels: ZONES CHANNEL VALUE FUNCTION 000-255 0%100% GREEN 0%100% 000-255 BLUE 0%100% 000-255 WHITE 000-255 0%100% DIMMER 0%100% 000-255 STROBE DURATION 000-254 0-650ms (50Hz AC) Hyper STROBE RATE 000-005 Blackout 006-255 0.5-25Hz (50Hz AC); 0.6-30Hz (60Hz AC) STROBE 1 ZONE 000-005 Null 006-042...
  • Page 34 000-255 0%100% RED 3 000-255 0%100% GREEN 3 0%100% 000-255 3 ZONES BLUE 3 000-255 0%100% WHITE 3 000-255 0%100% RED 4 000-255 0%100% GREEN 4 000-255 0%100% 4 ZONES BLUE 4 000-255 0%100% WHITE 4 000-255 0%100% RED 5 000-255 0%100% GREEN 5...
  • Page 35 GREEN 8 0%100% 000-255 BLUE 8 000-255 0%100% WHITE 8 000-255 0%100% RED 9 0%100% 000-255 GREEN 9 000-255 0%100% BLUE 9 000-255 0%100% WHITE 9 000-255 0%100% RED 10 000-255 0%100% GREEN 10 000-255 0%100% BLUE 10 000-255 0%100% WHITE 10 000-255 0%100%...
  • Page 36 LED PIXEL ZONES: - 35 -...

  • Page 37: 07/ Error Information

    07/ Error Information Error codes are shown continuously in the display when the fixture fails and they will not disappear until the fixture is repaired. Temp. Error Check whether the temperature detecting board is normal. Check whether the components of the temperature detecting board are damaged.

  • Page 38: 08/ Troubleshooting

    08/ Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for troubleshooting: A. The unit does not work, no light and the fan does not work  Check the connected power.  Measure the voltage. ...
  • Page 39 Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 2014/30/EU. EN 55032: 2015; EN IEC 61000-3-2: 2019; EN 61000-3-3: 2013; EN 55035: 2017. &...
