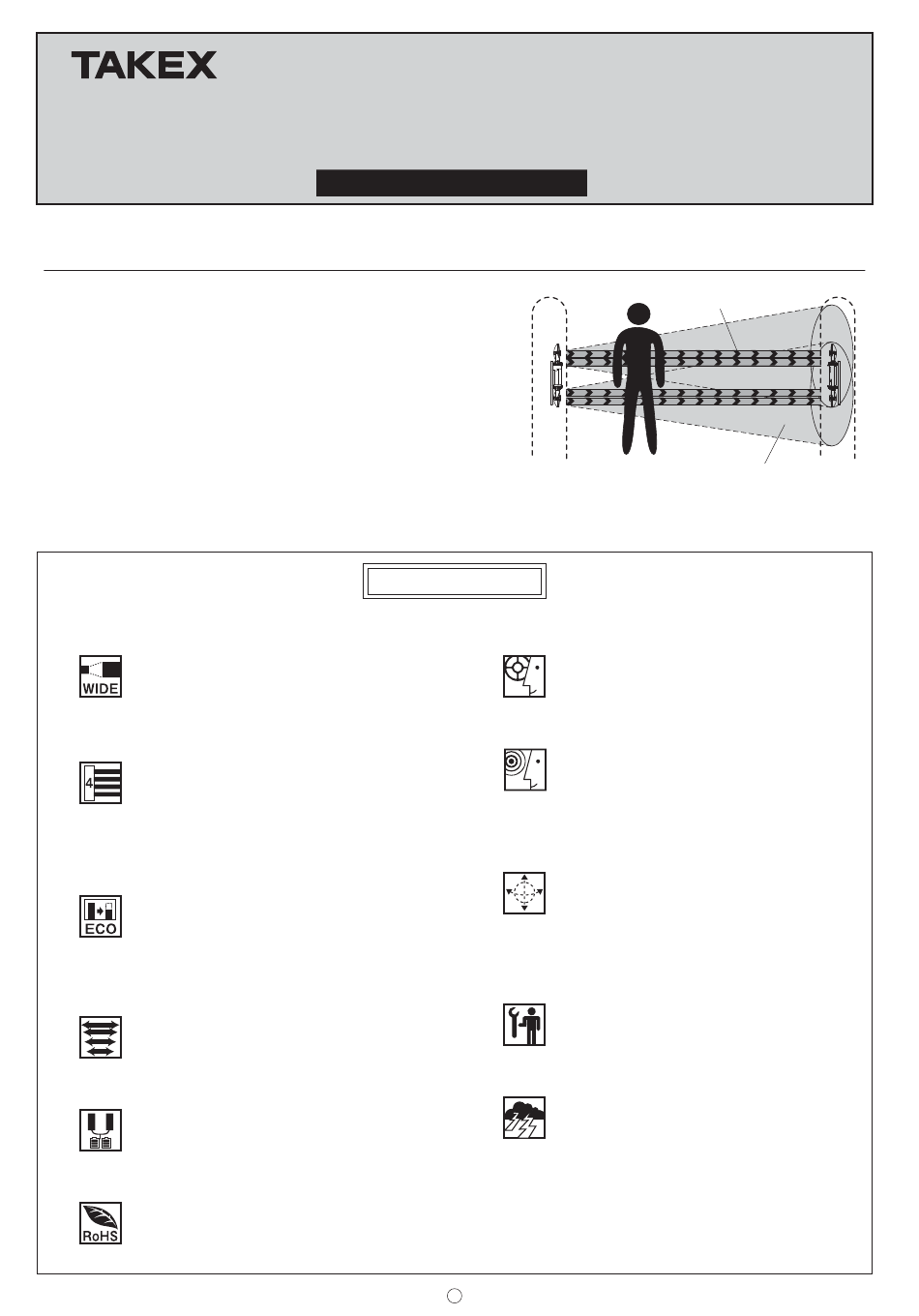

BATTERY OPERATED PHOTOELECTRIC BEAM SENSOR
TXF-125E-KH : OUTDOOR 330ft (100m)
Thank you for purchasing this product. Before using the product, please read this instruction manual to ensure correct operation.
This product is designed to be installed into the housing (sold separately) for use. Make sure to install this product into the housing
for use.
This unit is a battery operated photoelectric beam sensor consisting of a
transmitter and a receiver.
The direct path between the transmitter and the receiver forms the
detection line. When this detection line is interrupted (light is obstructed for
0.05 to 0.5sec. or more), the receiver outputs a signal. The signal is sent
through the wireless transmitter to the wireless receiver. No external wiring
cable is required.
The battery operated design allows this unit to operate without an external
power supply over a long period of time. The battery power also can be
shared with a wireless transmitter.
In order to ensure that the detection line has sufficient margin of sensitivity,
adjust the direction of the light beams before putting the system into
operation. Providing sufficient margin of sensitivity reduces the malfunction
caused by dense fog, heavy rain, frost, snow, and other such weather
conditions.
(1) WIDE BEAM
As is the case with the wired system, increasing the
vertical beam pitch together with the 4 beam
simultaneous interruption system significantly reduces
false alarms from birds or fallen leaves, etc.
(2) QUAD HIGH POWER BEAM
The beam power is 100 times greater than the
minimum requirement.
The beam distance is 10 times longer than the
described specification.
This high power beam ensures high reliability against
harsh conditions such as fog, snow and heavy rain.
(3) REDUCE COSTS
By combining a wireless transmitter, external wiring
becomes unnecessary, which can substantially reduce
wiring material costs and related work.
In addition, this unit realizes longer battery life due to
its low current consumption.
(4) DETECTION DISTANCE SELECTABLE
4 detection distances are selectable within a single
unit [330'(100m) / 247'(75m) / 165'(50m) / 82'(25m)]
(5) BATTERY SHARING FUNCTION
This function integrated in the sensor enables battery
sharing with a wireless transmitter. Low battery
output voltage is adjustable by volume switch.
(6) ECOLOGY
RoHS compliant – Environment friendly. Free from
Lead, Mercury, Cadmium, Hexavalent chromium,
Polybrominated biphenyl, Polybrominated diphenyl
ether.
Instruction Manual
Main Features
(7) DUAL RING SIGHT
(8) TARGET COLOR
(9) INCREASED ANGLE ADJUSTMENT
(10) WIRELESS ALIGNMENT CHECKER
(11) LIGHTNING PROTECTION
1
Detection line
Coverage of light beams
Transmitter
Enables clear view for easy beam alignment.
The vivid color of the internal structure can be
recognized easily at distance during the beam
alignment procedure.
The color differs between transmitter and receiver
for easy installation and checking.
±20° vertical adjustment to adapt to changes in
elevation for maximum flexibility
<Reference> This unit can be installed in a place
with a height difference of 59'(18m) or less when
the protection distance is 165'(50m), and 118'(36m)
or less when it is 330'(100m).
Enables easy and accurate beam alignment. (Sold
separately)
This unit is insusceptible to induced lightning
because of its battery operated system.
Receiver

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TXF-125-KH and is the answer not in the manual?

Questions and answers

Summary of Contents for Takex TXF-125-KH

  • Page 1 BATTERY OPERATED PHOTOELECTRIC BEAM SENSOR TXF-125E-KH : OUTDOOR 330ft (100m) Instruction Manual Thank you for purchasing this product. Before using the product, please read this instruction manual to ensure correct operation. This product is designed to be installed into the housing (sold separately) for use. Make sure to install this product into the housing for use.
  • Page 2: Table Of Contents

    — TABLE OF CONTENTS — 1 PARTS DESCRIPTION 4 INSTALLATION METHOD ............9 (1) MAIN UNIT................2 ATTACHING TO THE TA TOWER ..........9 (2) ACCESSORIES ..............2 5 OPTICAL AXIS ADJUSTMENT..........10 (3) NAMES OF OPERATION SECTION ........3 (1) NAMES AND FUNCTIONS..........
  • Page 3: Names Of Operation Section

    [Receiver] (3) NAMES OF OPERATION SECTION [Transmitter] Wireless alignment checker connector (ER-02: sold separately) Reception authorization LED: Red Alarm LED Wireless alignment (Upper/Lower) : Red checker connector (ER-02 : sold separately) Upper/lower changeover switch Sensitivity Transmission LED: Red attenuation LED Monitor jack (Upper/Lower) : Red...
  • Page 4 Caution Do not apply impact to the unit. Strong impact may result in performance deterioration and/or damage to the unit. The unit may not operate properly near devices that • Installation in areas where generate a strong electric or magnetic field. moving objects (the laundry etc) •Installation on uneven •...
  • Page 5 Cautions when using the outdoor photoelectric beam sensor (Regular maintenance) • In areas where there are trees or weeds, the photoelectric beams may become obstructed by overgrown branches or leaves. As this may cause false detection, be sure to trim down leaves and branches according to the growth of the plants. Furthermore, the photoelectric beams may get obstructed by swaying branches or leaves due to wind.
  • Page 6 For 2 level straight line protection, set the TAKEX. frequency of 2 adjacent sensors to the channels at • Consult with TAKEX distributor or TAKEX regional intervals and provide up to 2 spans. Also, Caution office about the frequency selection for installations not perform a sufficient operation check before actual mentioned in this instruction manual.
  • Page 7: Before Use

    BEFORE USE (1) CHECKING SPACE FOR WIRELESS TRANSMITTER Space for a wireless transmitter • The space accommodates a wireless transmitter. Please consider the dimensions of the wireless transmitter unit and the Approx. 33mm necessary wiring prior to installation. Approx. 67mm Approx.
  • Page 8: Setting Low Battery Output Voltage

    (5) SETTING LOW BATTERY OUTPUT VOLTAGE When sharing the battery power with a wireless transmitter, check and adjust the low battery output voltage level for the wireless transmitter. Refer to the “MOUNTING BATTERIES” section, and mount batteries. Warning Power output When sharing the battery power of TXF-125E-KH with a wireless transmitter, don’t insert batteries into the wireless transmitter.
  • Page 9: Installation Method

    INSTALLATION METHOD Sensor unit 3.94” (100mm) Wireless transmitter housing Connection cable Battery cover Base  Break appropriate knockouts for the  Mount a wireless transmitter to a  Mount batteries in the battery space on the mounting holes of the base unit using wireless transmitter space.
  • Page 10: Optical Axis Adjustment

    By aligning the optical axis correctly, a protection line with sufficient margin OPTICAL AXIS ADJUSTMENT of sensitivity can be created, reducing the occurrence of malfunction. Always adjust the optical axis on both upper and lower levels. Adjusting the optical axis correctly ensures a sufficient sensitivity margin that increases resistance to dense fog, snow, and heavy rain, establishing a highly reliable intrusion alarm system.
  • Page 11: Alignment Mechanism

    (2) ALIGNMENT MECHANISM Move the swivel base and swing arm so that the opposite device is roughly aligned with the view finder. Horizontal angle adjustment Vertical angle adjustment Look closely through the view finder, and adjust the position so that the sensor of the opposite device is visible at the center of the ring using the horizontal and vertical angle fine adjustment screws.
  • Page 12 Turn on the power to the transmitter and receiver. When adjusting beam alignment, please select “Mode selector” to “Alignment” check that the LEDs of both the transmitter and receiver units are lit. Names of operation section Note: This section describes the name and function of each part used during optical axis adjustment. The corresponding LED lights up Alarm LED when the transmission/reception is...
  • Page 13: Sound Check

    (3) SOUND CHECK The sound check function indicates the light reception level by using high and low pitched tones. The sound check function is only installed on the receiver. First, check only the transmission and reception on the upper level , and then check only the transmission and reception on the lower level.
  • Page 14: Monitor Output Voltage

    (4) MONITOR OUTPUT VOLTAGE More accurate adjustment of the optical axis can be achieved by checking the light reception level value using the voltage of the monitor output. First, check only the transmission and reception on the upper level , and then check only the transmission and reception on the lower level.
  • Page 15: Wireless Alignment Checker

    (5) WIRELESS ALIGNMENT CHECKER: ER-02 (SOLD SEPARATELY) The wireless alignment checker ER-02 can be used to check the monitor output voltage both on the transmitter and receiver, which enables even one person to easily complete the correct optical axis adjustment. Also, the light reception level can be checked during optical axis adjustment because the monitor output voltage can be checked.
  • Page 16: Sensor Functions

    This section describes the functions equipped in the sensors. Refer to below and set SENSOR FUNCTIONS the functions properly. (1) MODULATION FREQUENCY CHANGEOVER FUNCTION Note: Installed on the transmitter and the receiver Each channel has its own modulation freguency, which can prevent mutual interference or wraparound of the photoelectric beams. Set corresponding transmitters and receivers to the same channel.
  • Page 17 (5) REPEAT OUTPUT FUNCTION Note: Only installed on the receiver When the unit outputs continuous alarm (e.g. beam path obstructed by a parked vehicle), or the environmental alarm is ceaselessly output, this function will repeat the output signal only every 2 minutes, or if the low battery warning is output it will repeat the output signal every 15 minutes.
  • Page 18: Troubleshooting

    ※After adjustment, make sure to return “operate” mode • Check the device by referring to the table below. If you cannot restore the device to TROUBLESHOOTING normal condition after the check, contact the place of purchase or TAKEX. Status Cause...
  • Page 19: Specifications

    SPECIFICATIONS BATTERY OPERATED PHOTOELECTRIC BEAM SENSOR Model TXF-125E-KH Near infrared pulsed beam interruption system Detection system (TR-RE 4 beam simultaneous interruption) Infrared beam Single modulation pulsed beam by LED (near infrared beam light-emitting diode) Protection distance Outdoor 330‘(100 m) or less Protection distance setting 82‘(25m), 165‘(50m), 247‘(75m), 330‘(100m) (4 distances selectable) Distance margin...
  • Page 20: External Dimensions

    TAKEX. All implied warranties with respect to TAKEX, including implied warranties for merchantability and implied warranties for fitness, are limited in duration to 12 months from original date of shipment. During the Warranty Period, TAKEX will repair or replace, at its sole option, free of charge, any defective parts returned prepaid.
