Thank you for purchasing this product.
Before using the product, please read this instruction manual to ensure correct operation.
1
PRODUCT DESCRIPTION
• Up to 15m detection distance
2
PARTS DESCRIPTION
: Red (embedded)

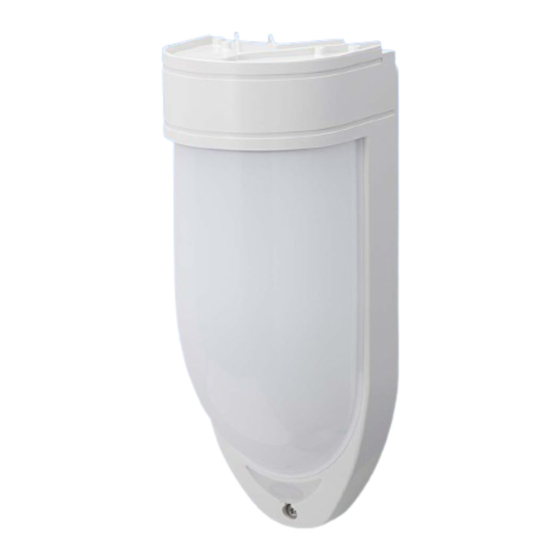

TRIPLE MIRROR PASSIVE SENSOR
PIR-T15WE(W)/(G)
(Wide angle protection)
Instruction Manual
Memory LED
: Red (embedded)
Indicator
Mirror
1
Accessories
(1 sheet)
Instruction
This document
Advertisement
Table of Contents
Related Manuals for Takex PIR-T15WE(W)
Summary of Contents for Takex PIR-T15WE(W)

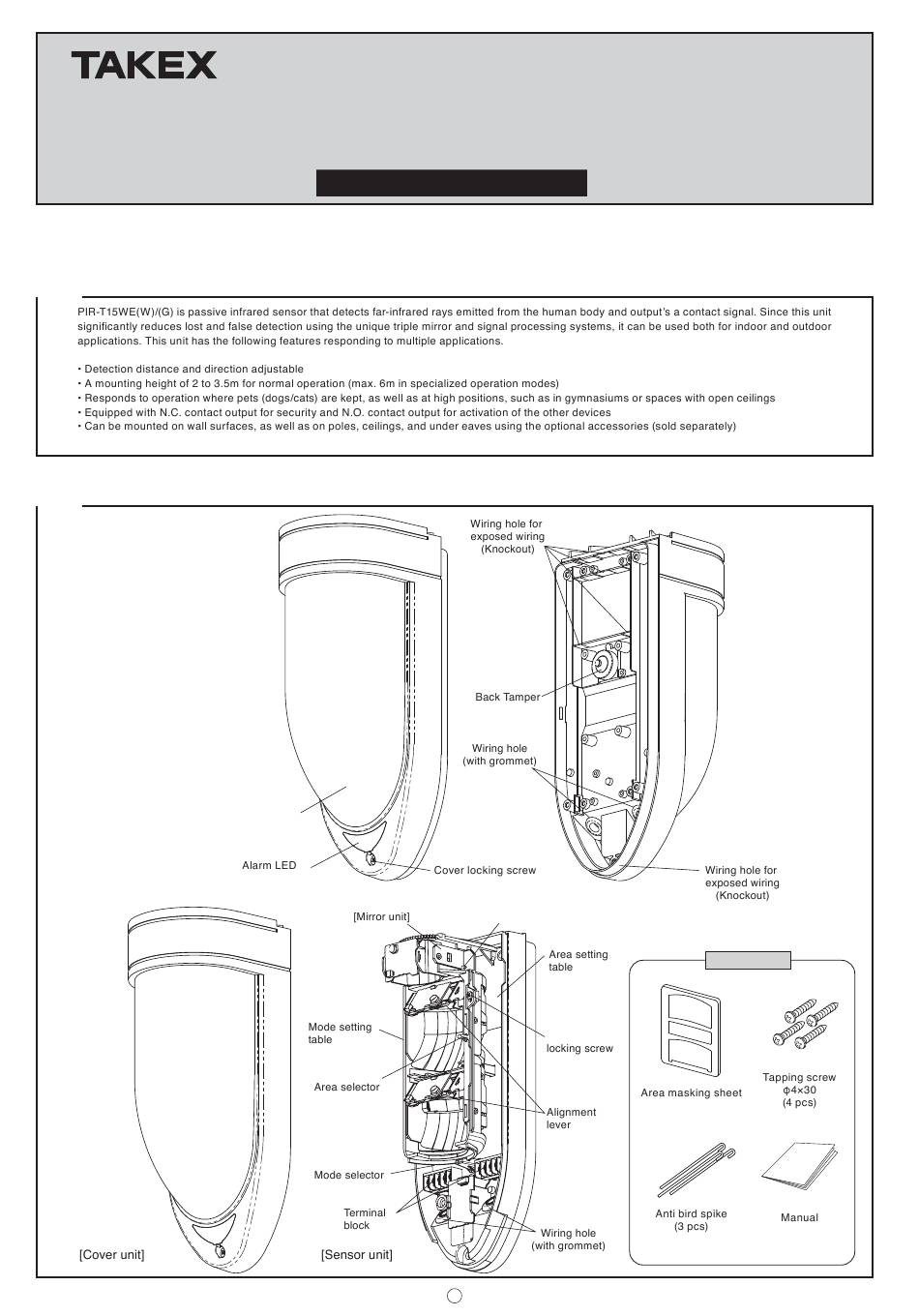

- Page 1 TRIPLE MIRROR PASSIVE SENSOR PIR-T15WE(W)/(G) (Wide angle protection) Instruction Manual Thank you for purchasing this product. Before using the product, please read this instruction manual to ensure correct operation. PRODUCT DESCRIPTION • Up to 15m detection distance PARTS DESCRIPTION Memory LED : Red (embedded) : Red (embedded) Indicator...
- Page 2 PRECAUTIONS Be sure to observe Warning Caution We categorize these precautions throughout the manual using the following symbols. Warning Mount the unit on a solid ceiling or wall surfaces where Do not disassemble or modify the unit. reinforcement materials are used. If you mount the unit on Failure to follow this may result in fire, electric shock, and/or non-wood plaster board or concrete, securely mount it using malfunction.
-
Page 3: Detection Area
Caution Mount the unit straight so that it does not look inclined from Install the unit where the the front and side view. detection area faces toward a place intruders may pass through. Adjust the detection area so that it does not go beyond the site. - Page 4 ■Masking method of the detection area ’ ① to ③ [Top view] ① ③ ① ③ ② ② ①② ③ [Side view] ① In the case ② of the ’ ’(15m) ③ ’(7m) ’ ■Precautions on the detection area setting ’...
-
Page 5: Installation
INSTALLATION The installation height and adjustable detection distance depend on the operation mode. Carefully check the operation mode and detection area * For open wiring, break the setting before installation and area setting. knockout on the rear side of the sensor unit, and pull the wire through it. -
Page 6: Terminal Configuration
WIRING ■Terminal configuration Extra terminal Tamper output ■Standard connection LED CONTROL FUNCTIONS ⑤ OPERATION output Turn the Mode selector ① OFF When the switch is turned ON, the alarm LED lights at alarm. When the switch is turned OFF, the alarm LED does not light. ｝... -
Page 7: Mode Selector
Cover monitoring Tamper or removed and issue an Temperature compensation ■Description of mode selector Environmental adjustment setting (5 of mode selector 1) Operation mode setting (6 and 7 of mode selector 1) Pet mode Mode selector 1 ’ ’ Alarm LED setting (1 of mode selector 1) ’... - Page 8 Long-term diagnosis setting (6 of mode selector 2) Alarm contact output changeover setting (3 of mode selector 2) Output for external device setting (4 of mode selector 2) Factory set Near area cancellation setting (5 of mode selector 2) ■Description of LED operation ・...
- Page 9 ADJUSTMENT OF DETECTION AREA ■Detection area adjustment method * Do not set the detection distance to ’ less than 25’(7.5m) in the area ’(15m): selector. To set a distance of less than 25’(7.5m), attach the masking sheet and adjust the area. (Refer to “4 DETECTION AREA”) ’...
-
Page 10: Operation Check
OPERATION CHECK * When the alarm LED is set to OFF for operation, use the walk test function and check operation. TROUBLESHOOTING Status Cause Remedy (1) Check the power wire and set the power voltage (1) Power is not turned ON (including cable disconnection), or the power voltage is too low. -
Page 11: Specifications
SPECIFICATIONS Model Triple mirror passive sensor Model number PIR-T15WE(W) PIR-T15WE(G) Detection system Passive infrared Wide angle (80°) detection Detection area Detection distance: 49’(15m), 108 rays (54 pairs) Power supply 9 to 28V DC (non-polarity) Current consumption Max. 40mA Contact method : Dry semi-conductor contact, N.C./N.O. -
Page 12: External Dimensions
TAKEX. All implied warranties with respect to TAKEX, including implied warranties for merchantability and implied warranties for fitness, are limited in duration to 12 months from original date of shipment. During the Warranty Period, TAKEX will repair or replace, at its sole option, free of charge, any defective parts returned prepaid.
