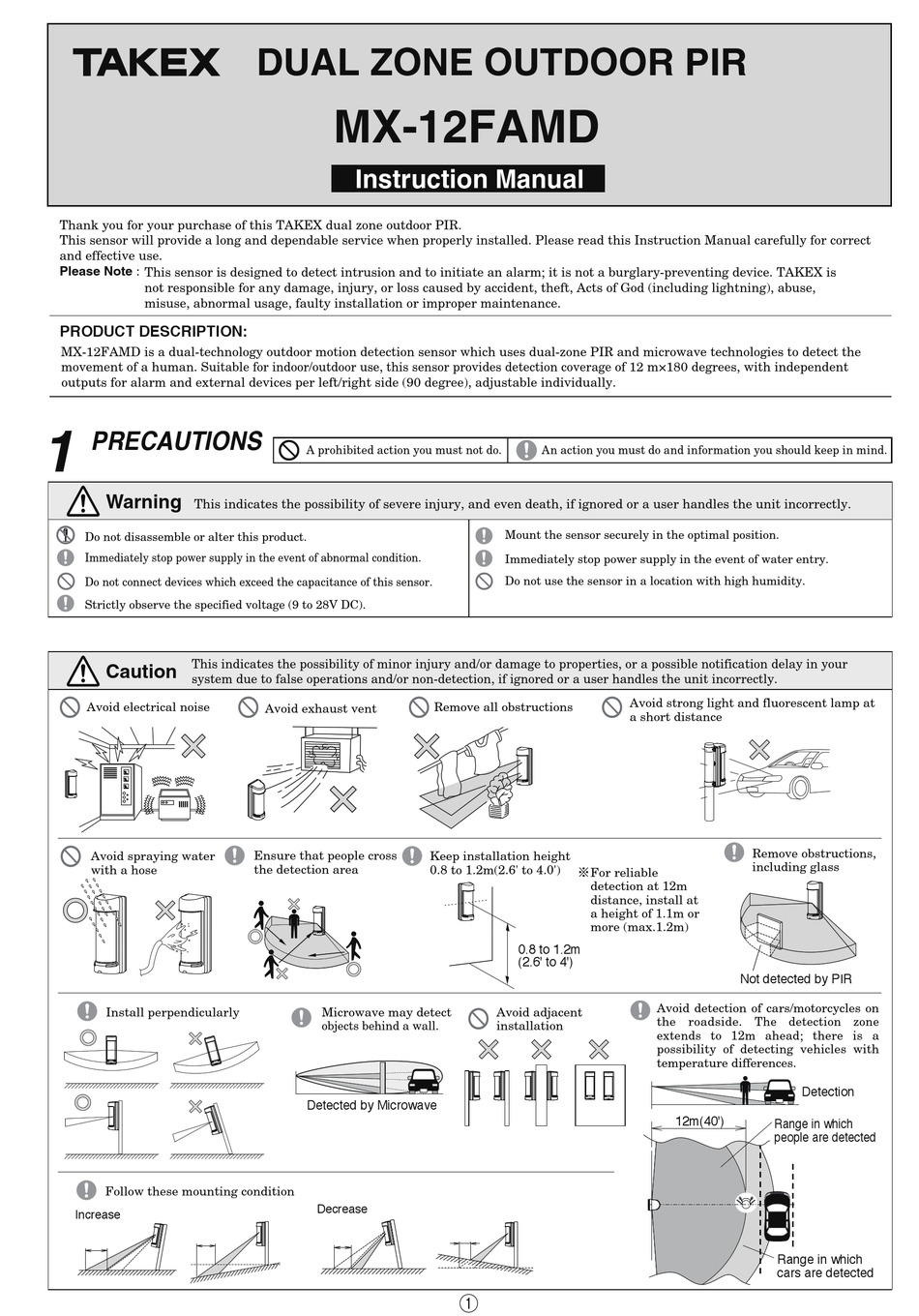

Takex MX-12FAMD Instruction Manual

Takex MX-12FAMD Instruction Manual

Dual zone outdoor pir

Advertisement

Quick Links

Thank you for your purchase of this TAKEX dual zone outdoor PIR.
This sensor will provide a long and dependable service when properly installed. Please read this Instruction Manual carefully for correct
and effective use.
Please Note :
This sensor is designed to detect intrusion and to initiate an alarm; it is not a burglary-preventing device. TAKEX is
not responsible for any damage, injury, or loss caused by accident, theft, Acts of God (including lightning), abuse,
misuse, abnormal usage, faulty installation or improper maintenance.
MX-12FAMD is a dual-technology outdoor motion detection sensor which uses dual-zone PIR and microwave technologies to detect the
movement of a human. Suitable for indoor/outdoor use, this sensor provides detection coverage of 12 m×180 degrees, with independent
outputs for alarm and external devices per left/right side (90 degree), adjustable individually.
Warning
This indicates the possibility of severe injury, and even death, if ignored or a user handles the unit incorrectly.
Do not disassemble or alter this product.
Immediately stop power supply in the event of abnormal condition.
Do not connect devices which exceed the capacitance of this sensor.
Strictly observe the specified voltage (9 to 28V DC).
This indicates the possibility of minor injury and/or damage to properties, or a possible notification delay in your
Caution
system due to false operations and/or non-detection, if ignored or a user handles the unit incorrectly.
Avoid electrical noise
Avoid spraying water
with a hose
Install perpendicularly
Follow these mounting condition
DUAL ZONE OUTDOOR PIR
MX-12FAMD
Instruction Manual
A prohibited action you must not do.
Avoid exhaust vent
Ensure that people cross
the detection area
Microwave may detect
objects behind a wall.
An action you must do and information you should keep in mind.
Mount the sensor securely in the optimal position.
Immediately stop power supply in the event of water entry.
Do not use the sensor in a location with high humidity.
Remove all obstructions
Keep installation height
0.8 to 1.2m(2.6' to 4.0')
For reliable
detection at 12m
distance, install at
a height of 1.1m or
more (max.1.2m)
Avoid adjacent
installation
Avoid strong light and fluorescent lamp at
a short distance
Remove obstructions,
including glass
Avoid detection of cars/motorcycles on
the roadside. The detection zone
extends to 12m ahead; there is a
possibility of detecting vehicles with
temperature differences.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX-12FAMD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Takex MX-12FAMD

  • Page 1 Please Note : This sensor is designed to detect intrusion and to initiate an alarm; it is not a burglary-preventing device. TAKEX is not responsible for any damage, injury, or loss caused by accident, theft, Acts of God (including lightning), abuse, misuse, abnormal usage, faulty installation or improper maintenance.
  • Page 2: Before Mounting

    Accessory Before mounting Loosen the cover locking screw and remove the cover. Wall mount [Embedded wiring ] (1) Align the back of sensor with the wiring from the wall. (2) Feed the wiring through the wiring hole and connect it to the terminals. (3) Use sealant and caulk the gap around the wiring.
  • Page 3: Pole Mount

    Pole mount * Use the pole attachment BP-32 sold separately. (for pole dia 38mm to 45mm (1.50" to 1.77")) (1) Break off the pole mounting knockouts. (2) Fit the pole mounting brackets to the sensor. (3) Select Active or Inactive Back Tamper by reversing the rubber switch cover. (4) Use sealant to caulk the screw hole and the gap around wiring entry.
  • Page 4: Detection Area

    Detection area [Wide angle detection] IMPORTANT NOTES Detection range/sensitivity may change depending on the following factors: ・Small difference of temperature between object and surroundings. ・Movement direction of the object. ・Mounting height. ・Mounting orientation. ・Slope in detection area. LEFT RIGHT SENSOR SENSOR MW zone Detected...
  • Page 5: Switch Setting

    PIR area masking Cut off / Bend (1) Pull out the area masking sheet from the cover. (2) Bend or cut off the sheet to adjust it to the masking area. (3) Clip the mask to the protruding hooks around the optical unit. - In case of wall detection, set the pulse count to 1.
  • Page 6: Operation Check

    Tamper output Trouble output Back tamper detection Solve possible problems according to the following table. If normal operations cannot be restored by this means, contact either the dealer from whom you bought the unit or TAKEX. Trouble Check Corrective Action (1) No power supply (including broken wiring), or the (1) Check the power wiring, and power supply voltage.
  • Page 7: Maintenance

    1. Clean the device with a soft, damp cloth and wipe off water drops. Use water with weak neutral detergent to clean stubborn dirt. (except lens) Do not use substances such as thinner or benzene. 2. Perform operation check on a regular basis. Model MX-12FAMD and Microwave Detection system Passive infrared Microwave transmit 24.150 to 24.250GHz 12.7dBm e.i.r.p...
  • Page 8 Limited Warranty : TAKEX products are warranted to be free from defects in material and workmanship for 12 months from original date of shipment. Our warranty does not cover damage or failure caused by Acts of God (including inductive surge by lightning), abuse, misuse, abnormal usage, faulty installation, improper maintenance or any repairs other than those provided by TAKEX.
