TS-7
Thank you for purchasing this product. Before using the product, please read this instruction manual carefully to ensure correct operation.
・ This sensor detects the occupancy state of the toilet (regardless of whether the user is stationary or moving).
・ The height of the user from the floor surface is measured with near infrared rays to judge the occupancy, thus avoiding
being affected by conditions of the floor surface(watered or cleaned).
・ The seven optical axes independently recognize the distance to the floor and the toilet bowl to automatically perform initial
setting.
・ In case there is a lighting/ventilation opening(directly above on the ceiling), handrails or hand-washing space, installation
can be done properly by adjusting the sensor head angle or switching 9 types of detection areas.
TOILET OCCUPANCY SENSOR
/
TS-7U
(Round)
/
(Flush mount)
TS-7R
(Square)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Takex TS-7 Series
Summary of Contents for Takex TS-7 Series

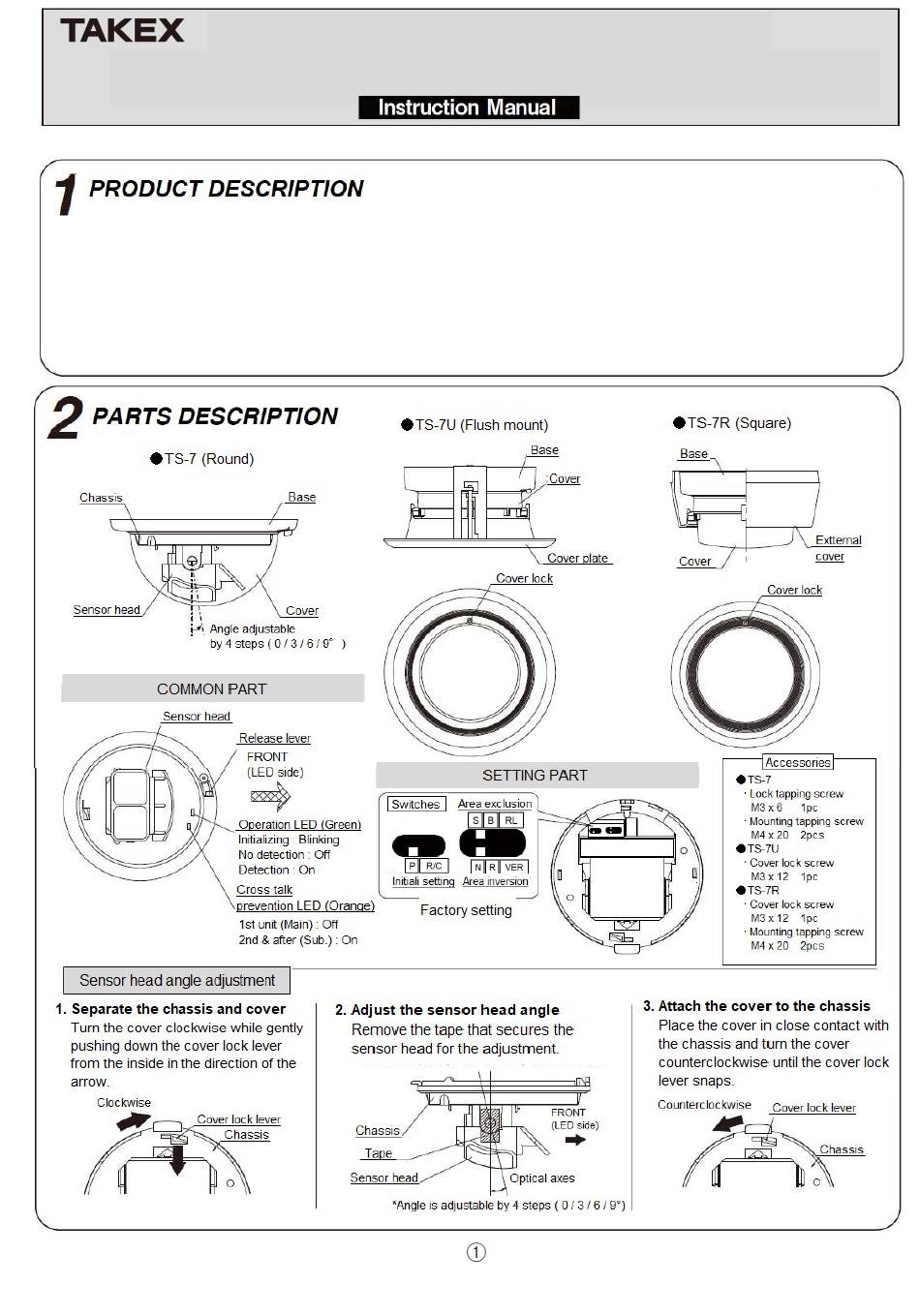

- Page 1 TOILET OCCUPANCY SENSOR TS-7 TS-7U TS-7R (Round) (Flush mount) (Square) Thank you for purchasing this product. Before using the product, please read this instruction manual carefully to ensure correct operation. ・ This sensor detects the occupancy state of the toilet (regardless of whether the user is stationary or moving). ・...
- Page 2 ① This sensor may have an error in the initial setting area, detection output area and detection output height, depending on the color/material of the floor and user's clothing, ② At the time of detection, the detection output area goes down to approx. 0.2 m above the floor surface.
- Page 3 Beam classification Detection output height : 0.4m or more Detection output height : 0.55m or more Excluded area S : Standard B : Back RL : Right and left Standard Reverse VER : Versatile For installation in front of the For installation on the right or For installation in front of the For installation to the rear of...
- Page 4 ① This sensor is for indoor use. Never use it outdoors. ② This sensor is not waterproof. Do not install it in a bathroom/toilet. There is a risk of malfunction or failure due to water intrusion. ③ Make sure that strong light such as sunlight does not directly hit the unit, the floor surface to be detected, or the upper side of the toilet bowl.
- Page 5 With the initial setting switch set to , operate the With the initial setting switch set to , turn the power on or remote controller TS-A (sold separately). operate the remote controller TS-A (sold separately). The operation LED (green) lights approx. 3 sec, then the The operation LED (green) starts blinking and the initial setting initial setting is performed while LED blinks.
- Page 6 ● If the initial setting switch is set to , the initial setting will not be performed when the power is turned on. ● Make sure that the toilet seat, toilet lid and handrails are in their original position. ● In case of initial setting error, check the operating environment including the following points: ・...
- Page 7 In case of malfunctions, change 1) 9 patterns, 2) area angle(4 steps) , or 3) mounting angle (base angle: slightly). Toilet cleaning supplies, equipment, consumables, etc. were placed or moved in the detection Movable handrail entered area, and the detection the detection area and the height changed.
- Page 8 This product is a health care device that helps you to live a comfortable life, not a medical device, a disaster prevention device, or a personal injury prevention device. Takex is not responsible for any accidental damage caused by personal injury, disaster, or construction defect by using the porduct.
