Takex PA-5312E Instruction Manual

PA-5312E
We appreciate your purchase of a TAKEX passive infrared sensor. This sensor will provide long and dependable service when
properly installed. Please read this Instruction Manual carefully for correct and effective use.
Please Note : This sensor is designed to detect intrusion and to initiate an alarm ; it is not a burglary-preventing device.
TAKEX is not responsible for damage, injury or losses caused by accident, theft, Acts of God (including inductive
surge by lightning), abuse, misuse, abnormal usage, faulty installation or improper maintenance.
1
PARTS DESCRIPTION
Base locking screw
Arrow point
Wire lead
Fixer
Sensor locking screw
(White)
Area selector
Indicator
Arrow point
Memory LED
(Inside-Yellow)
2
PRECAUTIONS
This indicates the possibility of severe injury, and
Warning
even death, if ignored or a user handles the unit
incorrectly.
We categorize these precautions throughout the manual using the following symbols.
A prohibited action, you must not do.
Do not disassemble or modify this device. This may cause a fire,
electrical shock, or malfunction of the device.
If the following events occur, turn off the power of the unit
immediately, and ask the place of purchase for repair. Failure to
follow this may result in fire, electric shock, and/or malfunction.
Liquid, such as water, and/or foreign material has entered the unit
Mount the unit on a solid ceiling or wall surfaces where
reinforcement materials are used. If you mount the unit on
non-wood materials of plaster board or concrete, securely mount it
using anchors and mounting screws that match the wall materials.
Unstable mounting may result in injury and/or property damage if
the unit falls.

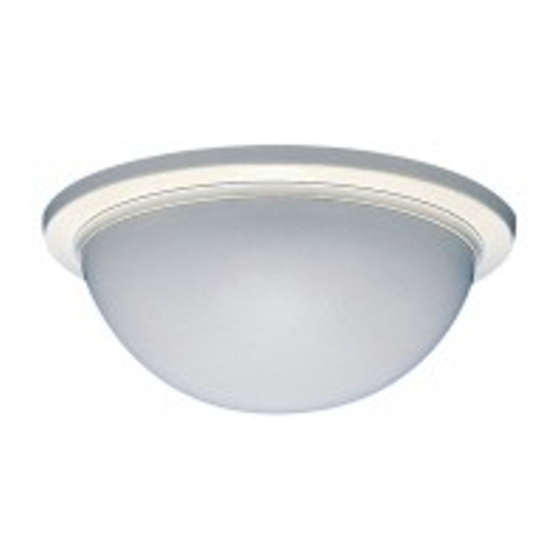

PASSIVE INFRARED SENSOR
( Wide angle protection : 40ft [ 12m ])
Instruction Manual
Cover locking screw
(Silver)
【BASE UNIT】
Matching mark
Area set chart
【SENSOR UNIT】
【COVER SPACER】
Be sure to observe
・ PA-5325E
Memory LED
(Yellow)
Limit pin
Multi-parabolic mirror
(Wide angle type)
Cover locking
lever
Alarm LED
(Inside-Red)
COVER SPACER
: 1 pc
This manual describes precautions by classifying them based on degrees of danger and
damage that would be generated if using the unit incorrectly.
Caution
An action you must do, and information you should keep in mind
Warning
Do not install this device in a location that cannot support its
weight. This may cause the device to fall and cause an injury or
malfunction of the device.
Do not use the unit with power voltage levels other than those
specified. Failure to follow this may result in fire, electric shock,
and/or malfunction.
Use the sensor lock to fix the sensor unit for operation. This can
prevent injuries, and/or damage to the unit if the unit falls, as well
as prevent the sensor from being tampered.
Do not connect devices that exceed the indicated capacity to the
output contact of the unit. Failure to follow this may result in
electric shock, fire, and/or malfunction.
Do not touch terminals with wet hands. Failure to follow this
may result in electric shock.
1
( Vertical curtain protection : 82ft [ 25m ])
Mode selector
【COVER】
Accessories
Self-tapping screw Instruction manual
(ø4 x 30)
: 2 pcs
This indicates the possibility of minor injury and/or
damage to properties, or of a notification delay in your
system due to false operations and/or non-detection, if
ignored or a user handles the unit incorrectly.
Alarm LED(Red)
Base locking hole
Tamper switch
Head unit
: 1 pc
