Thank you for purchasing a TAKEX product.
This switch will provide long and dependable service when properly installed.
Please read this Instruction Manual carefully for correct and effective use.
Please Note : This switch is designed to detect passing objects and to initiate a signal ; it is not a burglary-preventing device.
TAKEX is not responsible for damage or losses caused by accident, theft, Acts of God (including lightning),
abuse, misuse, abnormal usage, faulty installation of improper maintenance.
1
PRODUCT DESCRIPTION
This sensor unit uses a passive infrared sensors to detect infrared (
human body, which can be used as an automatic switch.
This unit is designed for wide applications such as a switch to control illumination or home automation
apparatus.
2

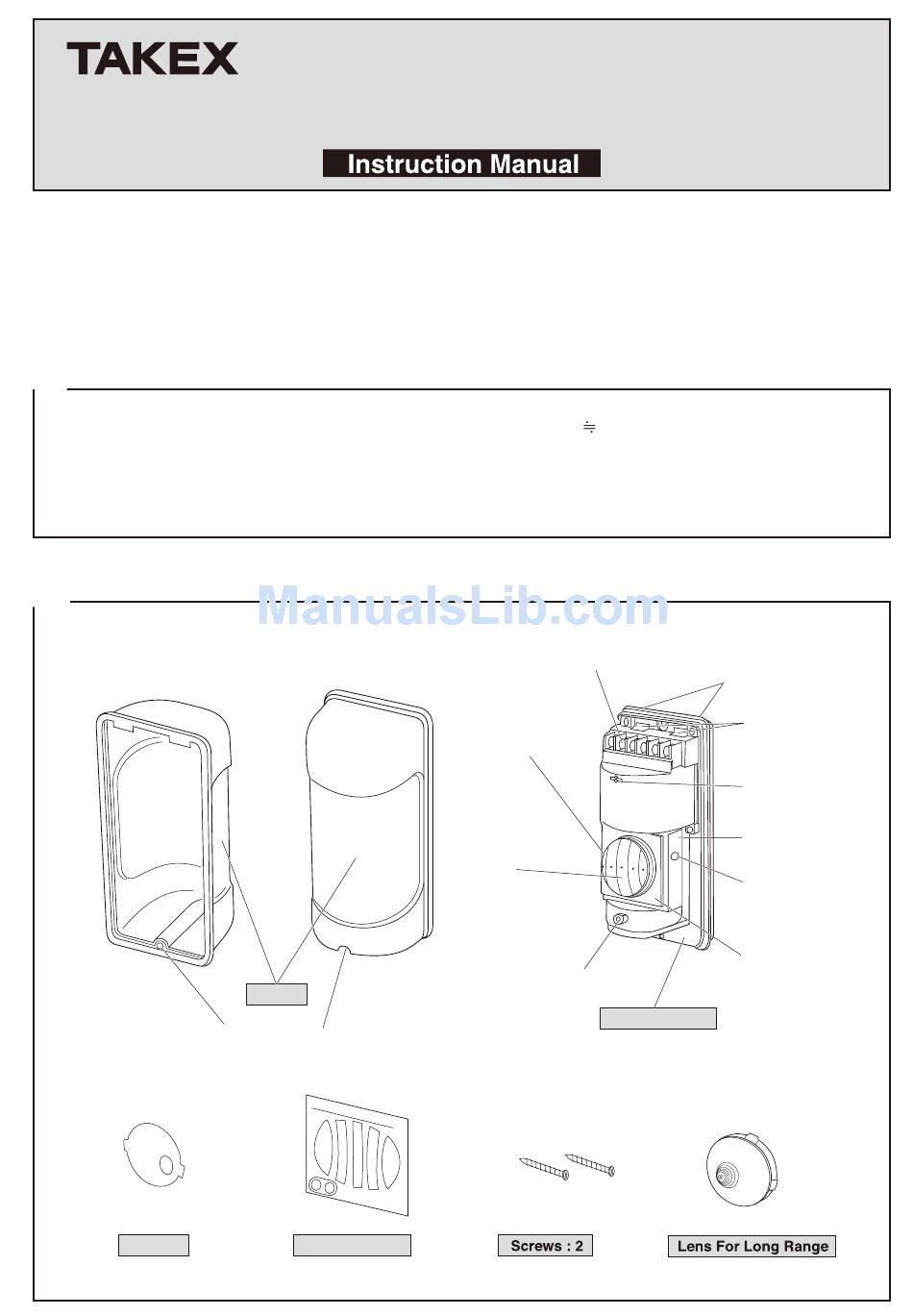

PARTS DESCRIPTION
Filter

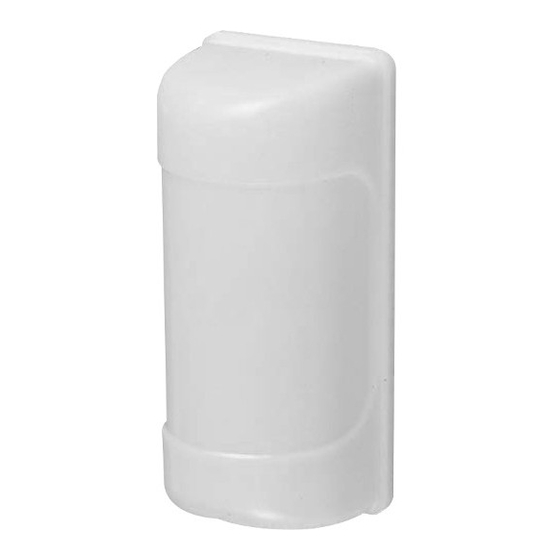

OUTDOOR PASSIVE SENSOR
MS-100E
Cover
Cover Screw
Masking Seal
body temprature) emitted from a
Terminal
Contact
Selection
Lens
(Attached
at Factory)
Operation LED
Body of Unit
Wire knockout
Wire Feed
Through
Tamper Switch
Sensor Case
Sensitivity
Adjustment
Lens Holder
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Takex MS-100E
Summary of Contents for Takex MS-100E
- Page 1 Please Note : This switch is designed to detect passing objects and to initiate a signal ; it is not a burglary-preventing device. TAKEX is not responsible for damage or losses caused by accident, theft, Acts of God (including lightning), abuse, misuse, abnormal usage, faulty installation of improper maintenance.
-
Page 2: Precautions On Installation
PRECAUTIONS 1. Precautions on Installation Install the unit in such a direction that people are In case of outdoor installation, adjust the lens holder more likely to cross the detection zones. to 2 , 4 , 6 downward from horizontal. Install in a site which avoid direct sunlight. -
Page 3: Detection Area
DETECTION AREA MS-100E can set up 4 different patterns of coverage with 2 types of lens. 1. Detection chart Installation Vertical Installation Horizontal Installation Mounting Indoor / Outdoor Indoor Position Mounting Height 0.8 1.5m (2.6 5') Height 3m (10') Wide Angle... - Page 4 2. Lens Setting Adjust lens holder to set holder level to 0 Lens Remove lens from lens holder. Refer to lens setting in chart (4. 1). Setting Mark Attach appropriate lens on lens holder and, adjust lens to t Setting Mark to mark W or C .
-
Page 5: Installation
WIRING 1. Terminal Configuration 2. Wiring distance Input Voltage DC 12V DC 24V Size of Wire AWG 22 Up to 350m Up to 3400m (Dia. 0.65mm) (1150ft) (11000ft) AWG 20 Up to 550m Up to 5200m POWER ALARM OUTPUT TAMPER (Dia. -
Page 6: Troubleshooting
Limited Warranty : TAKEX products are warranted to be free from defects in material and workmanship for 12 months from original date of shipment. Our warranty does not cover damage or failure caused by natural disasters, abuse, misuse, abnormal usage, faulty installation, improper maintenance or any repairs other than those provided by TAKEX.
