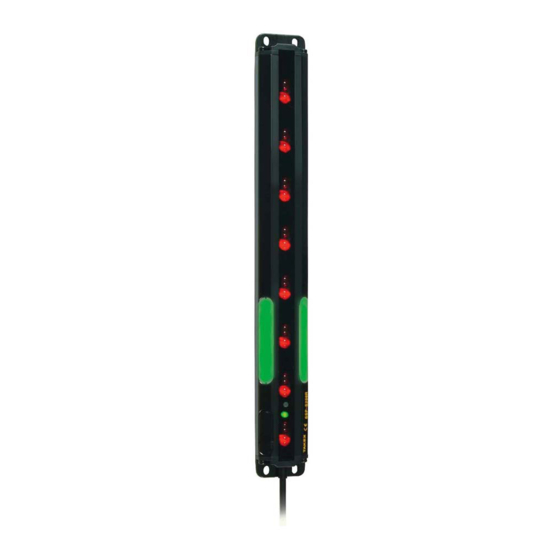

Takex SSP-S200 Series Manual

SSP-S200
Patent pending
■
Type
Detection
method
Diffuse
■
Optional Parts
Type
Dedicated
FAC-D4R2S
Cable with FAC-D4R2L
connector
FAC-D4R5S
FAC-D4R5L
SSP-BF205
SSP-BF210
Mounting
504
Detecting Detecting
Model
distance width
100㎜
SSP-S204R
700㎜
225㎜
SSP-S208R
100㎜
SSP-S204R-PJ
2m
225㎜
SSP-S208R-PJ
Model
SSP-B1 Flat type
(M4x12 SEMS screws with washers and nuts)
SSP-B2 L-shape type
Straight type
Angle type
Straight type
Angle type
S-SSP120
S-SSP245
SSP-BR1
SSP-BR2
series
● Retroreflective and Diffuse reflective
mode switching
It is possible to switch between Retroreflective and
Diffuse reflective modes by flipping an Inner switch.
You can select either Retroreflective or Diffuse reflective
mode depending on the detecting distance for use.
● Super thin body at only 13mm
thick with sturdy metal case
The metal case protects against impacts that may occur
when an item, which you are taking out from a shelve, hits
the case. Also, its space-saving thinness means the sensor
does not become an obstacle during work.
● Easy-to-see large Job indicator
On the side of the body, there are two large-sized, high-
intensity green LED Job indicators which are easy to see.
●
NPN/PNP dual output
You can select either NPN or PNP output with an inner switch of
the sensor, which will contribute to reducing your stock of sensors.
● Fault indicator
If you take out the wrong item from a shelve, red lights of the
Fault indicator flash on and off, letting you know the item is
wrong.
● Initial sensitivity setting function
When you turn on the power after selecting either Retroreflective
or Diffuse reflective mode, the optimal sensitivity is automatically
set by the initial sensitivity setting function.
Number Operation
of beams mode
4
Normal Open or
8
Normal Close
switching
4
8
Note
M12 Outer diameter: 6mm
2
M12 Outer diameter: 6mm
2
cuttable
Reflective bin-picking
light curtain sensor
Output mode Connection
Cable
Open
collector output
NPN/PNP switching
Cable with
connector
■
