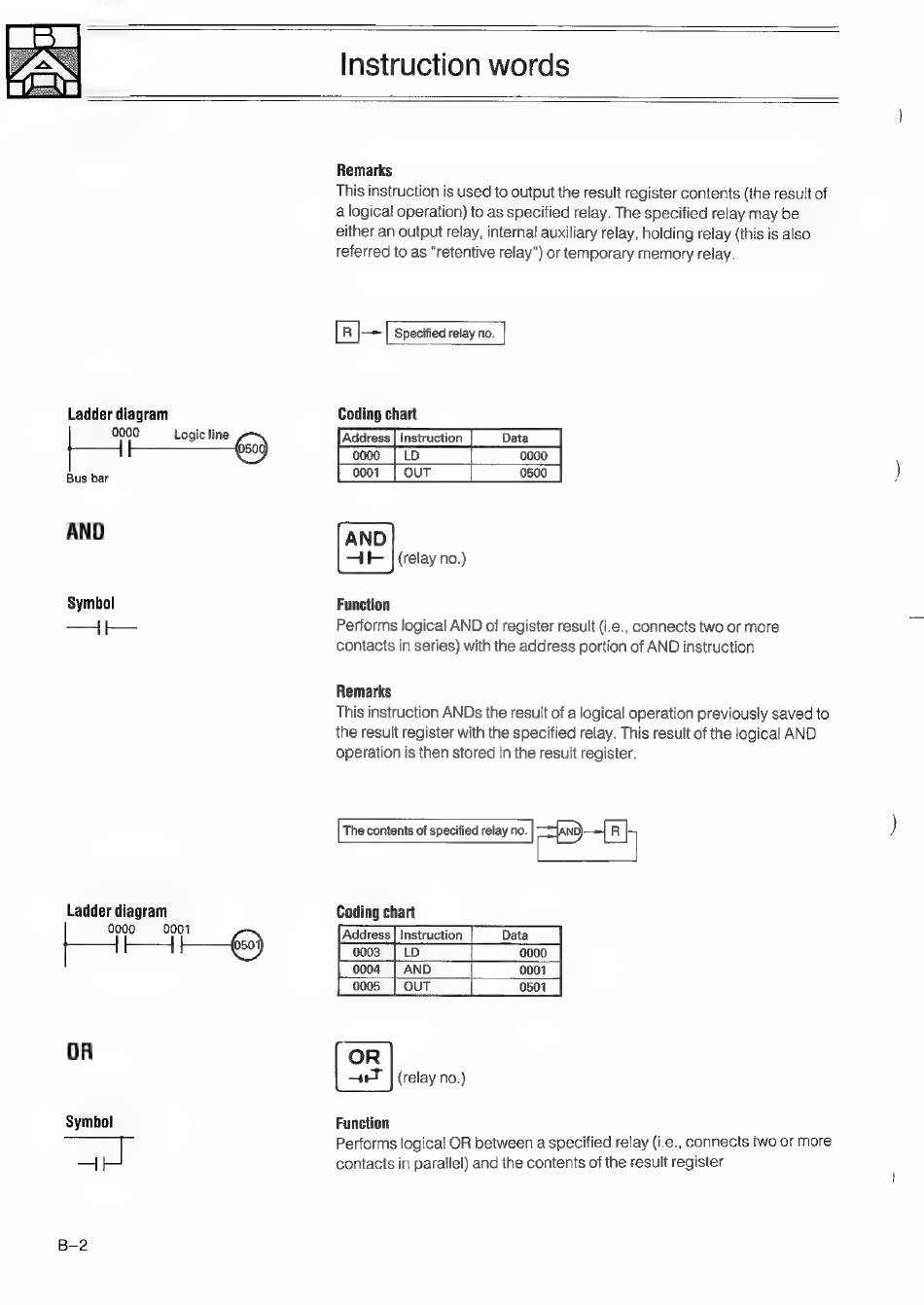

Omron SYSMAC C Series User Manual page 77

Instruction words
Ladder diagram
0000 Logic line Gc)
i T)
Bus bar
AND
Symbol
— |—
Ladder diagram
Tee 6)
OR
Symbol
Remarks
[R] —~ | Specified relay no.
Coding chart
[Address] instruction | Daa]
0000 | LD 0000
0001 | OUT 0500
AND
AF | (relay no.)
Function
Performs logical AND of register result (i.e., connects two or more
contacts in series) with the address portion of AND instruction
Remarks
This instruction ANDs the result of a logical operation previously saved to
the result register with the specified relay. This result of the logical AND
operation is then stored in the result register.
The contents of specified relay no. | IAND)—=} R h
b
Coding chart
0003 | LD 0000
0004 | AND 0001
0005 | OUT 0501
OR
s+ | (relay no.)
Function
Performs logica! OR between a specified relay (i.e., connects two or more
contacts in parallel) and the contents of the result register
