R
Z|
ScrewA
1/0 connecting cable
(32cm, 3G2C7-CN311)
Expansion I/O unit

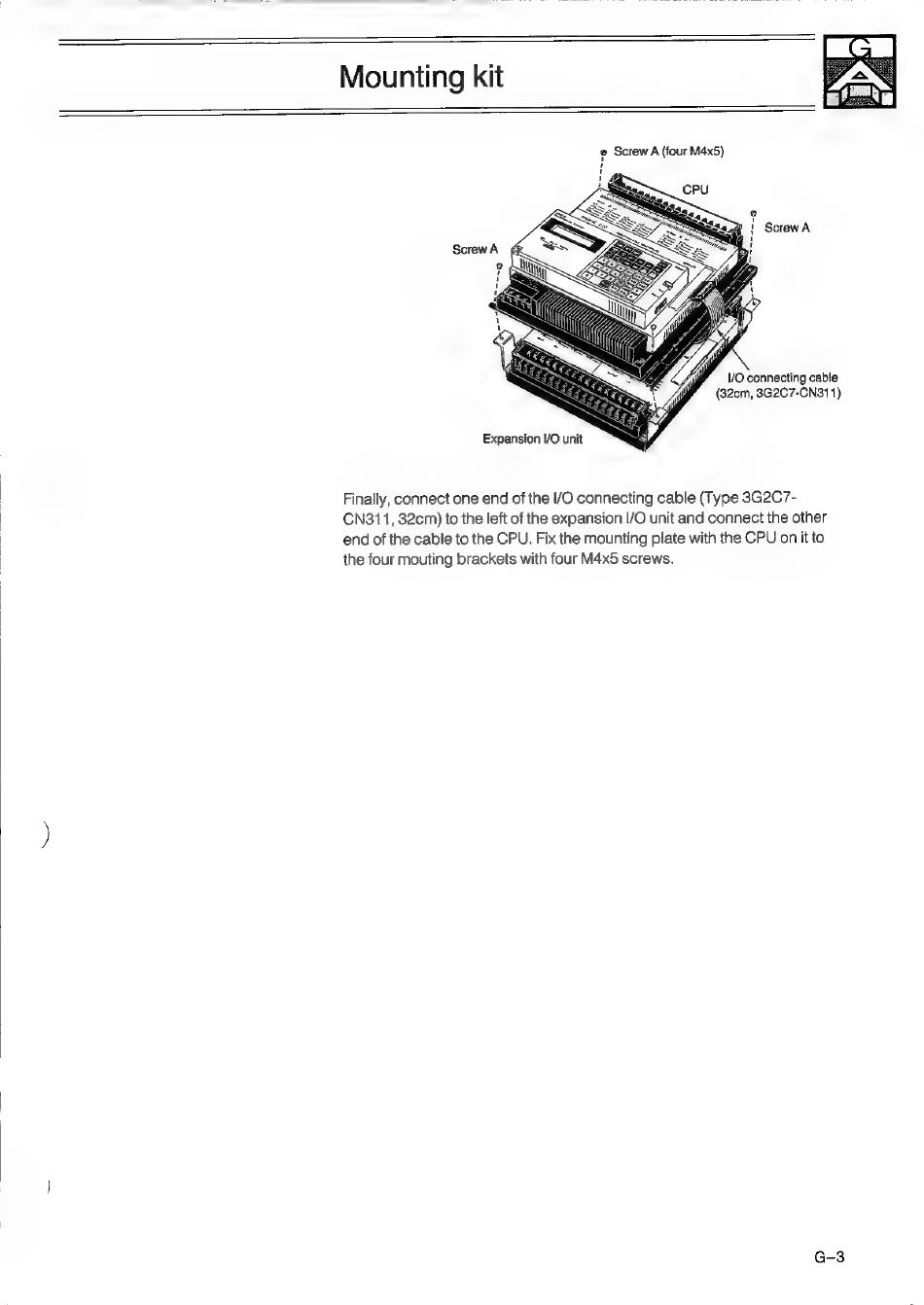

Finally, connect one end of the I/O connecting cable (Type 3G2C7-
CN311, 32cm) to the left of the expansion I/O unit and connect the other
end of the cable to the CPU. Fix the mounting plate with the CPU on it to
the four mouting brackets with four M4x5 screws.
