3Com AP9152 Quick Configuration Manual page 33

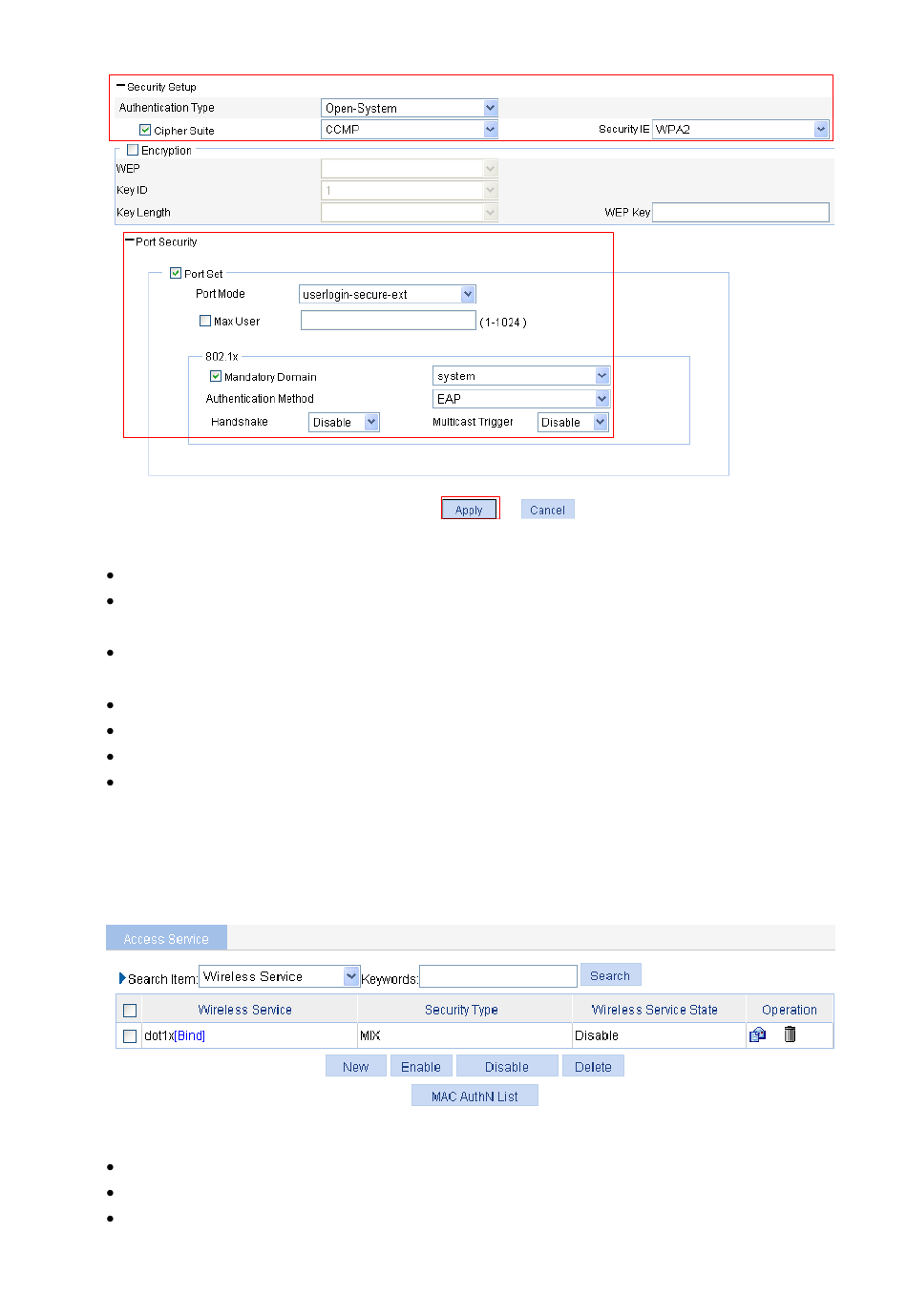

Figure 3-42 Security setu
Select Open-System from the Authentication Type drop-down list.
Select the Cipher Suite check box, select CCMP from the Cipher Suite drop-down list, and select
WPA2 from the Security IE drop-down list.
Select the Port Set check box, and select userlogin-secure-ext from the Port Mode drop-down
list.
Select system from the Mandatory Domain drop-down list.
Select EAP from the Authentication Method drop-down list.
You are recommended to disable Handshake and Multicast Trigger.
Click Apply.
6) Bind the radio to the wireless service and enable the wireless service
Select Wireless Service > Access Service from the navigation tree to enter the page as shown in the
following figure.
Figure 3-43 Bind the radio to the wireless service and enable the wireless service
Click the Bind link in the Wireless Service column, select the target radio, and click Bind.
Select the dot1x check box.
Click Enable.
7) Enable 802.11g radio (By default, the 802.11g radio is enabled. Therefore, this step is optional. )
p
3-23
