3Com AP9152 Quick Configuration Manual page 31

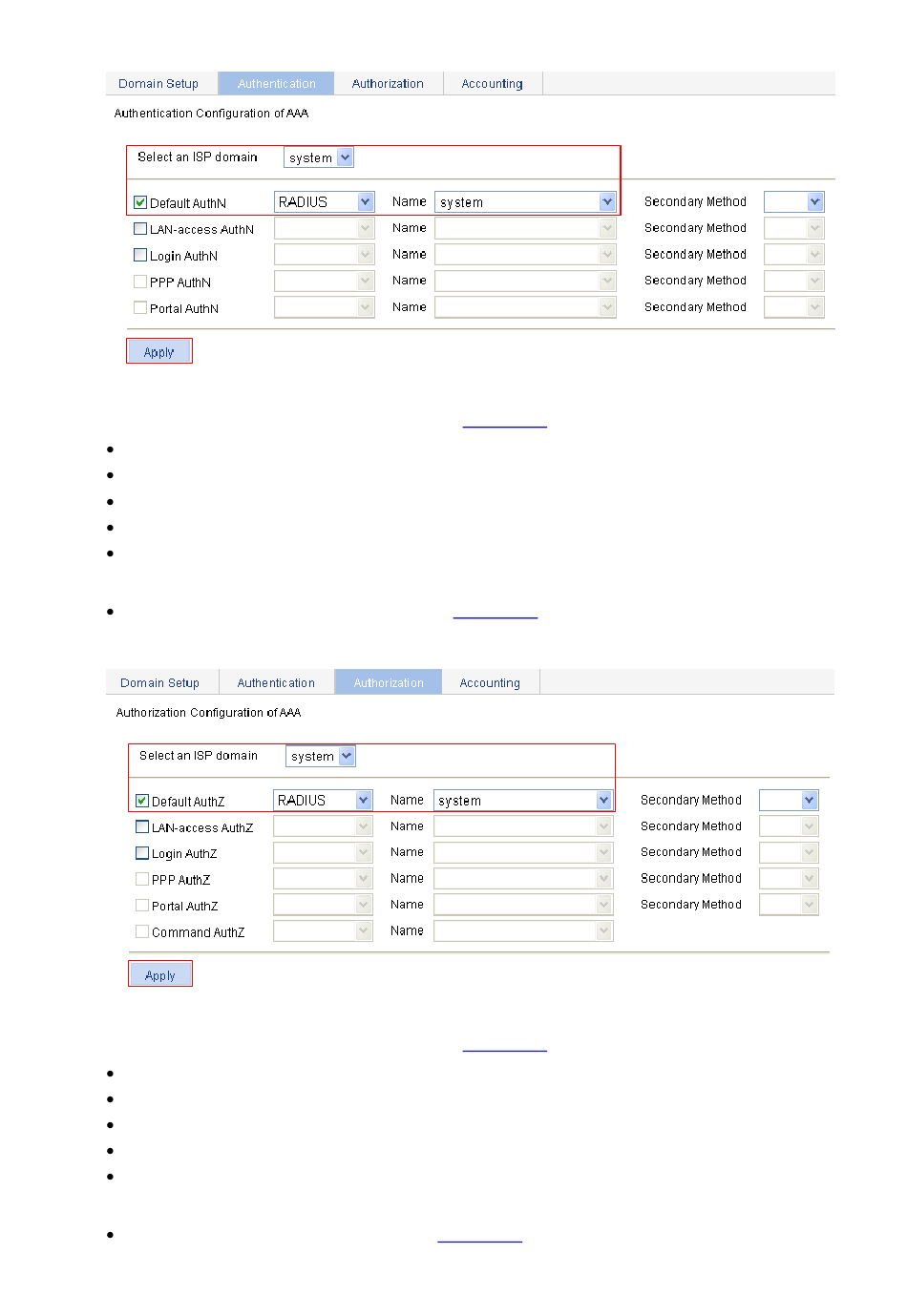

Figure 3-38 Configure the AAA authentication method for the ISP domai
Perform the following configuration, as shown in
Select the ISP domain name system.
Select the Default AuthN checkbox and then select RADIUS as the authentication mode.
Select system from the Name drop-down list to use it as the authentication scheme.
Click Apply. A configuration progress dialog box appears.
After the configuration process is complete, click Close.
# Configure the AAA authorization method for the ISP domain.
Select the Authorization tab, as shown in
Figure 3-39 Configure the AAA authorization method for the ISP domain
Perform the following configuration, as shown in
Select the domain name system.
Select the Default AuthZ checkbox and then select RADIUS as the authorization mode.
Select system from the Name drop-down list to use it as the authorization scheme.
Click Apply. A configuration progress dialog box appears.
After the configuration process is complete, click Close.
# Configure the AAA accounting method for the ISP domain, and enable Accounting Optional.
Select the Accounting tab, as shown in
Figure 3-38.
Figure 3-39.
Figure 3-39.
Figure 3-40.
3-21
