3Com AP9152 Quick Configuration Manual page 25

# Create a wireless service.
Select Wireless Service > Access Service from the navigation tree, and click New to enter the page
for creating a wireless service, as shown in

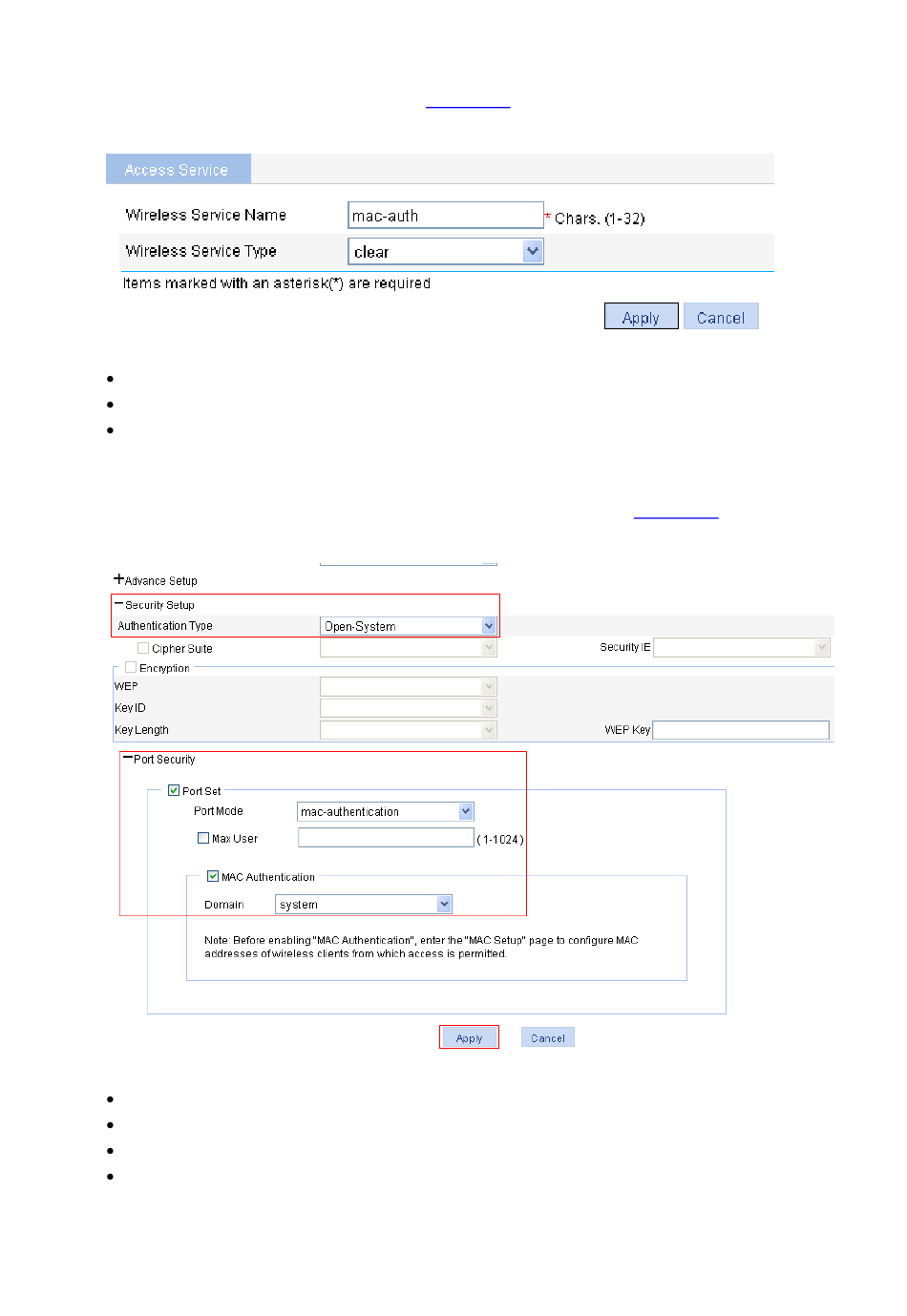

Figure 3-28 Create a wireless service
Set the wireless service name as mac-auth.
Select the wireless service type clear.
Click Apply.
5) Configure MAC authentication
After you create a wireless service, you will enter the wireless service configuration page. Then you can
configure MAC authentication on the Security Setup area, as shown in
Figure 3-29 Security setup
Select Open-System from the Authentication Type drop-down list.
Select the Port Set check box, and select mac-authentication from the Port Mode drop-down list.
Select MAC Authentication check box, and select system from the Domain drop-down list.
Click Apply.
6) Bind the radio to the wireless service and enable the wireless service
Select Wireless Service > Access Service from the navigation tree to enter the page as shown in the
following figure.
Figure 3-28:
3-15
Figure 3-29:
