Page 3: Introduction
Introduction Thank you for purchasing your REED R6210 Heat Stress WBGT Meter. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. Product Quality... -
Page 4: Features
• Low battery indicator Includes • Heat Stress WBGT Meter • Flexible Armband • Fastener for Armband with Screws • Keyring • Carabiner • Silicone Elbow for Anti-Skid • Screw for Silicone Elbow • Battery REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 5: Specifications
<80% (non-condensing) Storage Temperature: 32 to 140°F (0 to 60°C) Storage Humidity: <70% (non-condensing) Maximum Operating Altitude: 6561' (2000m) Dimensions: 4.6 x 2.4 x 1.9" (116 x 60 x 50mm) Weight: 2.8oz (80g) REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 6: Instrument Description

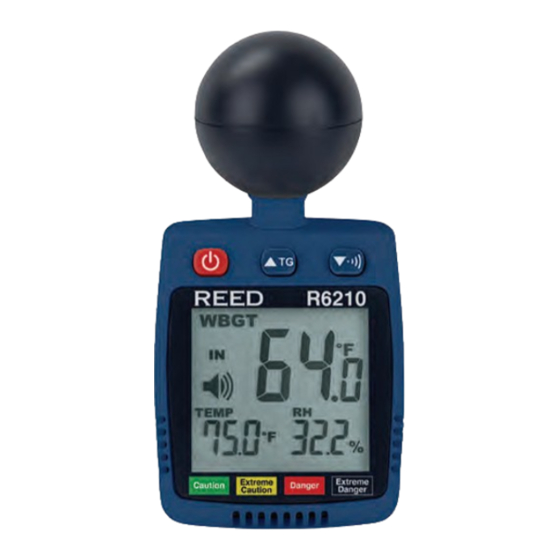

Instrument Description 1. Black Globe Sensor 5. Temperature/Humidity Sensor 2. Globe Temperature (TG)/ 6. Audible Alarm/DOWN Button UP Button 7. Tripod Mounting Screw 3. POWER Button 8. Battery Cover 4. LCD Display REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 7: Display Description
5. Heat Stress Level Indicator 2. Indoor Index Indicator 6. Humidity Measurement Value 3. Alarm Indicator 7. WBGT Measurement Value 4. Air Temperature (TEMP)/ 8. Low Battery Indicator Black Globe Temperature (TG) Measurement Values REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 8: Operating Instructions
Application Types The R6210 can be mounted several ways to meet application requirements. To wear the R6210 on your arm, assemble the kit as shown in Figure 1 and place around the arm as shown in Figure 2. Figure 1 Figure 2 continued... - Page 9 To hang the R6210, start by attaching the silicone elbow to the meter with the included fastening screw into the mount located on the back of the meter as shown in Figure 3. When attached, the meter can now be fastened to the user's waist or backpack as shown in Figure 4 and 5.
-
Page 10: Power On/Off
When the temperature mode is selected, the instrument automatically calculates the measurement using the following parameters: For outdoors with direct sun exposure: WBGT = 0.7 x Temp wet bulb + 0.2 x Temp globe + 0.1 x Temp air continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 11: Turn Alarm Function On/Off
Beep for 15 seconds, Danger (28°C to 31°C) LCD Danger Indicator Beep for 3 seconds and pause for 2 Extreme Danger >87.8°F (31°C) seconds. Repeats for 15 seconds, LCD Extreme Danger Indicator continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 12: Switching The Temperature Unit Of Measure
While the meter is off, press and hold the buttons for approximately 5 seconds to reset to factory settings. Note: When factory reset is complete, all calibration and user settings are erased and restored to the original settings. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 13: Battery Replacement
• Ensuring safe work environments Accessories and Replacement Parts • CA-05A Soft Carrying Case Don't see your part listed here? For a complete list of all accessories and replacement parts visit your product page on www.REEDInstruments.com. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 14: Product Warranty
REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance. - Page 15 REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
