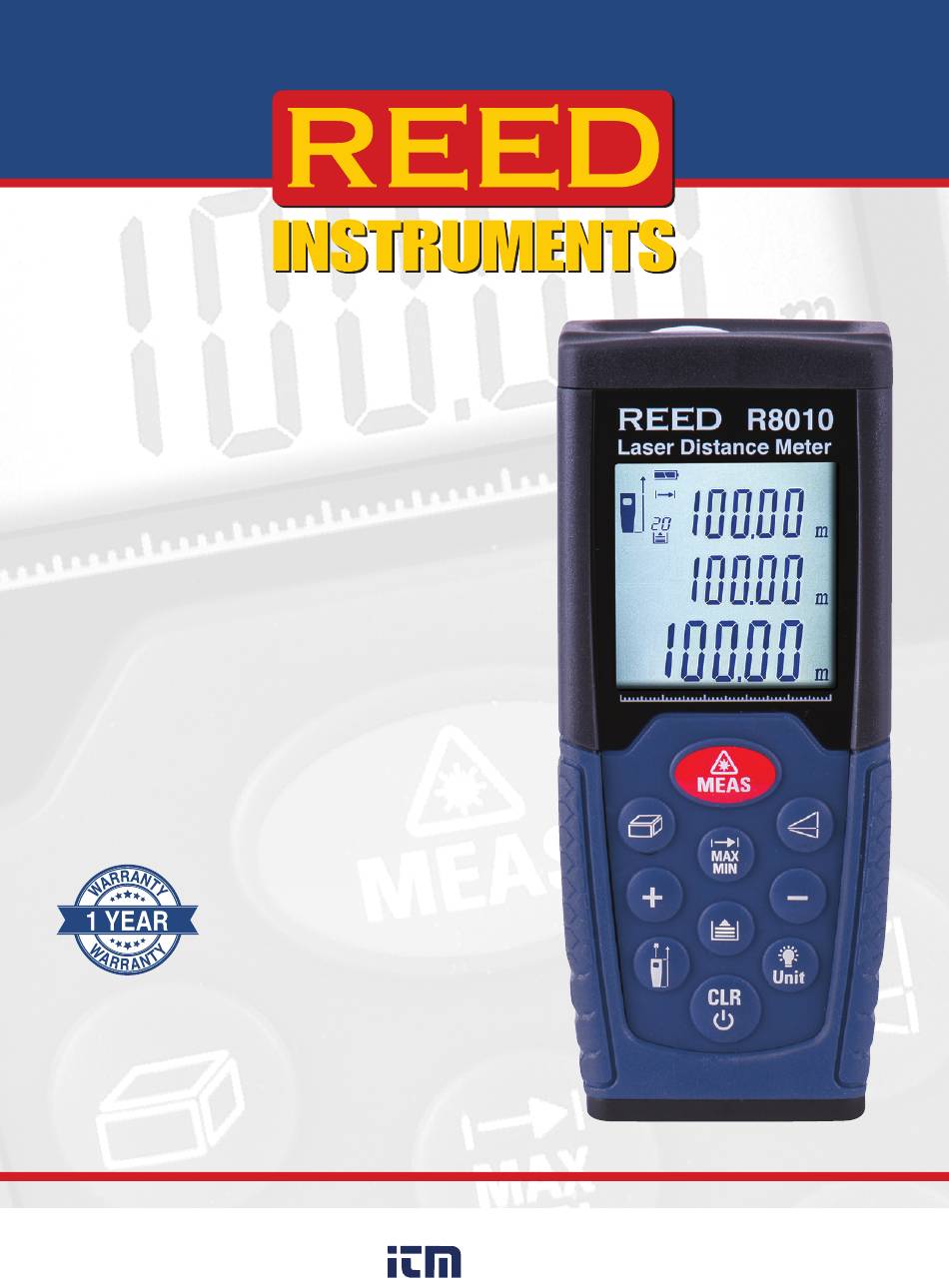

- Page 1 R8010 Laser Distance Meter Instruction Manual 1.800.561.8187 information@itm.com www. .com...
-
Page 2: Table Of Contents
Table of Contents Introduction ....................3 Product Quality ....................3 Safety ......................3 Features ......................4 Included ......................4 Specifications .....................4-5 Instrument Description .................. 5 Display Description ..................6 Operating Instructions ................6-10 Measuring Range ..................6 Target Surfaces ..................6 On and Off .................... -
Page 3: Introduction
Introduction Thank you for purchasing your REED R8010 Laser Distance Meter. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. Product Quality This product has been manufactured in an ISO9001 facility and has been calibrated during the manufacturing process to meet stated product specifications. -
Page 4: Features
Features • Designed for one-handed operation • User selectable unit of measure (imperial/metric) • Laser target pointer • Reference point selection (front or rear of instrument) • Backlit multi-line LCD display • Calculates Area, Volume and Sum of Lengths • Addition, Subtraction and indirect 2/3 point (Pythagoras) calculations •... - Page 5 Display: LCD (Multi-Line) Backlit Display: Start Point Selection: Yes (Front/Back) Reading Mode: 2 (Single/Continuous) Maximum and Minimum Functions: Calculation Functions: Addition, Subtraction, Area, Volume, Sum of Lengths, 2 Point Indirect (Pythagoras), 3 Point Indirect Internal Memory: Yes (Up to 20 Readings) Response Time: 2 secs Auto Shut-Off:...
-
Page 6: Instrument Description

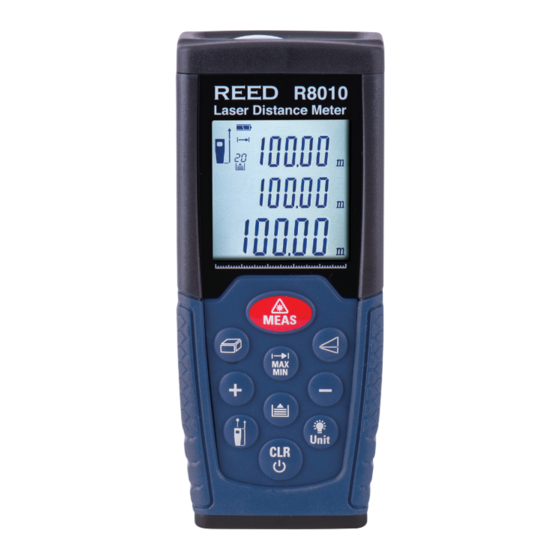

Instrument Description 1. Power/Measure button 2. Area/Volume button 3. Single/Continuous Distance Measurement function 4. Plus (+) button 5. Storage button 6. Reference button 7. Clear/Off button 8. Backlight/Unit button 9. Minus (-) button 10. Indirect Measurement button 1.800.561.8187 information@itm.com www. .com... -
Page 7: Display Description
Display Description 1. Instrument error warning 2. Continuous/Max & Min measurement 3. Memory history, call up values 4. Battery status 5. Single distance measurement 6. Laser is active 7. Reference level (front) 8. Reference level (rear) 9. Measurement indicator Area measurement Volume measurement Indirect measurement Indirect (second) measurement... -
Page 8: On And Off
On and Off The Power/Measure button turns the instrument and laser on. Press the CLR button for a few seconds to turn the instrument and laser off. The instrument turns off automatically after three minutes of inactivity. Clear Button This button cancels the last action and clears the display. Reference Point Setting The default reference point setting is from the bottom of the meter. -
Page 9: Single Distance Measurement
Single Distance Measurement Press the Power/Measure button to activate the laser. Press the button again to trigger the distance measurement. The measured value will be displayed immediately. Continuous (Tracking)/Max & Min Measurement The continuous measurement function (tracking) is used for the transferring of measurements. -
Page 10: Area Measurement
Area Measurement Press the Area/Volume button once to enter Area Measurement mode. icon will appear on the display to confirm you are in the correct mode. Press the Power/Measure button to take the first measurement (ie: length), press the Power/Measure button again to take the second measurement (ie: width). -
Page 11: Three Point Measurement
Three Point Measurement Press the Indirect Measurement button twice, the icon will appear on the display. Aim at the highest point (1) and press the Power/Measure button to trigger the measurement. Holding the instrument as horizontal as possible, press and hold the Power/Measure button to trigger continuous measurement and sweep the laser up and down over the ideal target point (2), press the Power/Measure button again to confirm the value. -
Page 12: Battery Replacement
Battery Replacement When the low battery symbol appears on the display, replace the batteries. Remove the battery cover on the back and insert two (2) new "AAA" batteries. Note: If the unit will not be used for a long period of time, remove the batteries to avoid battery leakage and corrosion of the battery contacts. -
Page 13: Product Warranty
REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance. - Page 14 TEST & MEASURE WITH CONFIDENCE Access Our Product Guide www.REEDInstruments.com 1.800.561.8187 information@itm.com www. .com...
