Summary of Contents for Reed Instruments R7150

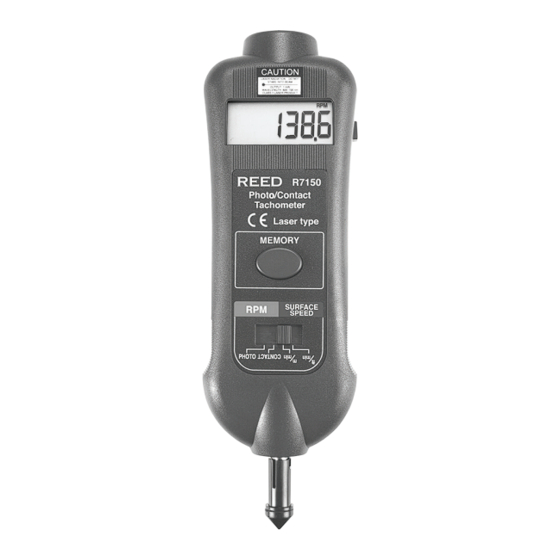

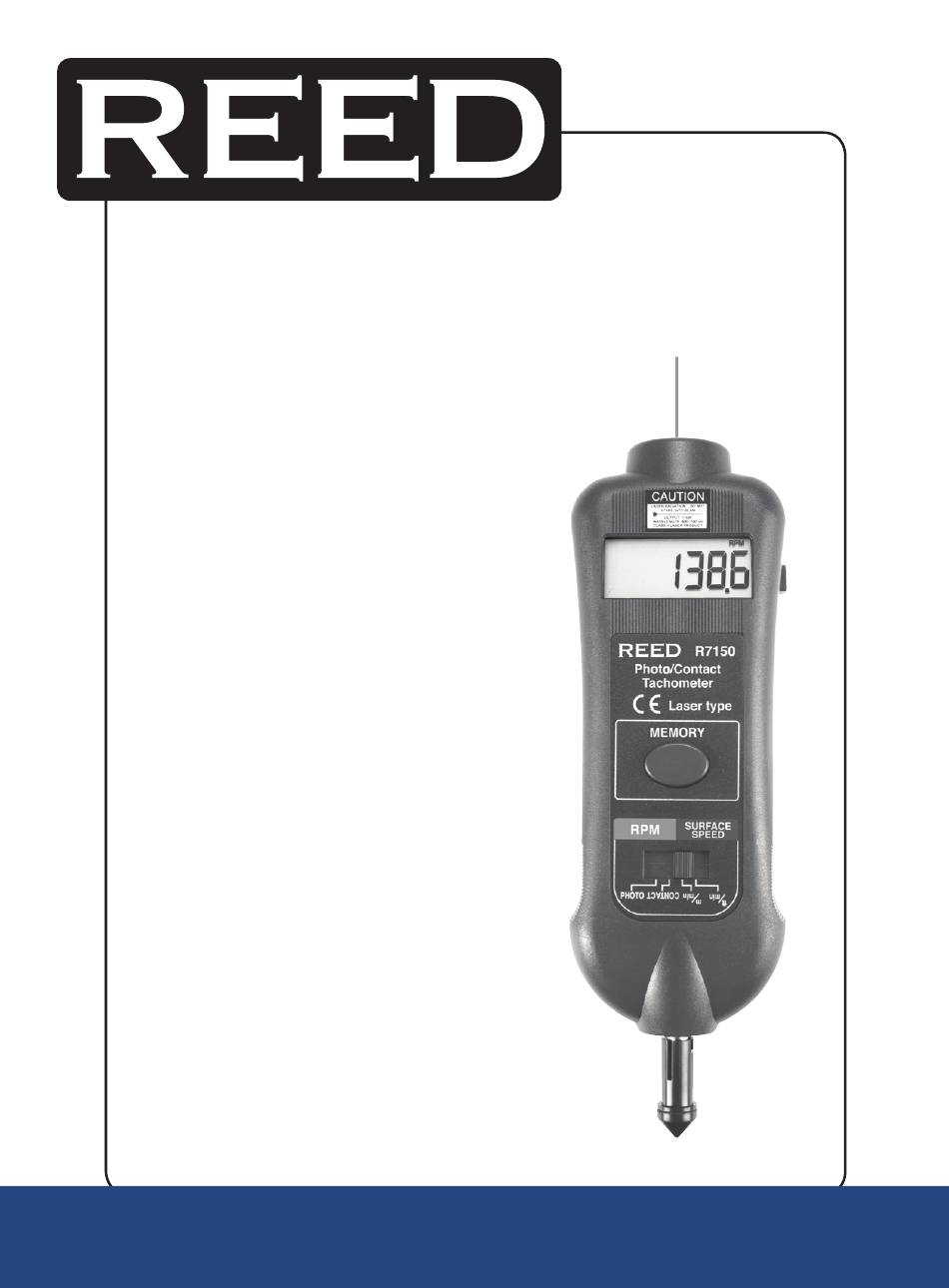

- Page 1 INSTRUMENTS R7150 Model Contact / Non-Contact Tachometer with Laser Instruction Manual REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 2: Table Of Contents
Photo: 0.1 RPM (≤999.9) / 1 RPM (≥1000) Contact: 0.1 RPM (≤999.9) / 1 RPM (≥1000) INSTRUMENTS Surface: 0.01 m/min (≤99.9) / 0.1 m/min (≥100) / 0.1 ft/min (≤999.9) / 1 ft/min (≥1000) REED Instruments INSTRUMENTS 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... - Page 3 8.5 x 2.6 x 1.5” (215 x 65 x 38 mm) Weight: 10.6oz (300g) Optional accessories: Replacement Measuring Wheel (AS-35) Replacement Cone Tip (CONE) Reflective Tape (RT100) Soft Carrying Case (CA-05A) Soft Carrying Case (C-820) INSTRUMENTS REED Instruments INSTRUMENTS 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 4: Instrument Description
Move the Function Switch to the Contact RPM position. Press the Measure Button and lightly pressing the RPM Adapter against the rotating axis. Release the Measure Button when the reading stabilizes. INSTRUMENTS REED Instruments INSTRUMENTS 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... - Page 5 Push the Memory Call Button again - To display the minimum value ( dn and the min. value will be displayed alternately). Max Value Last Value Display reading Min Value Measuring Time INSTRUMENTS REED Instruments INSTRUMENTS 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 6: Battery Replacement
• Open the Battery Cover, using a flat screwdriver or small coin. • Replace batteries correctly and place the cover back on. For service on this or any other REED product or information on other REED products, contact REED Instruments at info@reedinstruments.com Notes _________________________________________ ________________________________________________...
