- Page 1 R8050 Sound Level Meter Instruction Manual www.REEDINSTRUMENTS.com REED-Direct.com info@REED-Direct.com 1.888.610.7664...
-
Page 2: Table Of Contents
Product Disposal and Recycling .............. 10 Product Support ..................11 Introduction Thank you for purchasing your REED R8050 Sound Level Meter. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. -
Page 3: Product Quality
Product Quality This product has been manufactured in an ISO 9001 facility and has been calibrated during the manufacturing process to meet stated product specifications. If a certificate of calibration is required please contact the nearest authorized REED distributor or authorized Service Center. Please note an additional fee for this service will apply. -
Page 4: Specifications
Specifications Measuring Ranges: 30 to 130dB Low: 30 to 100dB High: 60 to 130dB Dynamic Range: 70dB (In Each Range) Accuracy: ±1.4dB Resolution: 0.1dB Response Time: 500mS Frequency Range: 31.5Hz to 8kHz Frequency Weighting: A, C Time Weighting: Fast/Slow (125ms and 1s) Microphone: 0.5" (12.7mm) Electret Condenser Display: 4-Digit LCD Backlit Display: Data Hold: Max: Alarm Indicators: Over (Visual On-Screen) Auto Shut-off: Yes (After 15 minutes) Tripod Mountable: Low Battery Indicator: Power Supply:... -
Page 5: Instrument Description

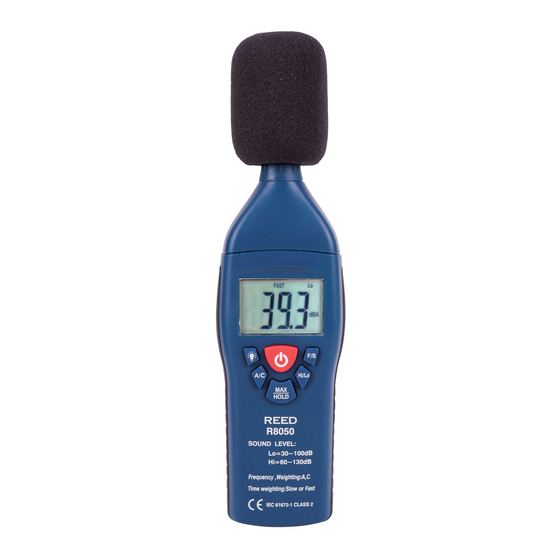

Instrument Description 6. Time Weighting Button 1. Windscreen 7. Level Range Button 2. Display 8. MAX/HOLD Button 3. Power Button 9. Microphone 4. Backlight Button 10. Battery Cover 5. Frequency Weighting Button www.REEDINSTRUMENTS.com REED-Direct.com info@REED-Direct.com 1.888.610.7664... -
Page 6: Display Description
Display Description MAX HOLD FAST SLOW Hi Lo BAT OVER 1. MAX Value Indicator 6. Low Battery Indicator 2. Data Hold Indicator 7. Measured dB Value 3. Fast Weighting Indicator 8. Frequency Weighting Indicator 4. Slow Weighting Indicator 9. Over Range Indicator 5. Hi/Lo Range Indicator Measurement Considerations • Direct contact with strong winds or blowing air on the microphone may cause measurement errors. -
Page 7: Operating Instructions
Operating Instructions Turn the meter on or off by pressing the Power Button. Press the Time Weighting Button to select the desired Response Time. If the sound source consists of short bursts, set the response to FAST (125ms). To measure average sound level, select SLOW (1s). Press the Frequency Weighting Button to select the Frequency. Select "A"... -
Page 8: Calibration Procedure
Calibration Procedure To calibrate the REED R8050, an external calibrator that can provide a 94.0dB signal at 1kHz (REED R8090) and a small screw-driver are required. Follow the steps below to calibrate the instrument. 94dB 114dB (1KHz) Open the battery compartment and locate the two calibration potentiometers behind the 9V battery (see diagram). Turn the meter ON Select 'C' weighting mode Select 'FAST' response mode Place the REED R8050 micro- phone into the calibrator. -
Page 9: Battery Replacement
Battery Replacement When the "BAT" icon appears on the LCD, the battery should be replaced. Remove the screw with a phillips screwdriver and open the battery cover. Replace the 9V battery. Place the battery cover back and tighten the screw. Accessories and Replacement Parts • SB-01 Replacement Windshield Ball • R8090 Sound Level Calibrator • R1500 Tripod... -
Page 10: Product Care
REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance. -
Page 11: Product Support
Product Support If you have any questions on your product, please contact your authorized REED distributor or REED Instruments Customer Service by phone at 1-877-849-2127 or by email at info@reedinstruments.com. Please visit www.REEDINSTRUMENTS.com for the most up-to-date manuals, datasheets, product guides and software. Product specifications subject to change without notice. - Page 12 TEST & MEASURE WITH CONFIDENCE CHECK OUT OUR LATEST PRODUCTS! www.REEDINSTRUMENTS.com REED-Direct.com info@REED-Direct.com 1.888.610.7664...
