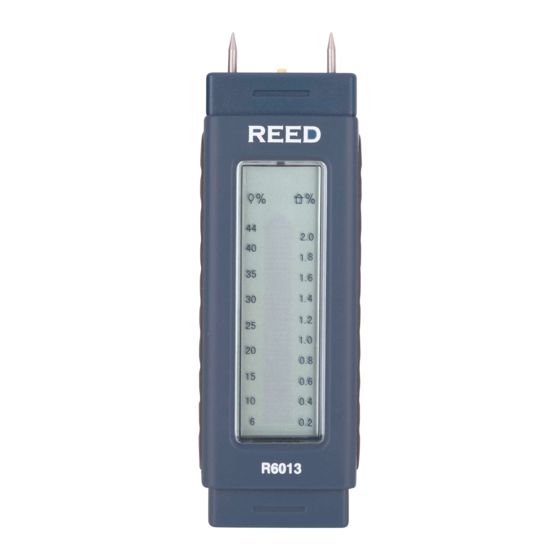

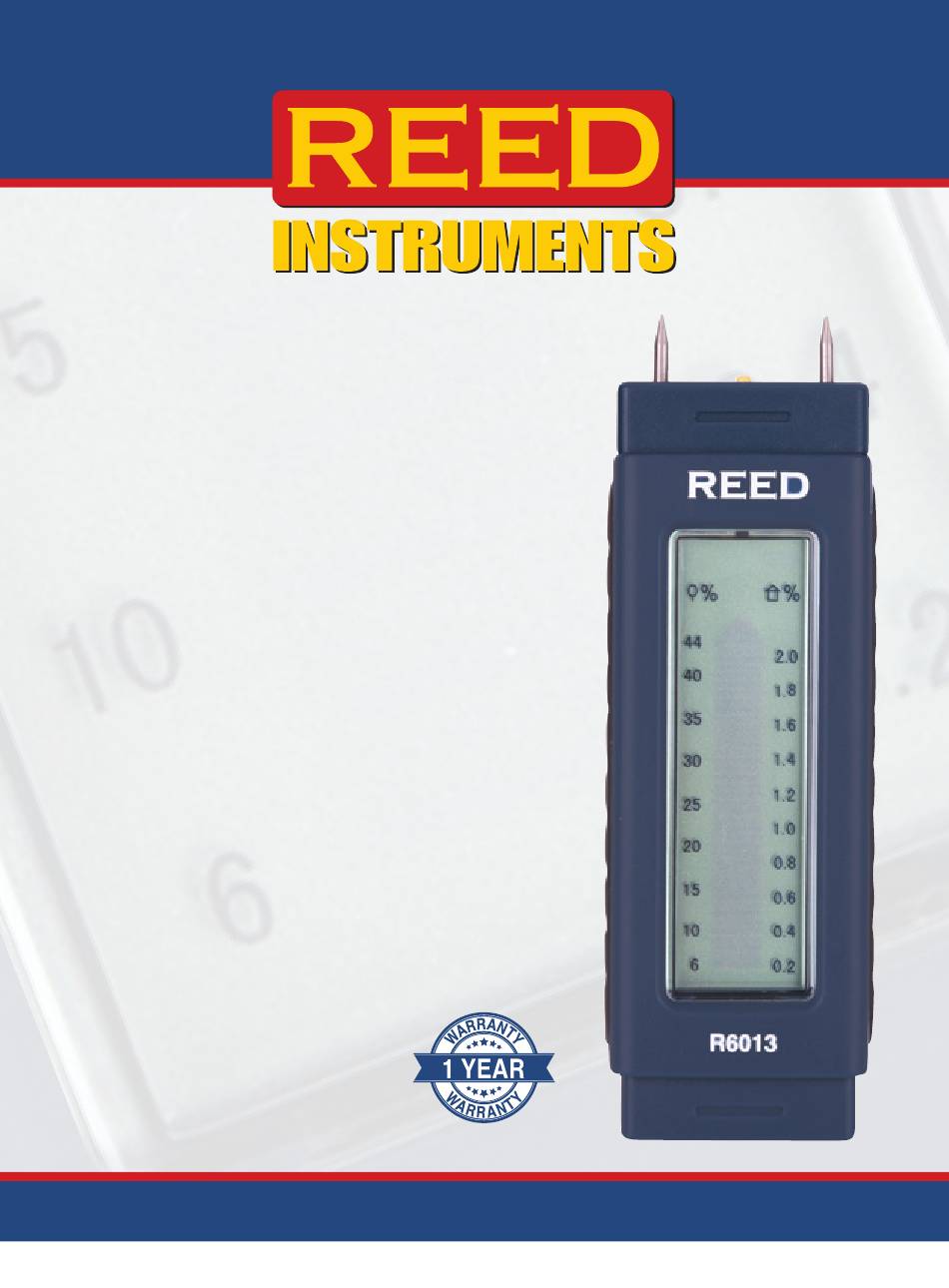

- Page 1 R6013 Pocket Size Moisture Detector Instruction Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 1 R6013 Pocket Size Moisture Detector Instruction Manual REED-Direct.com info@REED-Direct.com 1.888.610.7664...
-
Page 2: Table Of Contents
Table of Contents Introduction ....................3 Product Quality ................... 3 Safety ......................3 Features ...................... 3 Specifications ..................... 4 Included ...................... 4 Display Description ..................4 Operating Instructions ................5-6 Getting Started ..................5 Changing the Electrodes (Pins) ............. 5 Built-in Measurement Verification ............5-6 Built-in Battery Check ................ -
Page 2: Table Of Contents
Table of Contents Introduction ....................3 Product Quality ................... 3 Safety ......................3 Features ...................... 3 Specifications ..................... 4 Included ...................... 4 Display Description ..................4 Operating Instructions ................5-6 Getting Started ..................5 Changing the Electrodes (Pins) ............. 5 Built-in Measurement Verification ............5-6 Built-in Battery Check ................ -
Page 3: Introduction
Introduction Thank you for purchasing your REED R6013 Pocket Size Moisture Detector. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your detector will provide years of reliable service. Product Quality... -
Page 3: Introduction
Introduction Thank you for purchasing your REED R6013 Pocket Size Moisture Detector. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your detector will provide years of reliable service. Product Quality... -
Page 4: Specifications
Specifications Measuring Ranges: Wood: 6 to 44% Moisture Content Materials: 0.2 to 2.0% Moisture Content Accuracy: Wood: ±1% Materials: ±0.05% Resolution: Wood: 1% Materials: 0.1% Sensor Type: Contact Pins Display: LCD (Bargraph) Replaceable Pins: Auto Shut-off: Yes (after 15 mins) Low Battery Indicator: Power Supply: 3 CR2032 batteries Product Certifications: Operating Temperature: 32 to 104°F (0 to 40°C) -
Page 4: Specifications
Specifications Measuring Ranges: Wood: 6 to 44% Moisture Content Materials: 0.2 to 2.0% Moisture Content Accuracy: Wood: ±1% Materials: ±0.05% Resolution: Wood: 1% Materials: 0.1% Sensor Type: Contact Pins Display: LCD (Bargraph) Replaceable Pins: Auto Shut-off: Yes (after 15 mins) Low Battery Indicator: Power Supply: 3 CR2032 batteries Product Certifications: Operating Temperature: 32 to 104°F (0 to 40°C) -
Page 5: Operating Instructions
Operating Instructions Getting Started Remove the protective cap to expose the electrodes. The meter automatically switches ON when the cap is removed. Secure the cap on the bottom side of the meter. Press the measuring electrodes as far as possible into the material. Read the measurement values on the display. -
Page 5: Operating Instructions
Operating Instructions Getting Started Remove the protective cap to expose the electrodes. The meter automatically switches ON when the cap is removed. Secure the cap on the bottom side of the meter. Press the measuring electrodes as far as possible into the material. Read the measurement values on the display. -
Page 6: Built-In Battery Check
During the verification process, the meter should measure as follows: Wood: 27% ±2% Building Materials: 1.25% ±0.1% If during the verification process the meter does not read within these parameters, your instrument should be sent in for servicing. Built-in Battery Check Make contact with test pins 3 and 4 (as shown below) which are located on the top of the protective cap. -
Page 6: Built-In Battery Check
During the verification process, the meter should measure as follows: Wood: 27% ±2% Building Materials: 1.25% ±0.1% If during the verification process the meter does not read within these parameters, your instrument should be sent in for servicing. Built-in Battery Check Make contact with test pins 3 and 4 (as shown below) which are located on the top of the protective cap. -
Page 7: Auto Power Off
• Construction and Building Projects • Remediation and Restoration • Woodworking Accessories and Replacement Parts R6013-P Replacement Pin Don't see your part listed here? For a complete list of all accessories and replacement parts visit your product page on www.reedinstruments.com. Product Care To keep your instrument in good working order we recommend the following: • Store your product in a clean, dry place. -
Page 7: Auto Power Off
• Construction and Building Projects • Remediation and Restoration • Woodworking Accessories and Replacement Parts R6013-P Replacement Pin Don't see your part listed here? For a complete list of all accessories and replacement parts visit your product page on www.reedinstruments.com. Product Care To keep your instrument in good working order we recommend the following: • Store your product in a clean, dry place. -
Page 8: Product Warranty
REED Instruments total liability is limited to repair or replacement of the product. REED Instruments shall not be liable for damages to goods, property, or persons due to improper use or through attempts to utilize the instrument under conditions which exceed the designed capabilities. -
Page 8: Product Warranty
REED Instruments total liability is limited to repair or replacement of the product. REED Instruments shall not be liable for damages to goods, property, or persons due to improper use or through attempts to utilize the instrument under conditions which exceed the designed capabilities. - Page 9 TeST & MeaSuRe wITh ConfIDenCe CheCk ouT ouR laTeST PRoDuCTS! GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 9 TeST & MeaSuRe wITh ConfIDenCe CheCk ouT ouR laTeST PRoDuCTS! REED-Direct.com info@REED-Direct.com 1.888.610.7664...
