Related Manuals for Reed Instruments R6000
Summary of Contents for Reed Instruments R6000

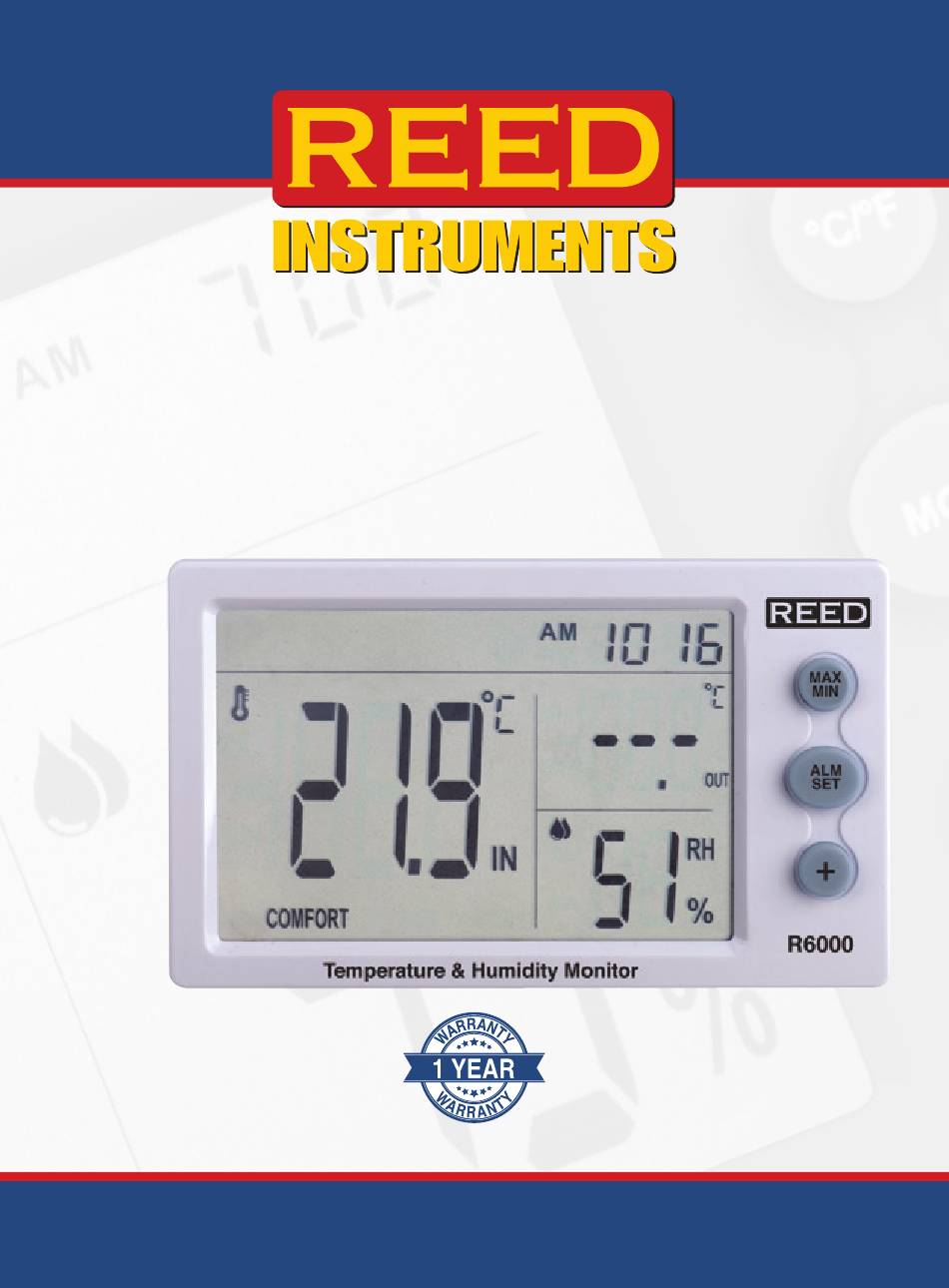

- Page 1 R6000 Temperature and Humidity Meter Instruction Manual REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 2: Table Of Contents
Product Disposal and Recycling ..............9 Product Support ..................9 Introduction Thank you for purchasing your REED R6000 Temperature and Humidity Meter. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. -
Page 3: Product Quality
Servicing should only be provided by an authorized service center. Features • Measures indoor/outdoor temperature and humidity • User selectable unit of measure °F/°C • Internal memory stores min/max temperature and humidity readings • Waterproof sensor for outdoor temperature measurement with 6' (72") cable • Built-in alarm clock and time display • Desktop or wall mount Included • Sensor Cable • Battery REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 4: Specifications
1%RH Accuracy: 40 to 80% RH: ±5%RH <40 and >80% RH: ±8%RH General Specifications Humidity Comfort Icons: Wet/Comfort/Dry Sampling Time: 10 seconds Temperature Probe Length: 6' (72") Alarm Clock/ Time Display: Max/Min Functions: Yes (IN/OUT/RH) Product Certifications: CE, RoHS Battery: 1 x AAA Battery Operating Temperature: -10 to 50°C (14 to 122°F) Dimensions: 5.1 x 1 x 3.1" (130 x 22 x 78mm) Weight: 3.9oz (110g) REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 5: Instrument Description

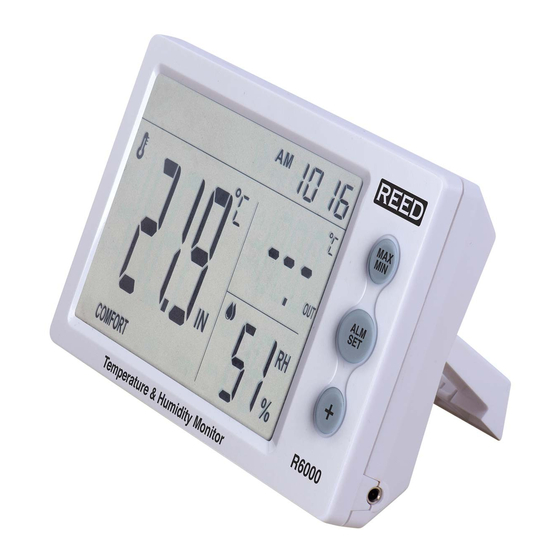

Instrument Description R6000 Temperature & Humidity Monitor 1. MAX/MIN Value Button 5. Wall Mounting Hole 2. Alarm/Clock Set Button 6. Kickstand 3. Increase Digit Button 7. Battery Cover 4. External Probe Input Jack 8. °C/°F Button REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 6: Display Description
15. Minimum Temperature Value 6. Minimum Temperature Value Measured by External Sensor Measured by Inner Sensor 16. Humidity Indicator 7. Inner Temperature Sensor Indicator 17. Relative Humidity Indicator 8. Environmental Comfort 18. Humidity Measurement Value Level Indicators 19. Minimum Humidity Value 9. AM/PM Indicator 20. Maximum Humidity Value 10. Time Indicator REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 7: Operating Instructions
Press the button again to set the alarm to on or off. Press the button to toggle the Alarm icon on or off. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 8: Resetting Maximum And Minimum Readings
Selecting the Unit of Measure (°C/°F) Using a paperclip, press the °C/°F toggle button on the back of the R6000. When the button is pressed, a beep will sound indicating the unit of measure has been switched. Battery Replacement When the battery needs to be replaced, open the battery cover by sliding the cover off in the direction of the arrow (rear of meter). -
Page 9: Product Warranty
REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance. - Page 10 TesT & MeasuRe wITH ConfIdenCe CHeCk ouT ouR laTesT PRoduCTs! REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
