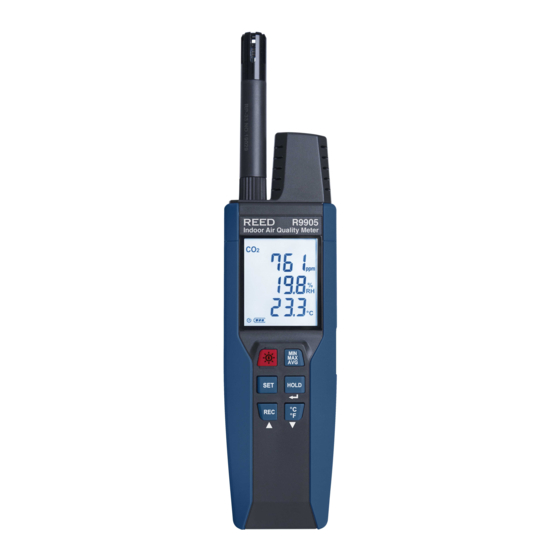

- Page 1 R9905 Data Logging Indoor Air Quality Meter Instruction Manual REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 2: Table Of Contents
Setting the Auto-Power Off Time ............14 Setting the Time and Date ..............15 Data Logging ..................16 Upload Recorded Data to PC .............. 16 Software Installation ................16 Clearing Stored Data ................16 continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 3: Introduction
Product Disposal and Recycling .............. 22 Product Support ..................22 Introduction Thank you for purchasing your REED R9905 Data Logging Indoor Air Quality Meter. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. -
Page 4: Product Quality
• Data hold, Max/Min and Average functions • Record up to 32,000 datapoints and keep track with internal time and date stamp • User selectable sampling rate from 1 to 60 mins • Low battery indicator and auto shut-off REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 5: Included
5001 to 30,000ppm: ±(150 ppm +5% rdg.) Resolution: 1ppm Warm-up Time: 20 seconds Sampling Rate: 2 seconds General Specifications Display: Backlit Display: Data Hold: Min, Max, Avg Functions: Short Term Exposure Limit (STEL): Yes (15 minutes) continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... - Page 6 -4 to 140°F (-20 to 60°C) Operating Humidity Range: 0 to 90% Storage Humidity Range: 10 to 75% Maximum Operating Altitude: 6561' (2000m) Dimensions: 11.2 x 2.6 x 1.5" (284 x 65 x 39mm) Weight: 10.7oz (304g) REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 7: Instrument Description
Instrument Description R9905 Indoor Air Quality Meter Temp/Humidity Probe REC Button Sensor °C/°F Button LCD Display 10. CO Calibration Inlet Power and Backlight Button 11. USB Interface MIN MAX AVG Button 12. Tilt Stand SETUP Button 13. Battery Compartment DATA HOLD Button REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 8: Display Description
Indicator 18. Battery Status Indicator 8. Data Hold Indicator 19. Minimum Indicator 9. CO Measurement Indicator 20. Maximum Indicator 10. CO Reading 21. Average Indicator 11. Relative Humidity/ 22. Calibration Mode Temperature Reading REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 9: Operating Instructions
Data Hold Press the button to freeze the current reading on the display. Press the button again to resume normal operation. Note: When the Data Hold function is enabled the buttons are disabled. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 10: Min/Max And Average Readings
While in this function, the meter is displaying the current measurement values only. Press and hold the button for 2 seconds to exit MAX/MIN/AVG mode and resume normal operation. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 11: Backlight
The sampling rate can be set from "1" second (00:01) up to 60 minutes and 59 seconds (60:59). Press the buttons to adjust the required sampling rate by minutes or seconds. Press the button to confirm each selection. Figure 1 continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 12: Setting The Relative Humidity/Temperature Offset
Follow steps 1 through 8 when "ALT" appears on the LCD as shown in Figure 4. Press the buttons to increase or decrease the 1st digit. Press the button to confirm selection and Figure 4 skip to the 2nd digit. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 13: Set Co Alarm Values (Hi/Lo)
4th digit. 10. Press the button to confirm selection and skip to the 5th digit. 11. Press the button to confirm selection and skip to the low CO 2 alarm value setup. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 14: Setting The Auto-Power Off Time
Press the button to confirm selection and Figure 6 skip to the next parameter. Note: At any time, you can press the button to exit setup mode and resume normal operation. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 15: Setting The Time And Date
The internal clock will keep accurate time when the meter is powered off. When new batteries are installed the clock will have to be reset. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 16: Data Logging
LCD and the recording session stops. Upload Recorded Data to PC Connect the R9905 via the included USB cable to a port on your PC to download the recorded data. For steps to follow on how to use the software, please refer to the instructions provided in the HELP section within the software program. -
Page 17: Calibration Mode
Calibration Mode Calibration The R9905 can be field calibrated using the internal calibration menu. These adjustments are intended to make calibration changes to match a user's calibration standards and is not considered a certified calibration. For multi-point calibration and certification, please contact the nearest authorized REED distributor or authorized service center. -
Page 18: Humidity/Temperature Calibration
Insert the tip of the meter into the 75% Humidity Calibration Standard (REED R9975). If using a different Hi calibration standard, press the buttons to increase/decrease the humidity value to match the humidity standard. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 19: Calibrating Lo Rh
The upper part of the LCD will display the "Lo" indicator while the lower part of the LCD will display the "Lo" Temp calibration data point. Insert the meter into the standard temperature chamber. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 20: Battery Replacement
• Greenhouses • Factories • Hotels • Hospitals • Areas where high levels of carbon dioxide are generated Accessories and Replacement Parts • R9905-PROBE Replacement Temperature and Humidity Probe • R9933 Humidity Calibration Standard, 33% • R9975 Humidity Calibration Standard, 75% •... -
Page 21: Appendix A - Recommended Guidelines
• If your instrument isn't being used for a period of one month or longer please remove the battery. • Clean your product and accessories with biodegradable cleaner. Do not spray the cleaner directly on the instrument. Use on external parts only. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 22: Product Warranty
REED Instruments total liability is limited to repair or replacement of the product. REED Instruments shall not be liable for damages to goods, property, or persons due to improper use or through attempts to utilize the instrument under conditions which exceed the designed capabilities. - Page 23 TEST & MEASURE WITH CONFIDENCE CHECK OUT OUR LATEST PRODUCTS! REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
