Introduction Thank you for purchasing your REED R1600 Vane Anemometer, Bluetooth ® Smart Series. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. -
Page 4: Fcc Statement
FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 5: Ic Statement
IC statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence- exempt RSS(s). Operation is subject to the following two conditions: This device may not cause interference. This device must accept any interference, including interference that may cause undesired operation of the device. -
Page 6: Features
Features • Measures air velocity (m/s, ft/min, km/h and mph), air temperature and humidity • Easy to operate, designed for one hand operation • Integrated display provides flexibility for use without mobile devic • Magnetic backing allows instrument to be mounted to metallic surfaces •... -
Page 7: Specification
Specifications Air Velocity (Anemometer) Measuring Range: fpm: 118 to 4921 m/s: 0.6 to 25 km/h: 2.1 to 90 mph:1.3 to 55.9 Accuracy: fpm: ±(40fpm +3.5%) m/s: ±(0.2m/s +3.5%) km/h: ±(0.8km/h +3.5%) mph: ±(0.5mph +3.5%) Resolution: fpm:1 m/s: 0.1 km/h: 0.1 mph: 0.1 Temperature Measuring Range:... - Page 8 Real-Time Clock and Date Stamp: Yes (with Smart Series App) Customizable Sampling Rate: Overrange Indicator: Auto Shut-off: Yes (adjustable) Tripod Mountable: Magnetic Backing: Low Battery Indicator: Power Supply: 4 x AAA Batteries Battery Life: Approx. 50 hours (sampling time dependent) Connectivity: Bluetooth ®...
-
Page 9: Instrument Description

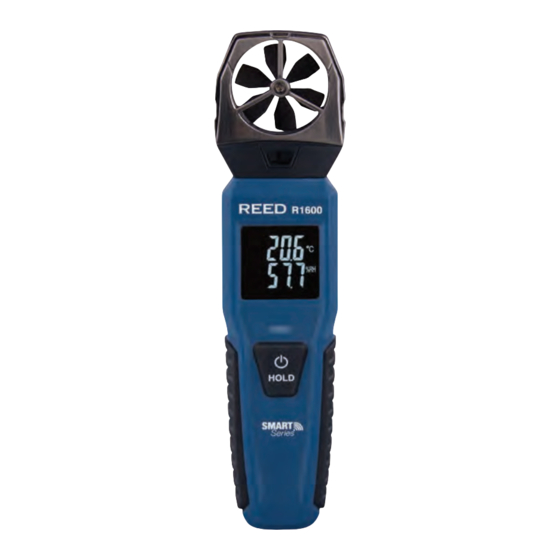

Instrument Description 1. Air Flow Sensor 5. Bluetooth Status ® Indicator Light 2. Temperature and Humidity Sensor 6. Tripod Mounting Screw 3. LCD Display 7. Battery Cover Lock 4. POWER/HOLD Button 8. Battery Cover 1.888.610.7664 www.calcert.com sales@calcert.com... -
Page 10: Display Description
Display Description 1. Temperature 5. Temperature Unit Measurement Value of Measure 2. Air Velocity/ 6. Data Hold Indicator Relative Humidity 7. Bluetooth Indicator ® Measurement Value 8. Low Battery Indicator 3. Air Velocity Unit of Measure 4. Humidity Unit of Measure 1.888.610.7664 www.calcert.com sales@calcert.com... -
Page 11: Reed Smart Series
GET IT ON Full specifications and Operating System compatibility can be found on the product page at www.REEDInstruments.com/r1600. If you have specific questions elated to your application and/or questions related to software setup and functionality, please contact the nearest authorized distributor or Customer Service at info@reedinstruments.com... -
Page 12: Operating Instructions
Operating Instructions Power ON/OFF Turn the meter ON by holding down the POWER button for approximately 2 seconds. To turn the meter OFF, press and hold the POWER button for approximately 4 seconds. Backlight After powering the meter ON, the LCD Backlight will turn on automatically. In order to preserve battery power, the LCD will turn off after approximately 15 seconds. -
Page 13: Selecting The Temperature And Air Velocity Unit Of Measure
Selecting the Temperature and Air Velocity Unit of Measure When the meter is powered on, press and hold the POWER button until SET appears, indicating the meter is in unit of measure selection mode. To toggle between Fahrenheit and Celsius press the POWER button again. -
Page 14: Battery Replacement
Battery Replacement When the low battery icon appears on the LCD display, the batteries will need to be replaced. In order to replace the batteries, proceed with the following steps: Turn off the meter. Unlock the battery compartment located at the back of the meter. Remove the battery cover. -
Page 15: Product Care
REED Instruments total liability is limited to repair or replacement of the product. REED Instruments shall not be liable for damages to goods, property, or persons due to improper use or through attempts to utilize the instrument under conditions which exceed the designed capabilities. -
Page 16: Product Support
Product Support If you have any questions on your product, please contact your authorized REED distributor or REED Instruments Customer Service by phone at 1-877-849-2127 or by email at info@reedinstruments.com. Please visit www.REEDInstruments.com for the most up-to-date manuals, datasheets, product guides and software. - Page 17 Vane Anemometer Thermo-Hygrometer Sound Level Meter Thermocouple Thermometer Light Meter Connect wirelessly to your smartphone or tablet via the REED Smart Series App Bluetooth 5.0 provides connectivity to ® instruments up to 246' (75m) away Analyze data and create custom reports that can be saved on a mobile device or sent by email GET IT ON GET IT ON...
