Summary of Contents for Reed Instruments R5040
- Page 1 R5040 1000A AC/DC True RMS Clamp Meter Instruction Manual REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 2: Table Of Contents
Auto and Manual Range ................. 11 Battery Replacement ................... 11 Applications ....................11 Accessories and Replacement Parts ............12 Product Care ....................12 Product Warranty ..................13 Product Disposal and Recycling ..............13 Product Support ..................13 REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 3: Introduction
Introduction Thank you for purchasing your REED R5040 1000A AC/DC True RMS Clamp Meter. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. -
Page 4: Features
• Diode test and continuity check functions • Durable double molded plastic housing • Cat. III 600V safety rating Included • Test Leads • Thermocouple Wire Probe • Thermocouple Adapter • Soft Carrying Case • Battery REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 5: Specifications
0.01, 0.1nF, 0.01, 0.1μF, 0.1mF Frequency Range: 10kHz Accuracy: ±(0.3% rdg. +2 dgt.) Resolution: 0.001Hz Temperature Range: -148 to 1832°F (-100 to 1000°C) Accuracy: ±(1.0% rdg. + 4.5°F) ±(1.0% rdg. + 2.5°C) Resolution: 1°F, 1°C continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... - Page 6 CAT. III 600V Product Certifications: Operating Temperature: 32 to 122°F (0 to 50°C) Storage Temperature: -4 to 140°F (-20 to 60°C) Dimensions: 9.1 x 3.0 x 1.5" (232 x 77 x 39mm) Weight: 9.6oz (271g) REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-

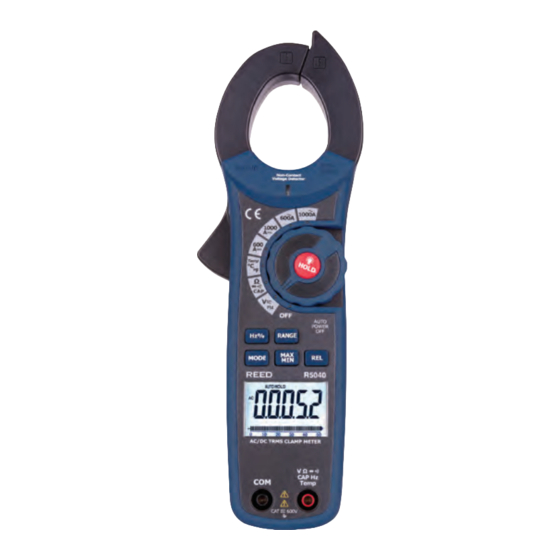

Page 7: Instrument Description
4. Data Hold and Backlight Button 5. Rotary Function Switch 6. Hz% Hold Button 7. RANGE Select Button 8. MODE Select Button 9. Relative Button R5040 10. MIN/MAX Hold Button 11. LCD Display 12. COM Input Jack 13. Positive Input Jack Display Description 1. -
Page 8: Operating Instructions
600AAC range. If the range needed is not known, select the higher range first then move to the lower range if necessary. R5040 R5040 Press the trigger to the open jaw and fully enclose one conductor. The LCD will display the reading. -
Page 9: Diode And Continuity Measurements
Insert the black test lead into the negative COM terminal and the red test lead into the positive V terminal. Touch the test probe tips to the circuit under test. The LCD will display the reading. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 10: Temperature Measurements
MIN/MAX button again to select the maximum reading. Press the MIN/ MAX button again to exit and resume normal measuring. Relative Mode Press the REL button for Capacitance Zero & Offset Adjustment. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 11: Data Hold
Replace the 1 x 9V battery and secure the battery compartment. Applications • Industrial maintenance teams performing scheduled and preventative maintenance on electro-mechanical equipment and systems. • Facilities, building maintenance and electricians looking to troubleshoot electrical equipment installation problems. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 12: Accessories And Replacement Parts
• If your instrument isn't being used for a period of one month or longer please remove the battery. • Clean your product and accessories with biodegradable cleaner. Do not spray the cleaner directly on the instrument. Use on external parts only. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 13: Product Warranty
REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance. - Page 14 TEST & MEASURE WITH CONFIDENCE CHECK OUT OUR LATEST PRODUCTS! REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
