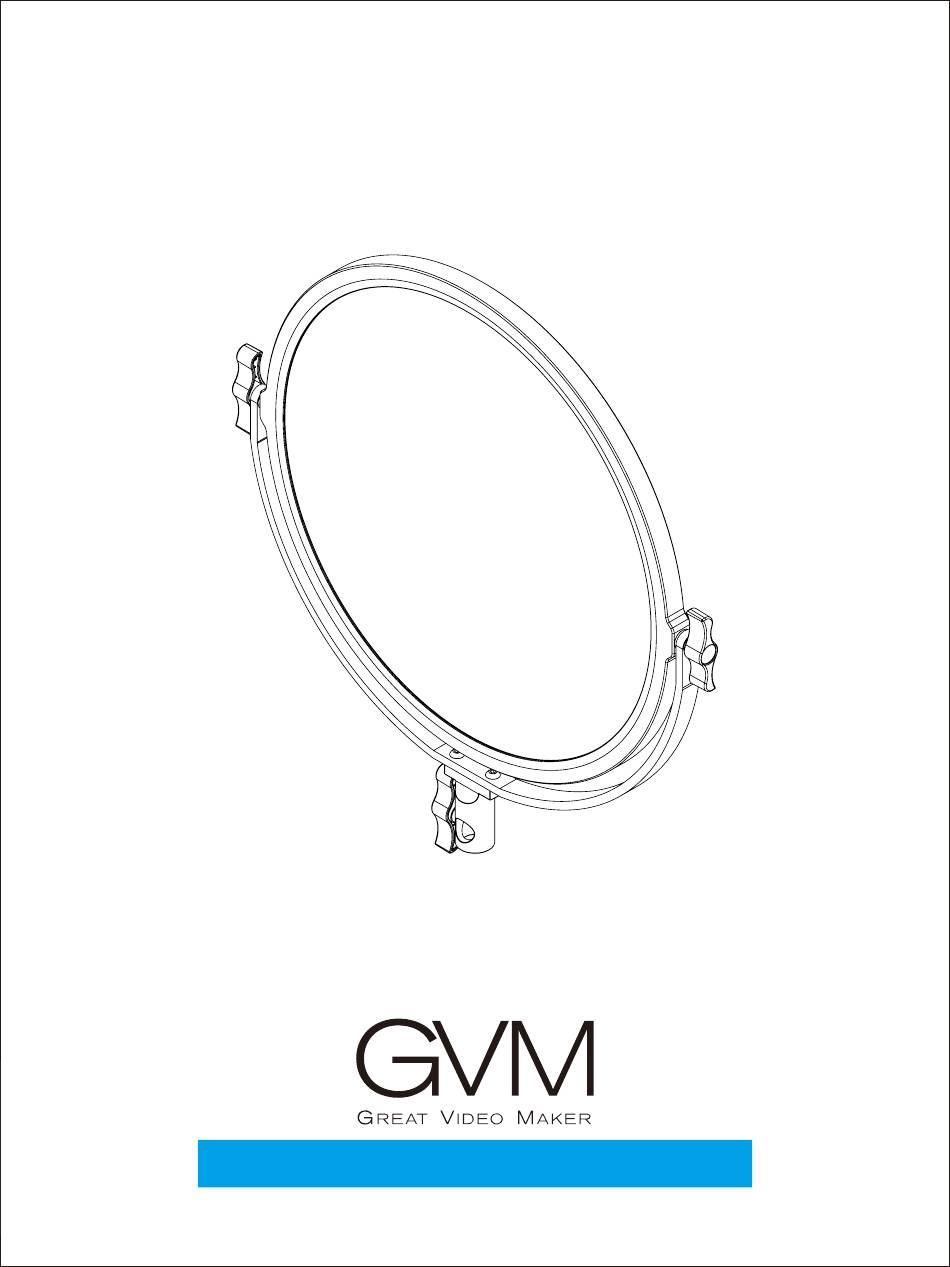

- Page 1 GVM-Y30D160 / GVM-Y60D256...
- Page 2 GVM-Y30D160 / GVM-Y60D256...
-
Page 3: Daftar Isi
DAFTAR ISI Product introduction ------------------------------------------- Page 1 Disclaimers ------------------------------------------------------- Page 1 GVM-Y30D160Product parameter ------------------------- Page 2 GVM-Y60D256Product parameter ------------------------- Page 3 Product structure analysis ------------------------------------ Page 4 Installation method ------------------------------------------ Page 5,6 Description of product control keys ----------------------- Page 7... -
Page 4: Pengenalan Produk
PENGENALAN PRODUK Welcome to "GVM-Y30D160 / GVM-Y60D256". This product is specially designed for senior photography enthusiasts. The product is suitable for live / outdoor / studio photography, and also for YouTube video shooting. The main features of the product are: ①... - Page 5 GVM-Y30D160 SPESIFIKASI PRODUK Brand : GVM Product Model : GVM-Y30D160 Product Type : Photography Fill Light Product Name : Photography lights Function / Feature: APP, Joint control, LED digital display High color rendering index light beads Color Rendering Index : ≥97 Color Temperature : 3200K-5600K Brightness: 2300lux/0.5m ;...
- Page 6 GVM-Y60D256 SPESIFIKASI PRODUK Brand : GVM Product Model : GVM-Y60D256 Product Type : Photography Fill Light Product Name : Photography lights Function / Feature: APP, Joint control, LED digital display High color rendering index light beads Color Rendering Index : ≥97 Color Temperature : 3200K-5600K Brightness: 5100lux/0.5m ;...
- Page 7 BAGIAN PRODUK Angle fixing knob U-frame Lamp rack interface Lamp rack interface Lamp holder fixing knob Electronic display Battery tank Indicator light SLAVE Integrated WIFI reset / MODE/RESET control channel Mode button Select button Battery Adapter Power interface Adapter interface Brightness adjustment knob Color temperature...
-
Page 8: Cara Pemasangan
CARA PEMASANGAN The lamp can be installed and fixed on the bracket by rotating the knob clockwise, and unloaded by rotating in the counterclockwise direction. Loosen the adjustment knobs on both sides of the U-bracket, adjust the angle of the panel you need, and then tighten the adjustment knobs on both sides of the U-bracket. - Page 9 There are two power supply modes to choose. ① connect the power cord and adapter for power supply. ② purchase two other suitable lithium batteries and use them for power supply. ( both battery cells must be plugged in to power ) SLAVE MODE/RESET Battery...
- Page 10 CARA PENGGUNAAN TOMBOL PADA PRODUK SLAVE MODE/RESET Battery Adapter DC15V power input interface Power switch Mode button/WIFI reset button: Modes include master mode and slave mode; WIFI username and password reset button Channel addition and subtraction key: adjust channel（ 0~11 ） Brightness indicator: when adjust the brightness knob, the indicator is on Color temperature indicator: when adjust the color temperature knob,...
- Page 11 CARA PENGGUNAAN ① Mode selection： The mode is divided into master mode and slave mode. Tap the mode key to switch (default master mode for startup). MODE:Master：Adjust brightness, color temperature and channel through knobs and buttons, and can also connect APP. These parameters of lamp can be controlled through APP, and slave computers of the same channel can also be adjusted synchronously.
- Page 12 S l a v e m o d e : c o l o r t e m p e r a t u r e i n d i c a t o r a n d b r i g h t n e s s i n d i c a t o r a r e a l w a y s o n .
- Page 13 Scan the QR code on the back of the manual to download the APP Set master mode for the photography light (automatically as a master mode when switching on the machine), open “GVM Easily” APP on the mobile phone (meanwhile turn on WIFI on the phone),register the APP account (as long as...
-
Page 14: Troubleshooting
If there is a slave, the slave and the master are controlled by the APP at the same time. The master/slave connection mode is the same as “9 pages, ⑥ online control (link control between lamps and lamps).” WIFI username and password resetting It is able to reset the WIFI username and password if long press the WIFI reset button for over 5 seconds. - Page 15 Troubleshooting Check the product Phenomenon The product is in Check if the product is “OFF” Press the “ON/OFF” button once the "ON" state, because of the APP of the again. the display and mobile phone. lights are not on Check whether the WiFi is Normal steps: ①...
- Page 16 CATATAN PENTING ① Please use the matching power adapter or lithium battery with the same specification to power the product. Do not use power adapter with different output voltage parameters. ② The product is not waterproof, please use it in rainproof environment. ③...
- Page 17 ISI DALAM PAKET N a m e Q u a n t i t y N o t e s Main Machine Power Cord Adapter Carrying Case User Manual...
- Page 18 Download APP Download APP GVM Official Facebook Android website Web: www.gvmled.com B&H Email: bh@gvmled.com GVM Email: support@gvmled.com Amazon Email: gvmledservice@hotmail.com amazonsupport@gvmled.com...
