3 | Product description

3.1 Short description

• Semi-hermetic eight-cylinder reciprocating compressor with suction-gas cooled drive motor.

• The stream of refrigerant sucked out of the evaporator flows over the motor and cools it

intensively. In this way, the motor can be kept at a relatively low temperature level, particularly

under high loads.

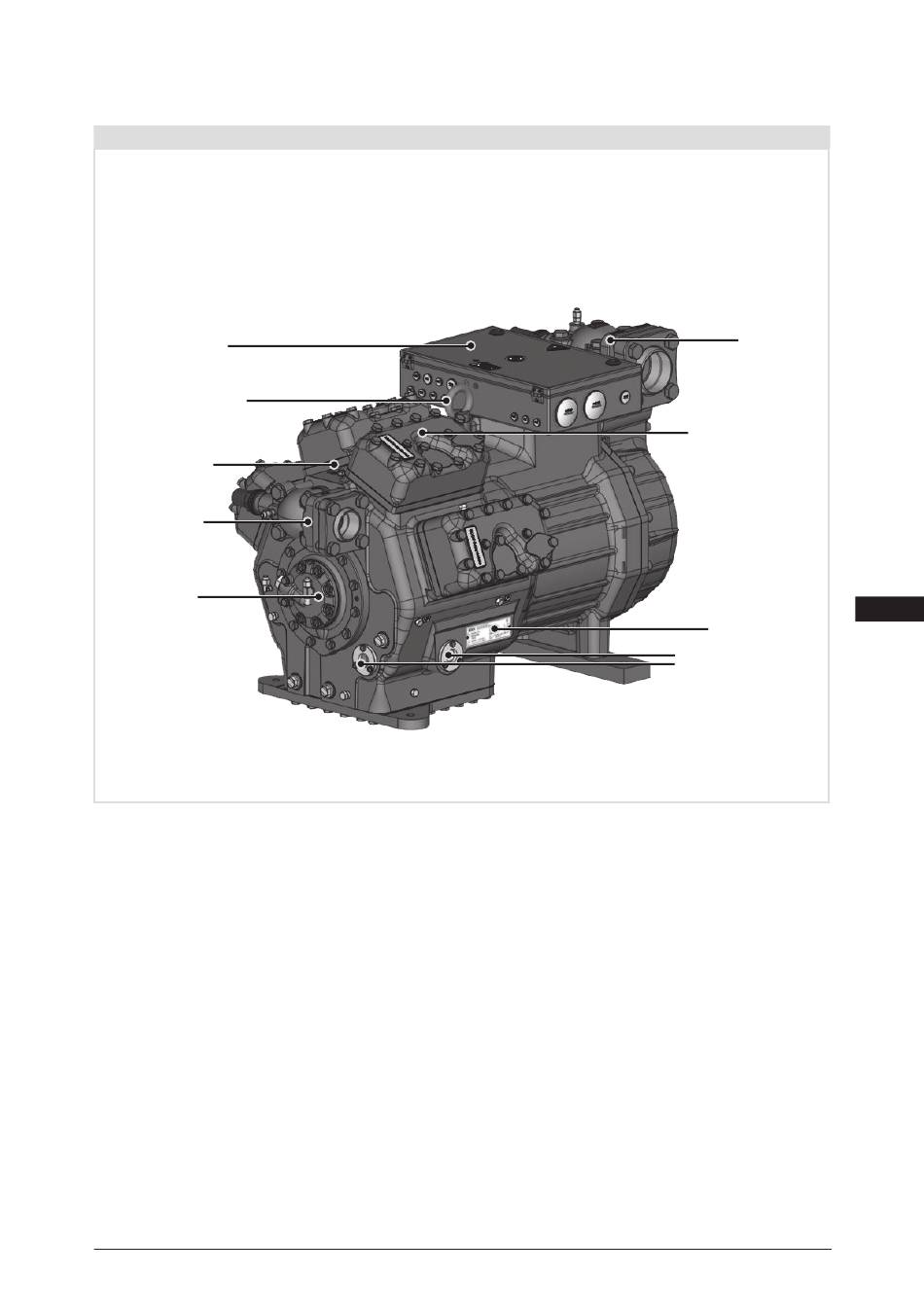

Terminal box

Transport eyelet

Valve plate

Discharge

shut-off valve

Oil pump

Dimension and connection values can be found in Chapter 12

Fig. 1

AQ451337713574en-000401 | 7

Suction

shut-off valve

Cylinder cover

Name plate

Oil sight glasses
