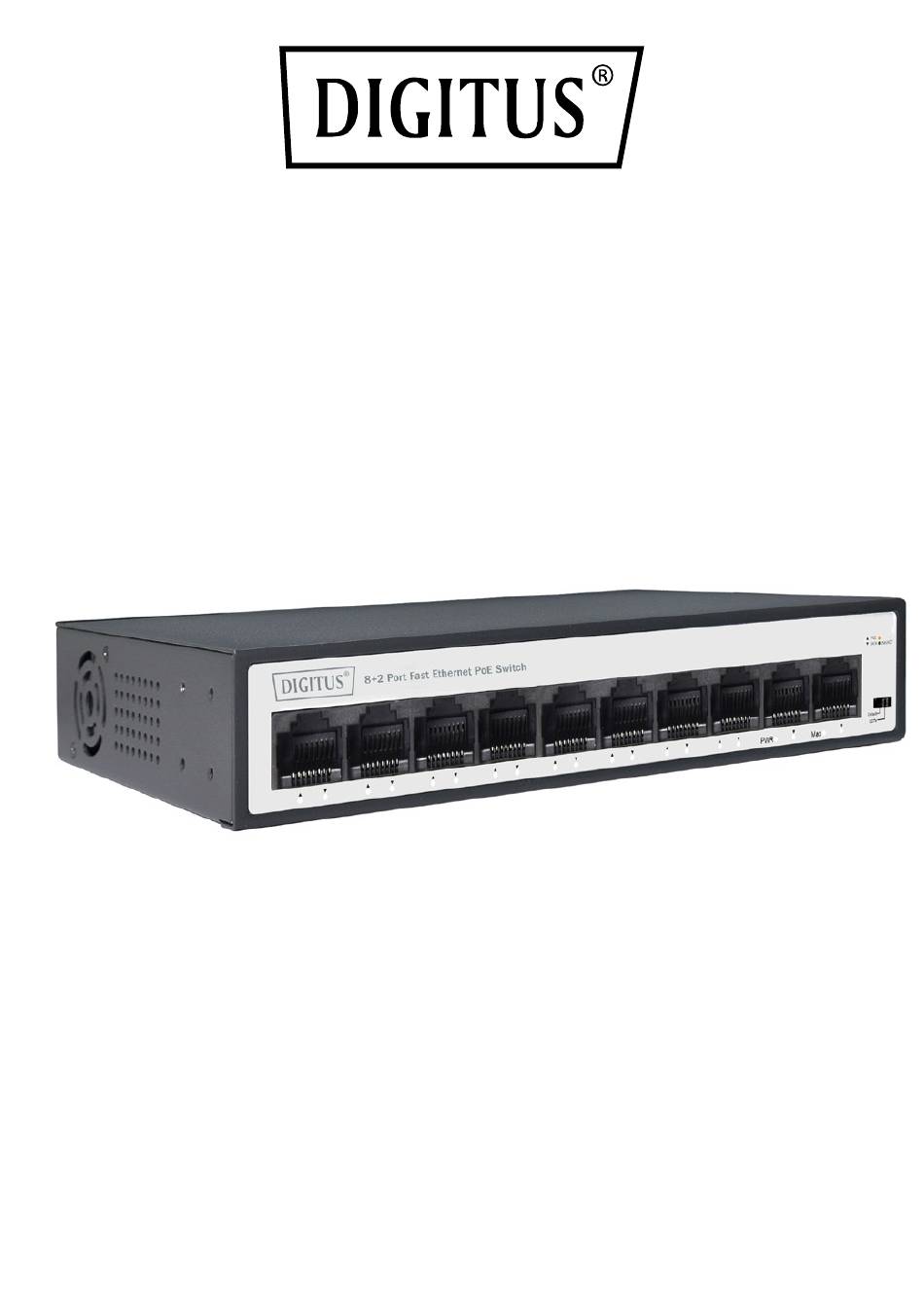

- Page 1 8+2 Port Fast Ethernet PoE Switch Quick Installation Guide DN-95354...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction ................3 2. Main Features ............... 3 3. Package Contents ..............3 4. Product Specification ............. 4 5. Hardware Description ............5... -
Page 3: Introduction
1. Introduction DN-95354 has a CCTV function which can improve the network environment and reduce network maintenance costs. It is easy to manage and meet the networking and access requirements of Business buildings, community, hotel and office. 2. Main Features •... -
Page 4: Product Specification
4. Product Specification Technical Interface 10* 10/100 RJ45 port PoE port 1 ~ 8 PoE stand IEEE802.3af/at PoE total 60 W Power supply 65 W Key function CCTV PoE port output Max 30W RJ45 PoE power supply Mode A, Anode1/2, Cathode3/6 Indicator PWR (Green), LNK/ACT (Green) -
Page 5: Hardware Description
Surge Protection Common mode ± 2KV, differential mode ± 1KV MTBF >50000 hour Electrostatic standard Contact ±6KV, air ± 8KV 5. Hardware Description Front Panel The Front Panel Consists of Ethernet Ports. The LED indicators are also located on the panel. DIP Switch: The DIP switch located on the right of the panel. - Page 6 Color Function Off: No Power supply. Green Light: Indicates the switch has power. Off: No device is connected to the corresponding port. Light: Indicates the link through that port is LNK/ Green successfully established at 10/100Mbps. Blink: Indicates that the Switch is actively sending or receiving data over that port.
- Page 7 Rear Panel The rear panel of the PoE Switch indicates an AC inlet power socket, which accepts input power from 100 to 240V AC, 50/60HZ. Note: the lightning protection grounding column is located on the left side of the rear panel, please make sure to use the conductor to ground in case of lightning! Power socket Connect the female connector of the power cord here, and the male...
- Page 8 Installation the Switch This part describes how to install your Ethernet Switch and make connections to it. Please follow the following instructions in avoid of incorrect installation causing device damage and security threat. • Before cleaning the switch, unplug the power plug first. Do not clean the switch with wet cloth or liquid;...
- Page 9 Desktop Installation Install the Switch on a desktop, please attach cushioning rubber feet on the bottom at each corner of the Switch in case of the external vibration. Allow adequate space for ventilation between the device and the objects around it.
- Page 10 Wall-mounted installation Aim at the two fixed holes, and add the machine smoothly on the screw, as shown in the figure below. Provide two screws with a diameter of about M4 and a nut with the diameter of 7mm. Turn on the switch Please connect the AC power cord into the rear of the switch and to an electrical outlet (preferably one that is grounded).
- Page 11 Disclaimer This is a Class A product. In home environment, this product may cause radio interference. In this case, the user may be required to take appropriate measures. Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.
