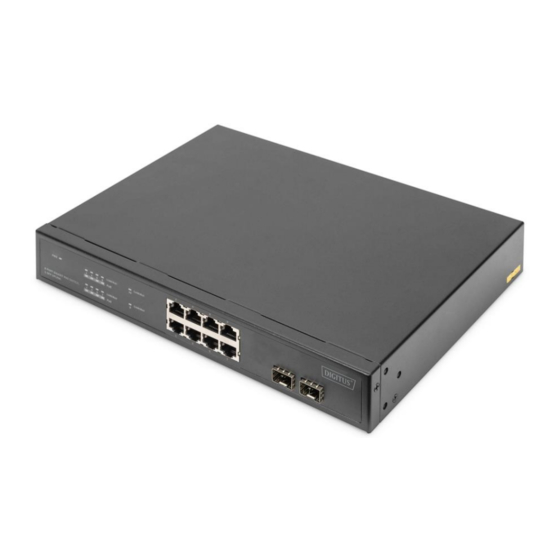

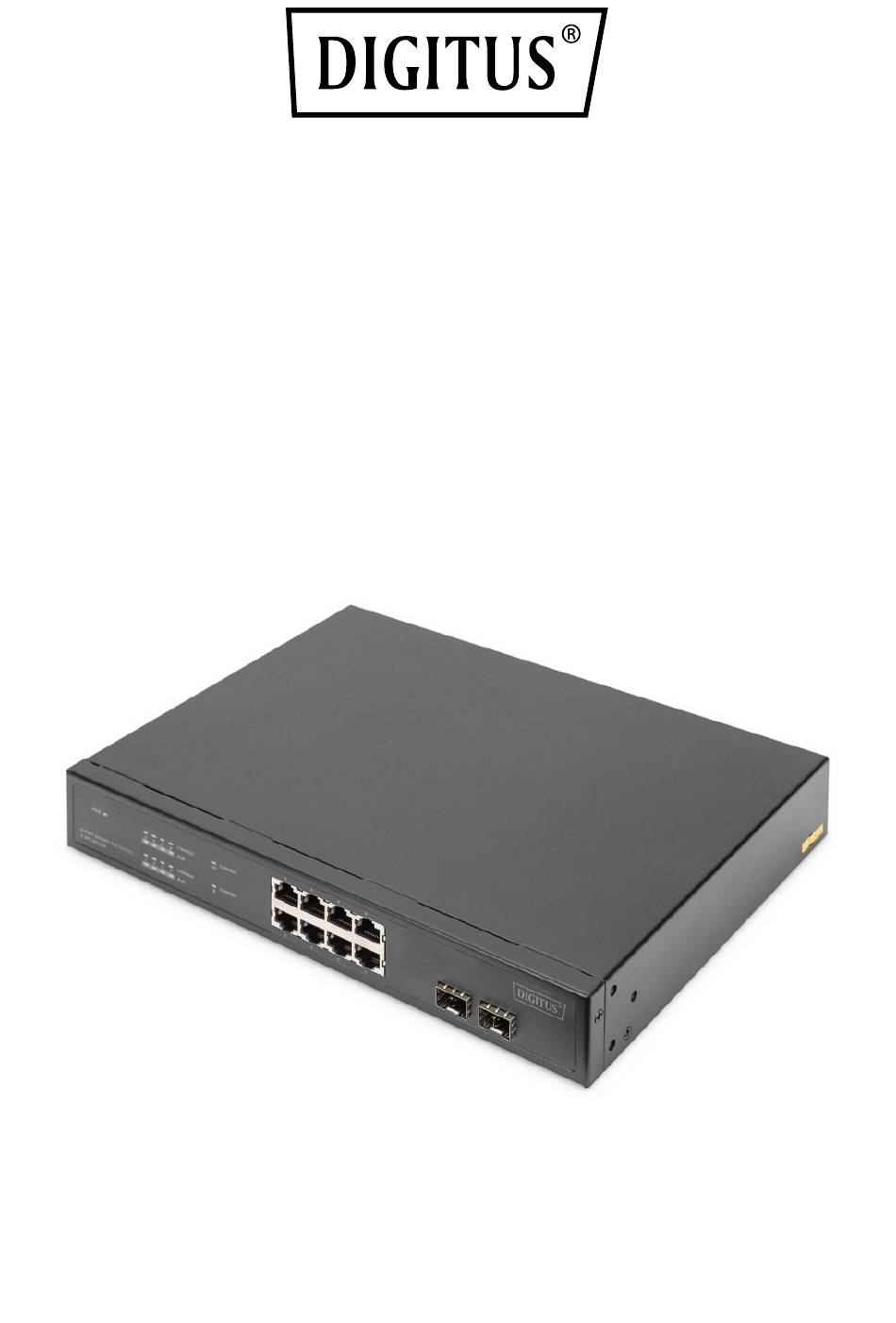

- Page 1 8 Port Gigabit PoE Switch, 19 Inch, Unmanaged, 2 SFP Uplink Quick Installation Guide DN-95341-1...
-
Page 2: Package Contents
1. Introduction The DIGITUS 8-Port Gigabit Rack mount Switch with eight Power over Ethernet ports and two additional SFP Fiber Port, offers your network significant improvement in terms of performance and efficiency. Thanks to PoE support, you only need a single (network) cable for power and data transfer. -
Page 3: Specifications
4. Specifications 8 x 10/100/1000Mbps PoE ports and Fixed port 2 Gigabit SFP Ports IEEE802.3 10Base-T Ethernet standard IEEE802.3u 100Base-TX Fast Ethernet standard IEEE802.3ab 1000Base-T Ethernet standard Standards and protocols IEEE802.3z Gigabit Ethernet (fiber) IEEE802.3x Full duplex flow control and Backpressure Half duplex flow control IEEE802.3ab Link aggregation Forwarding Rate... -
Page 4: External Component Description
5. External Component Description Front Panel The front panel consists of LED indications and network ports. PWR LED: The Power LED lights up when the Switch is connected to a power source. Link/Act LED: The Link/Act LED flashes which indicates a network link through the corresponding port. -
Page 5: Hardware Installation
6. Hardware installation 6.1 switch installation For safe switch installation and operation, it is recommended that you: Visually inspect the power cord to see that it is secured fully to the AC power connector Make sure that there is proper heat dissipation and adequate ventilation around the switch. - Page 6 6.2 Plugging in the AC Power Cord You can connect AC power supply cord to switch back and the other side connect the power outlet. (Power outlet might as well grounding and support over voltage protection) Warning: Do not turn on the power switch before power cables are connected. Power surge may cause damage to the Switch.
