Overview

This guide provides installation instructions for Source Four Mini LED lumin-
aires. They are intended for use with the ETC F-Drive family of drivers and
accessories (including R12, W1, and B-Box) or other Class 2 or Low Voltage
Limited Energy (LVLE) power supplies (48 VDC maximum). Consult the spe-
cifications and installation manual for your driver to ensure compatibility.
This release of the Source Four Mini LED luminaire is compatible with the
R12 CC-150 output card or the W1 CC driver. Set the output channel for
the luminaire to 350 mA.
Note:
clamp (provided separately) to the luminaire.
For more information about compatible products, see the resources below,
which are available for download at
trols/LED-Drivers/F-Drive/Documentation.aspx:
• F-Drive Series R12 Installation Manual
• F-Drive Series W1 Installation Manual
• F-Drive R12 and W1 Wiring Reference Guide
• F-Drive B-Box4 Installation Guide
The F-Drive System Design Tool is available at
nect.com/FDriveSysDesignTool.
You must install a lens tube before you use the Source Four Mini LED. There
are four lens tube sizes available: 19°, 26°, 36°, and 50°.
There are also canopy, track, and portable versions of the luminaire that are
not compatible with the F-Drive family of drivers and accessories. See the
luminaire datasheets at
Four product options.
Source Four Mini LED (F-Drive) User Manual

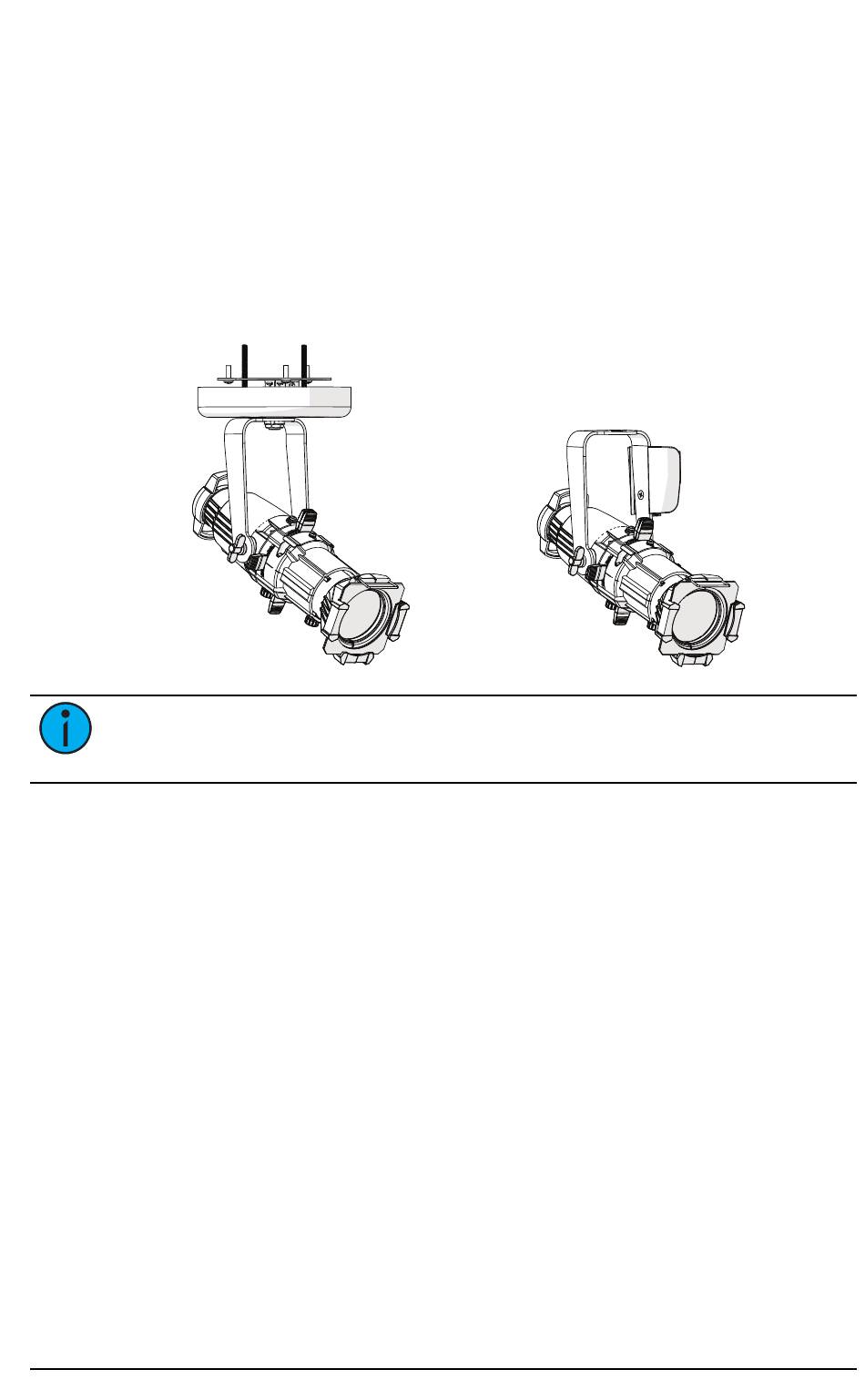

Canopy
For the portable luminaire, use an M10 bolt to secure a
etcconnect.com
Portable
etcconnect.com/Products/Power-Con-
etccon-
for more information on Source
1
