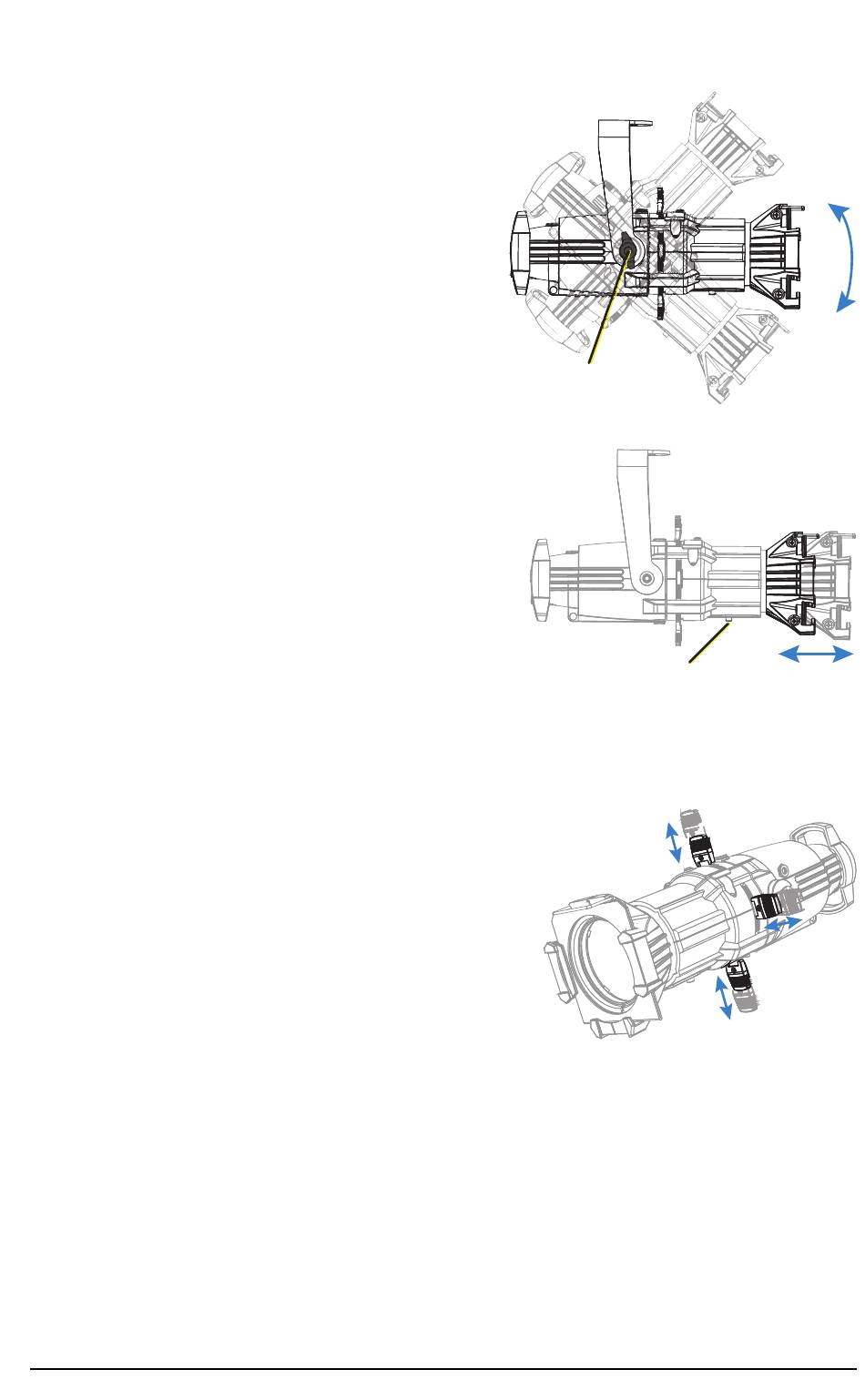

Focus and Setup
Adjust the Tilt
Image shows the yoke from the canopy
version of the fixture.
1. Loosen, but do not remove the
yoke locking knob.
2. Tilt the luminaire as needed.
3. Tighten the yoke locking knob.
Focus the Beam
Image shows the yoke from the canopy ver-
sion of the fixture.
Loosen the beam focus knob, adjust the
lens tube position as needed, and then
tighten the knob.
Shape the Beam
You can shape the beam using the four shutters or with a pattern.
Shape the Beam with
Shutters
The luminaire has four shutters: left,
right, top, and bottom. Each shutter can
be pulled out or pushed in to create the
desired beam shape.
Source Four Mini LED (F-Drive) User Manual
Yoke locking
knob
Beam focus knob
9
