  • Page 1 50m 1080P HDMI Extender HDEX40-L User Manual...

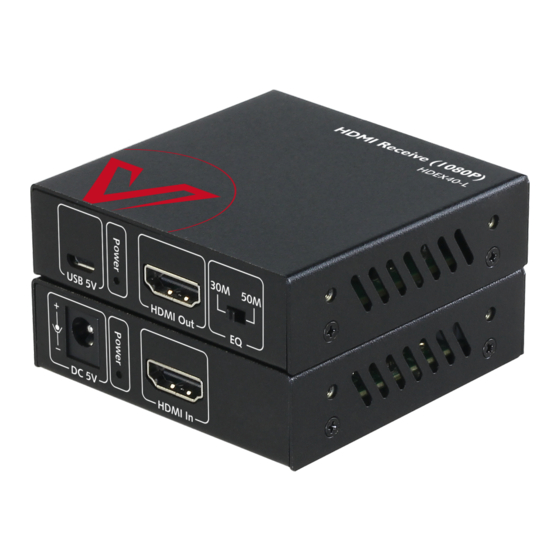

  • Page 2 Introduction Overview HDEX40-L is a 50m 1080P cost-effective HDMI extender, and offers the extension of full HD video, 2CH audio and IR pass through up to 50m/164ft along a single Cat X cable. With a feature set including transmission of uncompressed 1080p HD video@60Hz, stereo audio, one-way IR pass through and PoC (Power over Cat X cable).
  • Page 3 Introduction Panel Transmitter Name Description Connect to the power adapter provided. The DC 5V receiver can be powered by transmitter. ON: The transmitter is powered on. Power LED OFF: The transmitter is powered off. HDMI In Connect with HDMI source device UTP Out Connect to the receiver via Cat X cable.
  • Page 4 Installation and Application Installation and Application Brackets Installation Note: Before installation, please ensure the kit is disconnected from the power source. Attach the installation bracket to the enclosure using the screws that were provided in the package separately. The bracket height adjusted up/down or bracket face up or down.
  • Page 5 Specifications Specifications Technical Video Signal Type HDMI 1.3b with HDCP 1.4 1920x1080i , 1920x1080P , 1280x720P Input/Output 720x568P , 720x568i ,720x480P , 720x480i Resolution Support 8 = 60 Hz Audio Format PCM 2.0 Supported Max Data Rate 6.75 Gbps General Operating 0°C to + 45°C (32 to + 113 °F) Temperature...
  • Page 6 The warranty has expired. The defects are caused by the fact that the product is repaired, dismantled or altered by anyone that is not from an AV Access Technology Limited authorized service partner. The defects are caused by the fact that the product is used or handled improperly, roughly or not as instructed in the applicable User Guide.
