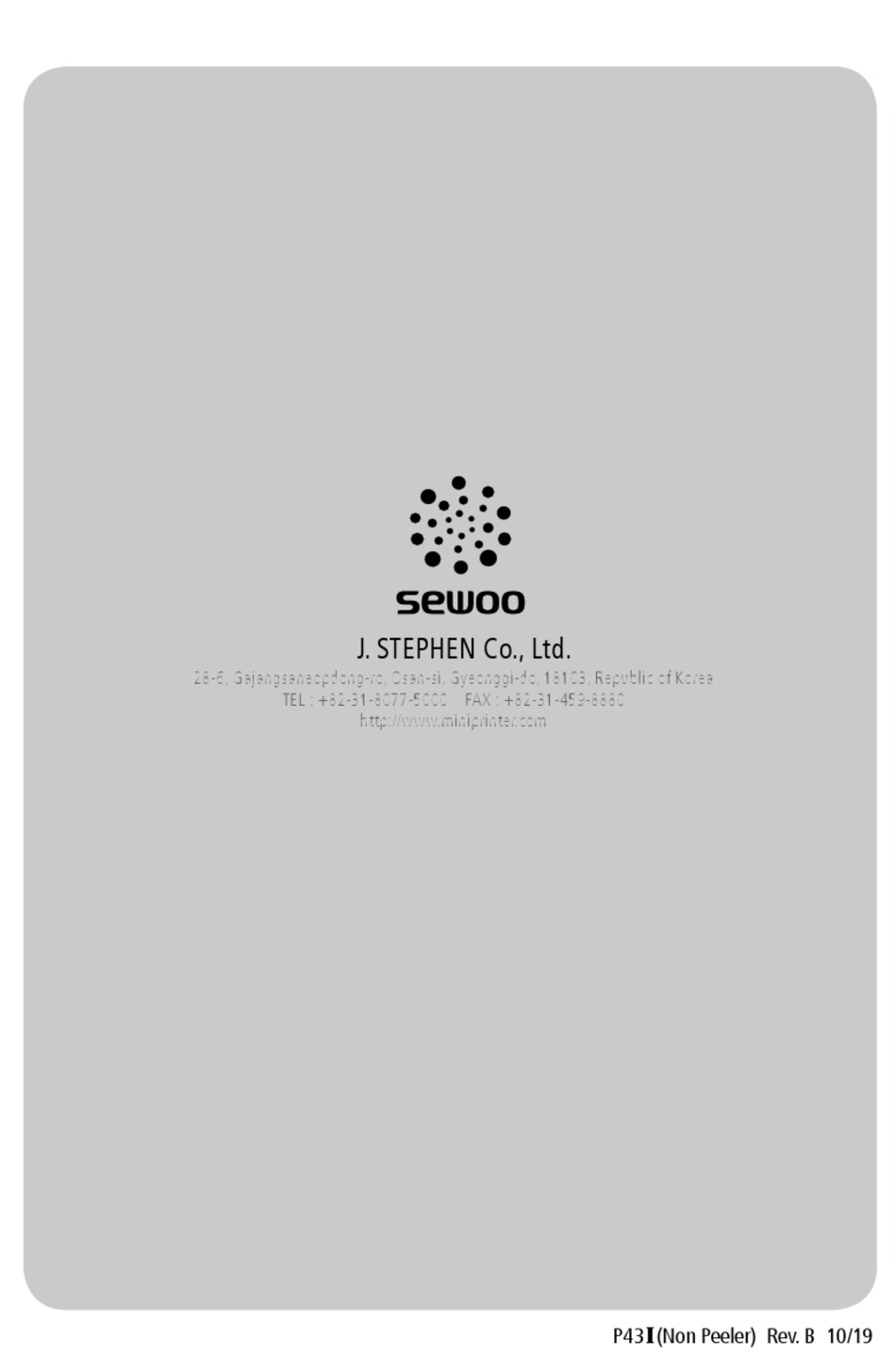

J. STEPHEN Co., Ltd.
28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi-do, 18103, Republic of Korea
TEL : +82-31-8077-5000 FAX : +82-31-459-8880
http://www.miniprinter.com
P43 Ⅱ (Non Peeler) Rev. B 10/19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LK-P43II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SEWOO LK-P43II

Summary of Contents for SEWOO LK-P43II

  • Page 1 J. STEPHEN Co., Ltd. 28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi-do, 18103, Republic of Korea TEL : +82-31-8077-5000 FAX : +82-31-459-8880 http://www.miniprinter.com P43 Ⅱ (Non Peeler) Rev. B 10/19...
  • Page 2 USER’S MANUAL / Non Peeler MODEL : LK-P43 Ⅱ All specifications are subject to change without notice...
  • Page 3 Following information shall be included in the manual Information to User; Caution: the user that changes or modifications not expressly approved by the J. STEPHEN Lab., Ltd. responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 4 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions. 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. Risk of explosion if battery is replaced by an incorrectly type.

  • Page 5: Table Of Contents

    Table of Contents 1. Safety Precautions 2. Unpacking 3. Product Overview 4. Installation & Usage 4-1. Display 4-2. Installing the Battery 4-3. Removing the Battery 4-4. Charging the Battery 4-5. Battery charger usage (Optional) 4-6. Car charger usage (Optional) 4-7. Belt Clip Usage 4-8.
  • Page 6 5-2. Wi-Fi Connection (Optional) 5-3. Interface Cable Connection 6. Printer Cleaning 6-1. Print-Head Cleaning 6-2. Platen Roller Cleaning 7. Printer Specification...

  • Page 7: Safety Precautions

    1. Safety Precautions For better safety and reliability, adhere to the following precautionary measures. Read and follow the instructions carefully before operation of the product. Indication Prohibition Must follow Unplug the power from the Do not disassemble outlet Grounding to prevent electric Do not handle the product shock with wet hands...
  • Page 8 WARNING Failure to follow these instructions could result in fire, electric shock, other injuries, or property damage. Do not unplug the power cable to turn off Do not disassemble, repair or modify the the product. product. (Potential risk of malfunction, electric shock, (Turn off the power using the power button) or fire.

  • Page 9: Unpacking

    2. Unpacking Standard Printer Battery Belt Clip AC cord USB Cable Adaptor Paper Quick Reference Serial Cable Optional Shoulder Strap Car Adapter Battery Cradle 4BC-XX (Charging Cradle) (Charging Cradle)

  • Page 10: Product Overview

    3. Product Overview Front COVER OPEN BUTTON DISPLAY SERIAL Bottom BATTERY BELT CLIP CONNECTOR SHOULDER STRAP RING CHARGER CONNECTOR...

  • Page 11: Installation & Usage

    4. Setting Up the Product 4-1. Display Button Name Function Advances the paper, clears error messages, and moves down through menu options. Paper Feed / 1. Refer to 4-12 for Diagnostic Test information. Down Button 2. Refer to the service manual regarding Hexadecimal Dumping.

  • Page 12: Installing The Battery

    4-2. Installing the Battery Insert the battery as shown. NOTE You must fully charge the battery when you receive the printer. Batteries can be charged in the printer or in an optional external cradle.

  • Page 13: Removing The Battery

    4-3. Removing the Battery Remove the battery as shown.

  • Page 14: Charging The Battery

    4-4. Charging the Battery 1. Be sure the printer is turned off. 2. After opening the DC JACK cover, insert DC JACK into the printer. 3. Plug the power cord into the electrical outlet. The charge indicator LED Status Charging Charging Completed Charging Lamp Green...

  • Page 15: Battery Charger Usage (Optional)

    4-5 Battery charger usage Optional Lamp 1. Insert the battery into the battery charger as shown above. 2. Connect the DC JACK to the electrical outlet. 3. Plug the power cord into the electrical outlet. 4. Once the charging is completed, remove the battery from the charger. The charging status LED Status charging...

  • Page 16: Car Charger Usage (Optional)

    4-6. Car charger usage Optional Connect the car charger to the printer. Input 12V ~ 24V Output 9.5V / 3A NOTE Connect the car charger to the printer.

  • Page 17: Belt Clip Usage

    4-7. Belt Clip Usage Insert screw into belt clip. Tighten the screw with a screwdriver as shown. NOTE The belt clip is included with the printer but is not required to be used or installed!

  • Page 18: Interface Cap Installation

    4-8. Interface Cap Installation When the Interface Cap is disconnected Using a sharp tool, insert the Cap Hook from the printer, try to orient the Cap Hook into the hole located on the right horizontally as shown in the image. side of Interface Cap.

  • Page 19: Paper Roll Installation

    4-9. Paper Roll Installation Open the Paper cover by pressing the Insert the paper roll so it unrolls from Open button. You can set the width of the bottom. Remove the paper core paper guide by turning the knob with when the roll is empty.
  • Page 20 Be cautious when handling the product while the Printer Cover is open. You may have a potential risk of injury when the Paper Cover closes. CAUTION...

  • Page 21: Install / Uninstall The External Paper Guides

    4-10. Install / Uninstall the External Paper Guides Uninstall the External Paper Guides External Paper Guides Using a sharp tool, push on the External Paper Guides to detach them from the The outer cover of External Paper Guides printer. Press on the circle in the middle will be separated.
  • Page 22 When installing the external paper guides, set the printer on the edge of a flat surface. Then insert the paper in the backside of the printer’s paper slot and adjust the paper guide to fit the paper properly. CAUTION Recommendation please set the paper position far away at least twice length of printing paper.

  • Page 23: Shoulder Strap Installation (Optional)

    4-11. Shoulder Strap Installation Optional Insert the strap into the hook of the printer. Place the end of the strap into the hook After pulling out the end of the strap tightly, of shoulder strap. put it into the clip to be fastened.

  • Page 24: Diagnostic Test

    4-12. Diagnostic Test Press and hold the Feed button Turn off the printer. and Power button. NOTE 1. For Hex Dump mode, do steps 1-2 then press the Feed button. 2. After printing ASCII pattern, the diagnostic test is complete. 3.
  • Page 25 The Sample of Self-test Printout Upon initial installation or for troubleshooting, you can run the diagnostic test to get information about: Firmware version, emulation, codepage, sensor settings, interface settings, etc. If no issues are found with diagnostic test, examine other devices and software. The diagnostic test is working independent of devices and software.

  • Page 26: Peripheral Connection

    5. Peripheral Connection This product can communicate with other devices via Bluetooth, Wi-Fi, or a communication cable. 5-1. Bluetooth Connection Optional 1. Printer can be connected to a PDA or a PC using a wireless Bluetooth connection. 2. Use the Bluetooth connection function supported by your device to connect to the printer.

  • Page 27: Interface Cable Connection

    5-3. Interface Cable Connection Serial 1. Connect the USB or Serial cable to the applicable port on the printer. NOTE Only use cables included with the printer. 2. Connect the interface cable to the USB or Serial port of the device. (PDA, PC, etc.)

  • Page 28: Printer Cleaning

    6. Printer Cleaning If the interior of the printer is dusty, printing quality can be reduced. In this case, follow the instructions below to clean the printer. 6-1. Print-Head Cleaning 1. Use an applicator swab moistened with isopropyl alcohol to clean the print-head and remove any dust.

  • Page 29: Platen Roller Cleaning

    6-2. Platen Roller Cleaning 1.Clean the platen roller with a clean soft cloth moistened with isopropyl alcohol or a cleaning pen. 2. Turn the platen roller with your finger to clean the entire surface. Platen Roller...

  • Page 30: Printer Specification

    7. Printer Specification Printing Method Direct Thermal Printing Speed 100mm/sec Resolution 203 DPI Character ALPHA NUMERIC Character, Extension Character Barcode EAN-8, EAN-8(+2+5), EAN-13, EAN-13(+2+5), Coda- bar, Code11, Code39, Code93, Code128, ITF, LUPC- A(+2+5), UPC-E, UPC-E(+2+5), Planet, UPC-A etc QR, PDF417, MicroPDF417, Maxicode, Datamatrix, Aztec, RSS14, TLC39 Fonts FontA(12x24), FontB(9x17), Asian Font(KOR, JPN,...
  • Page 31 Communications Standard Serial(RS-232C), USB Optional Wi-Fi(802.11a/b/g/n) or Bluetooth Smart Ready(Bluetooth4.2+BLE) Display TFT-LCD (RGB) 240X400 Adaptor Input AC 100 ~240V 50/60Hz Output 9.0V, 4.0A Battery Battery Type Li-ion Output STANDARD : 7.4V, 2600 mAh/19.24Wh OPTION : 7.4V, 5200 mAh/38.48Wh Charging Time 3.3Hrs Charging time(2600mAh) 6.2Hrs Charging time(5200mAh) Size...
  • Page 32 PATENT...
