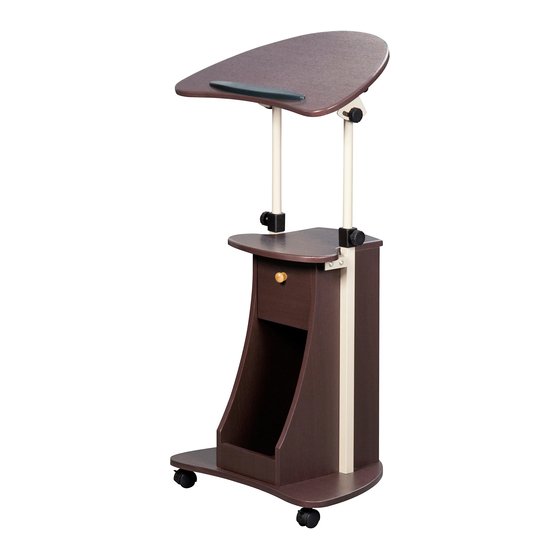

SIT-TO-STAND ROLLING ADJUSTABLE
LAPTOP CART WITH STORAGE
MODEL RTA-B005
ASSEMBLY INSTRUCTIONS
REV.OL-7284-0423
Thank you for purchasing our product
FRENCH
VIDEO
ARABIC
Scan QR to view full
Scan QR to view the
Scan QR to view the
assembly video
manual in French
manual in Arabic
Advertisement
Related Manuals for RTA Products TECHNI MOBILI RTA-B005
Summary of Contents for RTA Products TECHNI MOBILI RTA-B005
- Page 1 SIT-TO-STAND ROLLING ADJUSTABLE LAPTOP CART WITH STORAGE MODEL RTA-B005 ASSEMBLY INSTRUCTIONS REV.OL-7284-0423 Thank you for purchasing our product FRENCH VIDEO ARABIC Scan QR to view full Scan QR to view the Scan QR to view the assembly video manual in French manual in Arabic...
- Page 2 & Replacement Parts within the hardware listed below. 48 Contiguous United States: RTA Products will replace the part free of charge, while the customer is responsible Please email us at: for shipping costs plus any International local taxes or duties.
-
Page 3: Hardware List
RTA-B005 MAIN PARTS LAYOUT (For reference) HARDWARE LIST SIZE ITEM SIZE ITEM PART PART M3x15 M4x14 M5x16 M4x20 M6x35 Ø5x17 M6x40 Ø8x19 Curved connector Bolt __________ Sets Ø10x28 M6x12 Plastic washer INCLUDED TOOLS Phillips Screwdriver... - Page 4 RTA-B005 BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. • Please read the assembly instructions throughly and follow step by step. 30mm • Make sure you understand which hardware will be used on each step. Using the wrong size of screw, bolt or pin might M6x30 strip the threads or cause damage to the...
- Page 5 RTA-B005 THE ASSEMBLY STEPS START ON NEXT PAGE CAM BOLT AND CAM LOCK TUTORIAL THE INSTRUCTIONS BELOW ARE NOT ACTUAL ASSEMBLY STEPS This unit uses cam bolts and locks (also known as mini fixes). If you are not familiar with this kind of hardware, the below is a tutorial that explains how to use them on the steps where they are required.
-
Page 6: Assembly Steps
RTA-B005 ASSEMBLY STEPS STEP 1 Attach the magnet 17-A to the bottom surface of the middle upper shelf 8 with Hardware screws F. Attach the small steel plate 17-B to the inside surface of the shelf door 18 with M3x15 screws F. - Page 7 RTA-B005 STEP 3 Insert the metal pin H into the corresponding hole on panel 1. Hardware Attach the door panel 18 to the pin H, making sure the metal plate is visible as shown. Double sided pin Tools (included) STEP 4 Attach the bolts D to the right side panel 2 into the indicated holes.
- Page 8 RTA-B005 STEP 6 Screw the bolts D into the indicated holes on the top surface of panel 7. Hardware Join the main frame to the base and lock the pieces together by turning the cam locks on panels 1, 2 and 4 as shown and as explained in page 4. M6x40 Tools (included) Cam locks...
- Page 9 RTA-B005 STEP 9 EXTREMELY IMPORTANT! Hardware Follow this step EXACTLY as instructed! An incorrect assembly leaves the tilting mechanism and main panel prone to moving or sliding, and Connector even might flip down forwards unexpectedly under any weight. Sets Soft plastic Place the curved connectors I over the threaded holes of the lifting tubes 10.
- Page 10 RTA-B005 STEP 10 Assemble the tilting mechanisms 13 and 14 to the main panel 12 in their Hardware respective sides with screws E. M6x12 Tools (included) ( R i ( L e f t ) STEP 11 Place the plastic covers 11 over the lateral bars 9 with their threaded holes facing towards the outside.
- Page 11 RTA-B005 P.10 P.10 STEP 12 Lift the main panel 12 about 6 inches and tighten the screw knobs 16. Hardware Assemble the protection rail 15 to the main panel 12 with its curvature towards the front with screws B from underneath. M5x16 Curvature Tools (included)
- Page 12 RTA-B005 P.11 P.11 FUNCTIONS / ADJUSTMENTS LIFTING: Loosen the screw knobs to lift, then tighten again. • If you have objects or devices on or under the main panel, use caution when adjusting the height. • Do not overtighten the screw knobs. •...
- Page 13 RTA-B005 P.12 P.12 WEIGHT LIMITS 20 Lbs (9.1 Kg) 20 Lbs (9.1 Kg) 20 Lbs (9.1 Kg) WARNINGS • Do not exceed the indicated weight limits. • Make sure that the tilting mechanisms are properly assembled as instructed in step 9. An incorrect assembly leaves the tilting mechanism unsecured, and the main top panel will not hold enough weight on it and even might flip down forwards unexpectedly.
- Page 14 RTA Products LLC will replace any defective part, at its discretion, and without charge to the original purchaser other than the freight from the end consumer to RTA Products.
