Summary of Contents for RTA Products Techni Mobili RTA-3840SU

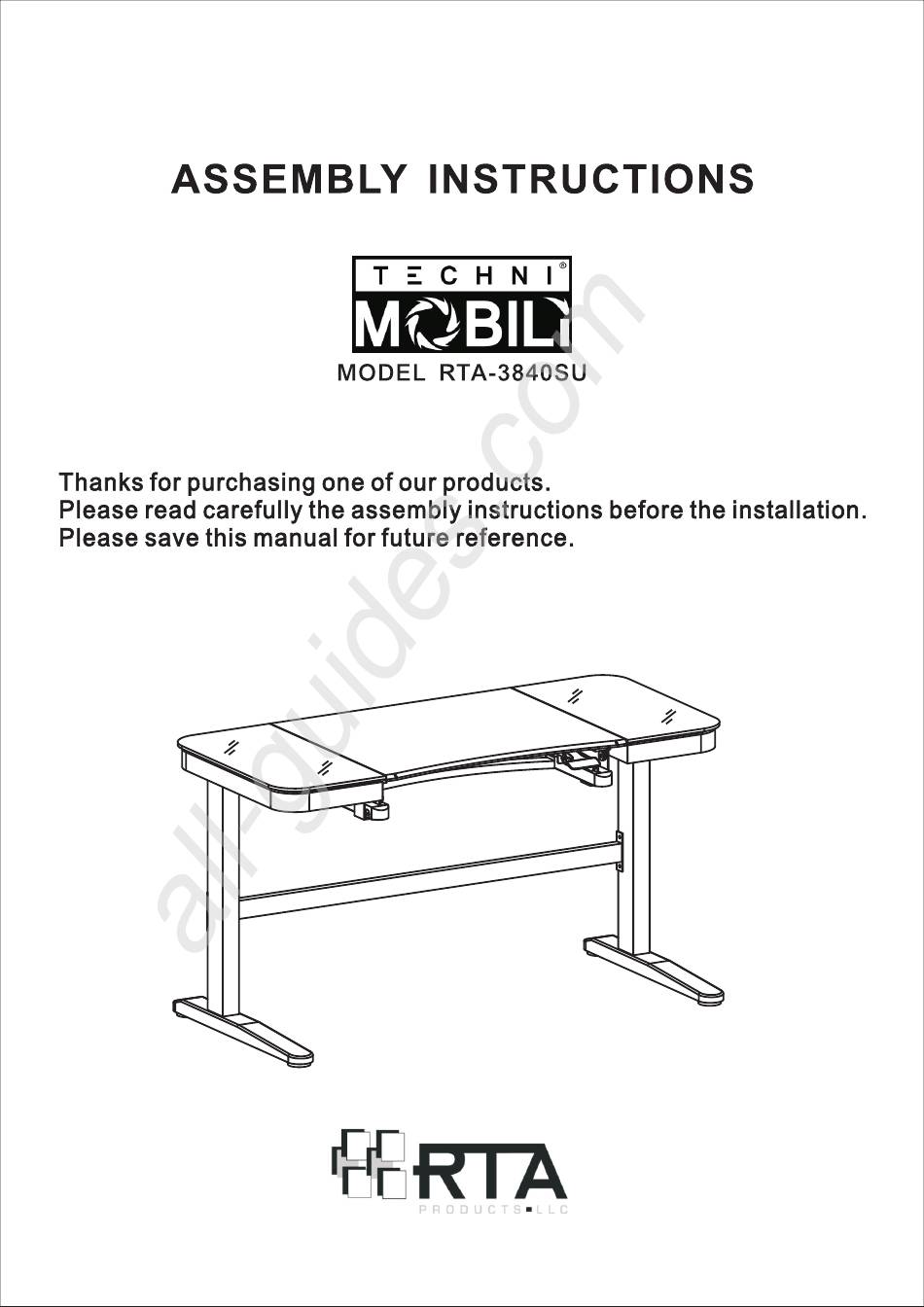

- Page 1 All manuals and user guides at all-guides.com A04 180927...
- Page 2 All manuals and user guides at all-guides.com " " " " Product Size:54 WX26 DX(30 -43 H) 15 Lbs 30 Lbs 30 Lbs...
-
Page 3: Parts List
All manuals and user guides at all-guides.com RTA-3840SU PARTS LIST Stud Left vertical Right vertical Support bar structure structure Right horizontal structure Left horizontal structure... -
Page 4: Screws List
All manuals and user guides at all-guides.com RTA-3840SU Coupling bracket Base bracket Side glass panel Base bracket Sit to stand desktop SCREWS LIST PART QTY. PART QTY. ITEM ITEM 8X15 MM Φ16 MM 8X20 MM 8X15 MM 8X15 MM 6X15 MM 6X10 MM 6X10 MM 6X25 MM... - Page 5 All manuals and user guides at all-guides.com RTA-3840SU...
-
Page 6: Assembly Steps
All manuals and user guides at all-guides.com RTA-3840SU ASSEMBLY STEPS: Assemble the studs (4) to the legs (3) as shown. SCREWS 8X15MM PLEASE PAY ATTENTION TO THE ORIENTATION OF THE SIDE HOLES ON THE STRUCTURES (1) AND (2). Assemble the legs (3) to the structures using screws (A) and Φ20 MM washers (I), but note that the short end of the legs follow the same direction of the holes on the structures. - Page 7 All manuals and user guides at all-guides.com RTA-3840SU SCREWS 6X15 MM Assemble the support bar (5) to (1) and (2) using screws (D) as shown. SCREWS 8X20 MM Assemble the structures (6) and (7) using the bracket (8), screws (B) and nut caps (K) as shown.
- Page 8 All manuals and user guides at all-guides.com RTA-3840SU SCREWS 8X15 MM Assemble the structures (6) and (7) to the structures (1) and (2) using screws as shown. PLEASE PAY ATTENTION TO THE POSITION OF THE BRACKETS: (9) GOES ON FRONT-LEFT & BACK-RIGHT; (10) GOES ON FRONT-RIGHT &...
- Page 9 All manuals and user guides at all-guides.com RTA-3840SU SCREWS 6X25 MM Φ16 MM Carefully place the sit to stand tabletop (12) over the base 8X15 MM brackets, and secure it using screws (G) , washers (J) and screws (L) as shown. Carefully place the glass side panels (11) over the structures (6) and (7),...
- Page 10 All manuals and user guides at all-guides.com P.10 RTA-3840SU P.10 HOW TO OPERATE THE SIT TO STAND TABLETOP To raise the tabletop, put your left hand on it to apply counter-pressure, and pull the right lever up to lift. When the desired height is reached, you can release the lever.
- Page 11 All manuals and user guides at all-guides.com P.11 RTA-3840SU P.11...
