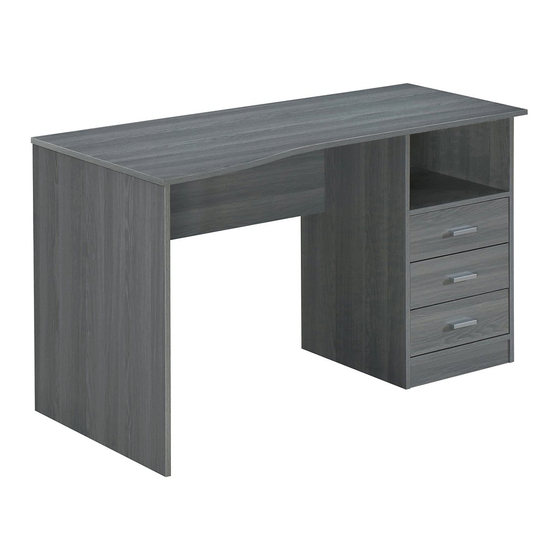

- Page 1 CLASSIC COMPUTER DESK WITH MULTIPLE DRAWERS MODEL RTA-8404 ASEEMBLY INSTRUCTIONS Thank you for purchasing our product Please note that this procuct comes Scan QR to view full packaged in 2 separate boxes assembly video REV.FP-6919-0922...
- Page 2 RTA-8404 1 O F B O X • This product comes split in 2 separate boxes. • Do not discard this manual or any of the packaging material until the unit has been completely assembled. • Please read carefully the assembly instructions before the installation. •...
-
Page 3: Main Parts List
RTA-8404 The replacement parts service is limited to Do a quick inventory Missing, damaged and defective the 48 contiguous United States. parts can be replaced at no cost of all the parts and If you reside in AK, HI, PR, U.S. territories to you. -
Page 4: Hardware List
RTA-8404 MAIN PARTS LAYOUT (For reference) HARDWARE LIST SIZE ITEM SIZE ITEM PART PART M6x30 2 "flat" pieces per set Wooden dowel Sliders, M5x8 Sets Set of 4 pcs Euro screw 2 "L shape" pieces per set M3x16 M4x38 Plastic glide Cam bolt "Z"... - Page 5 RTA-8404 CAM BOLT AND CAM LOCK TUTORIAL THE INSTRUCTIONS BELOW ARE NOT ACTUAL ASSEMBLY STEPS This unit uses cam bolts and locks (also known as mini fixes). If you are not familiar with this kind of hardware, the below is a tutorial that explains how to use them on the steps where they are required.
- Page 6 RTA-8404 BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. • Do not discard this manual or any of the packaging material until the unit has been completely assembled. • If during assembly you find an issue or need clarification, please contact our Customer Service for assistance.
-
Page 7: Assembly Steps
RTA-8404 ASSEMBLY STEPS STEP 1 You WIIL NOT join any panels in this step. Hardware Insert the wooden dowels 1 into the indicated holes on panels B, C, D, E, F, G, Dowel I, J and K as shown. Make sure to insert in the correct holes as others are Tools (NOT included) intended for other hardware in other steps. - Page 8 RTA-8404 STEP 3 Hardware Grab all the 3 sets of sliders 7 and separate them into 2 groups according to 2 "flat" pieces their shape: per set The "flat" ones will be used on the next step. The "L" shaped will be used until step 14, set them aside. 2 "L shape"...
- Page 9 RTA-8404 STEP 5 Join the right shelf panel F and the right bottom panel G to the middle side Hardware panel E. Cam lock Tools (NOT included) ( F r o n t ) Scan QR to view step Groove faces DOWN ( B a c k ) Groove faces UP...
- Page 10 RTA-8404 STEP 6 With the help of another person, attach the skirt panel I to the middle side This step panel E and keep holding the panel while the other person assembles the requires of right side panel D to the panels F and G using cam locks 5 as shown and as 2 persons explained in page 4.
- Page 11 RTA-8404 P.10 P.10 STEP 7 VERY IMPORTANT - PLEASE READ THE INSTRUCTIONS FIRST This step It is very important to follow this step exactly as instructed as it avoids requires of the wood panels from cracking or splitting in the process. 2 persons Have ready on hand the cam locks 5 and a screwdriver (not included).
- Page 12 RTA-8404 P.11 P.11 STEP 8 With the help of another person, join the tabletop A to the panels B, C, D This step and E. requires of 2 persons Install the cam locks 5 into panels B, C, D and E and turn them to lock them to the tabletop as shown and as explained in page 4.
- Page 13 RTA-8404 P.12 P.12 STEP 9 Use a hammer (not included) to install the glides 8 to the bottom of the Hardware panels C, D and E as shown. Covers Cover with 6 all the cam locks on panels B, C, D and E that will become visible when the item is finished.
- Page 14 RTA-8404 P.13 P.13 STEP 11 For each of the 3 drawers, assemble the side panels J and K to the front Hardware panel H on their respective sides with cam locks 5 as shown and as explained in page 4. Cam lock For each of the 3 drawers, slide the bottom board M through the grooves of Tools (NOT included)
- Page 15 RTA-8404 P.14 P.14 STEP 13 For each of the 3 drawers, install the handle 10 to the front panel H using Hardware its own screws 10, then cover the cam locks on panels J and K with 6. Sets Handle with 2 screws Cover Tools (NOT included)
- Page 16 RTA-8404 P.15 P.15 STEP 15 Insert the drawers into the unit starting with the bottom, then middle, then top Scan QR to view step drawer. You might have to insert them at an angle facing down. NOTES: If the drawers stop halfway, check and make sure that the screws inside the unit and on the drawer are properly tightened and their heads don't protrude or interfere with the drawers' rollers.
-
Page 17: Weight Limits
RTA-8404 P.16 P.16 WEIGHT LIMITS 66 Lbs (30 Kg) 19 Lbs (8.55 Kg) 10 Lbs (4.5 Kg) WARNINGS Do not exceed the indicated weight limits. Do not expose the surfaces to direct sunlight or to extreme environmental conditions. Do not use solvents or abrasive materials to clean the unit. Do not sit on the unit or lean against it. - Page 18 RTA Products LLC will replace any defective part, at its discretion, and without charge to the original purchaser other than the freight from the end consumer to RTA Products.
- Page 19 FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS VISIT: WWW.TECHNIMOBILI.COM AND CLICK ON SUPPORT TAB Or scan the following QR Code: Scan the following QR Code to order replacement parts: EMAIL US: support@rtaproducts.com...
