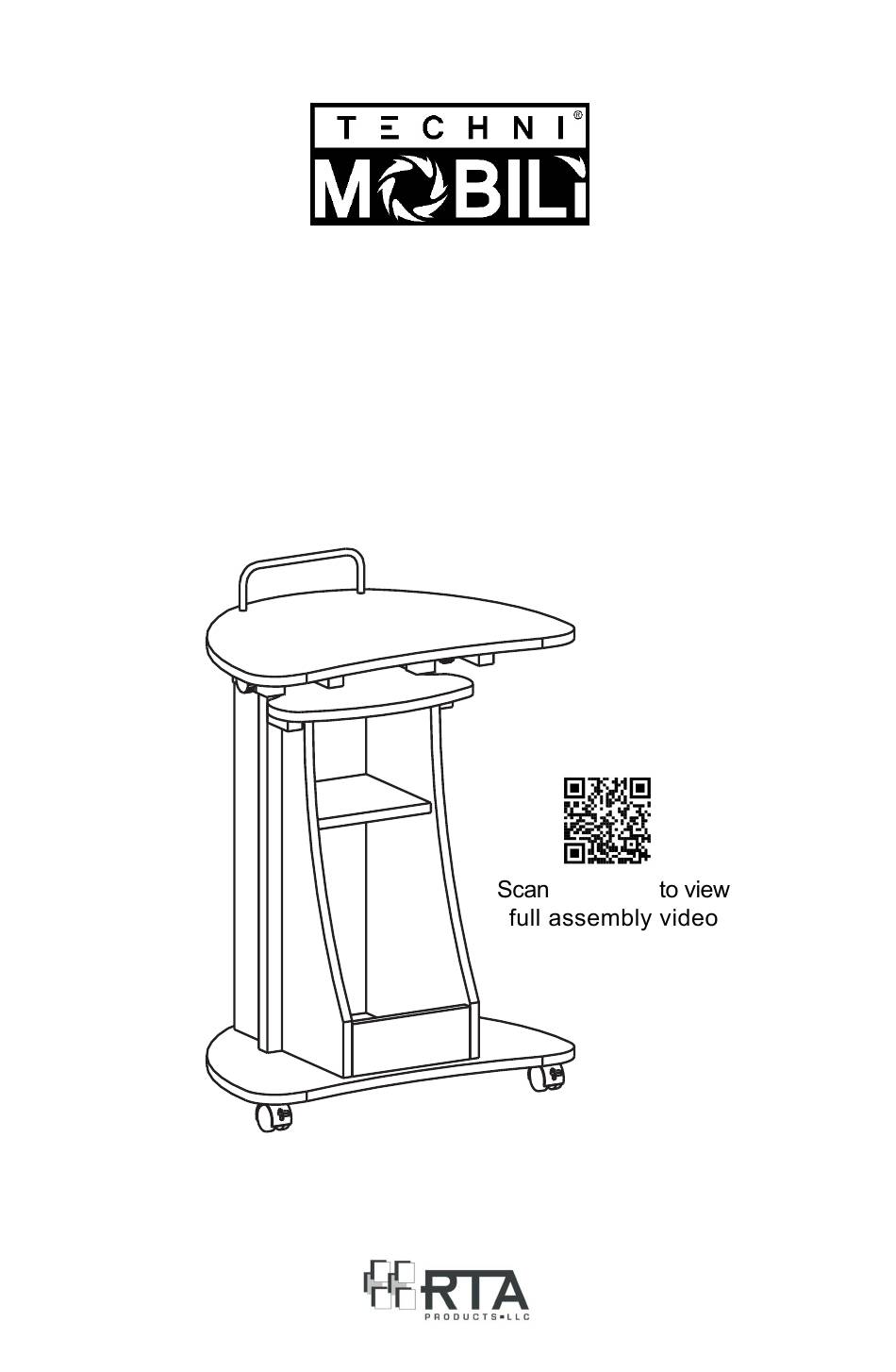

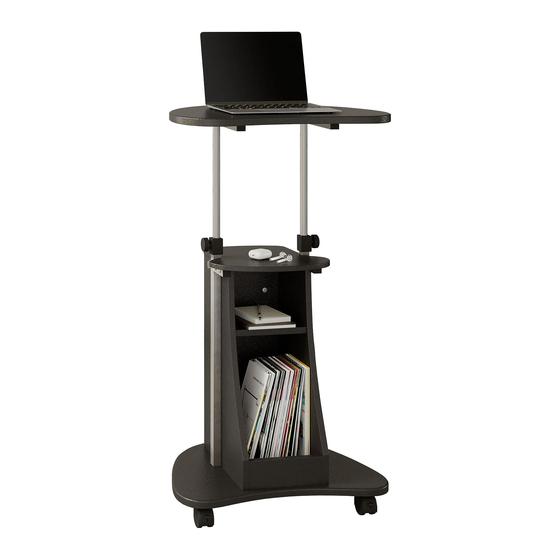

- Page 1 MODEL RTA-B002 ASSEMBLY INSTRUCTIONS Thank you for purchasing our product. QR Code REV.LS-6501-0222-8...
- Page 2 RTA-B002 • Please read carefully the assembly instructions before the installation. • Do not discard this manual or any of the packaging material until the unit has been completely assembled. SAMPLE - DO NOT SCAN • You can watch the complete assembly video...
-
Page 3: Main Parts List
RTA-B002 MAIN PARTS LIST Left panel Right panel Locking caster Back panel Non-locking caster Front panel Middle shelf Bottom panel Top shelf (top surface) Plastic Main panel square cover Stationary tube Adjustable “T” tube (top surface) (bottom surface) Screw knob... - Page 4 RTA-B002 ☛ ☛ This unit uses cam bolts and locks. The following explains how to use them. ☛ ☛ This unit uses cam bolts and locks. The following explains how to use them. This unit uses cam bolts and locks. The following explains how to use them.
- Page 5 RTA-B002 BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. ❼ ❶ To avoid Do a quick inventory misalignments, always to make sure the package leave the screws loose contains all the parts and and tighten them until...
-
Page 6: Assembly Steps
RTA-B002 ASSEMBLY STEPS STEP 1 • Attach bolts D into the indicated holes on the left panel 1. • On panels 4, 5 and 6 check and make sure the cam locks on their left Hardware: side are aligned to receive the bolts. - Page 7 RTA-B002 STEP 3 Use screws A to assemble the casters 3 to panel 7 to its bottom surface the following way: Hardware: • Locking casters 3L go at the front of the panel. • Non-Locking casters 3N go at the back of the panel.
- Page 8 RTA-B002 STEP 5 Assemble the top shelf 8 to panels 1, 2 and 4 with bolts D as explained in page 3. Hardware: M6x40 Bolt Cam lock alignment Scan QR Code to view this step STEP 6 Assemble the stationary tubes 9 to the side panels 1 and 2 with screws C from the sides and to the bottom panel 7 from the bottom.
- Page 9 RTA-B002 STEP 7 Place the plastic covers 11A over the tubes 9 with their threaded holes facing towards the outside. Scan QR Code to view this step Hole facing towards the outside STEP 8 • Insert the adjustable “T” tubes 10 through the covers 11A and into the tubes 9 making sure the longer end of the square tubes faces towards the front.
- Page 10 RTA-B002 STEP 9 Assemble the main panel 12 to the tubes 10 with screws C from underneath. Hardware: M6x35 Scan QR Code to view this step STEP 10 Assemble the protection tube 13 to the main panel 12 with screws B from underneath.
- Page 11 P.10 RTA-B002 P.10 STEP 11 • Adjust the height of the main panel by loosening the screw knobs 11B and re-tighten when the desired height is reached. Scan QR Code to view this step ALL DONE! Give yourself a nice pat on the back.
- Page 12 P.11 RTA-B002 P.11 CARE, MAINTENANCE AND SAFETY WARNINGS: WEIGHT LIMITS 20 Lbs. (9 Kg) 20 Lbs. (9 Kg) 15 Lbs. (6.8 Kg) 20 Lbs. (9 Kg) • Do not exceed the indicated weight limits. • Because the lift and lock system on this unit consists of friction of metals, frequent adjustments of the tabletop's height might cause scuffs on the paint on the metal tubes.
- Page 13 TECHNI MOBILI DESK WARRANTY DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA Products or its authorized resellers that this product will be free from defects in its workmanship and materials, under normal use and service conditions, as described herein.
- Page 14 FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS _________________________________________________________________ WWW.TECHNIMOBILI.COM VISIT: CLICK ON SUPPORT TAB Scan QR Code to order replacement parts SUPPORT@RTAPRODUCTS.COM OR EMAIL US:...
