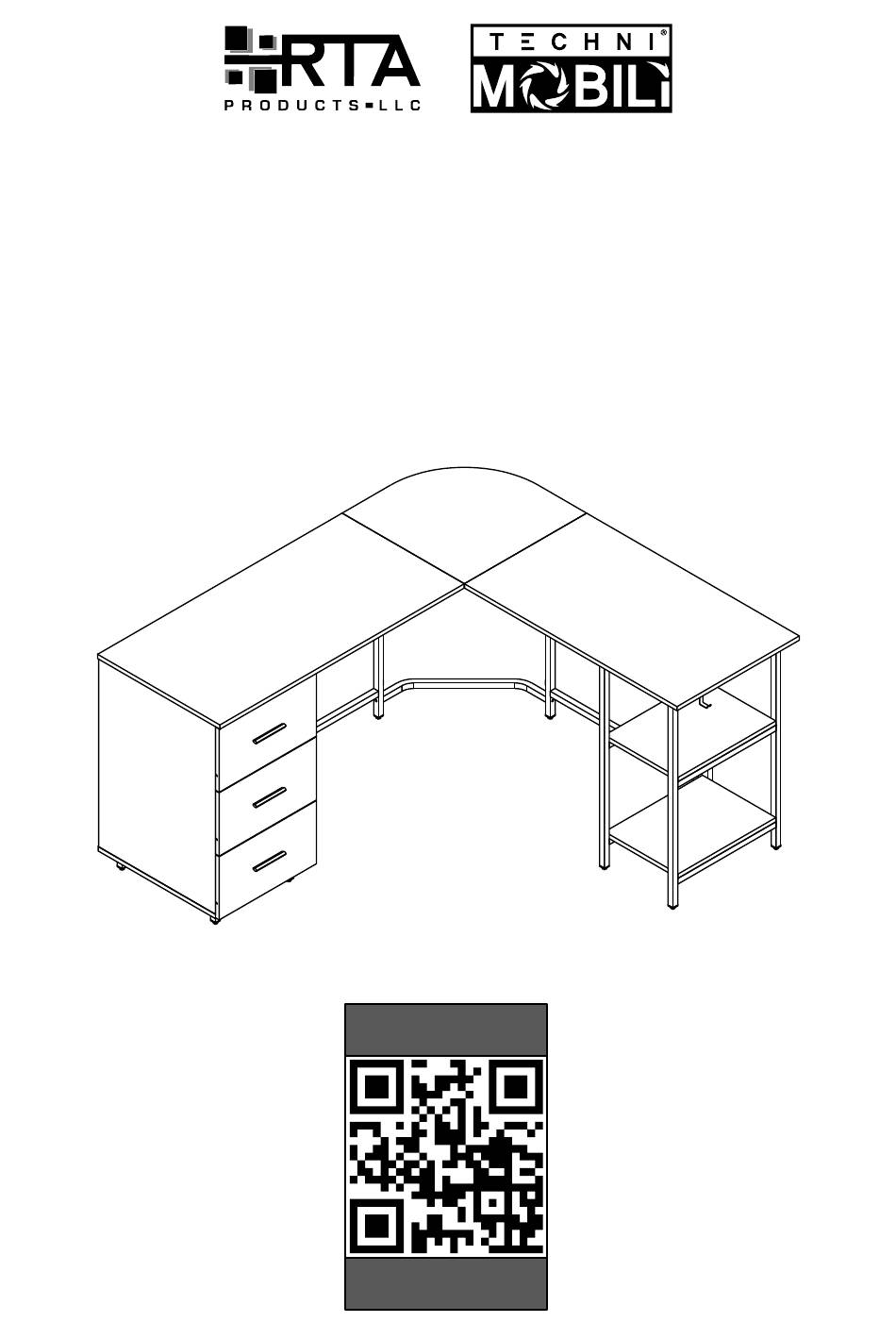

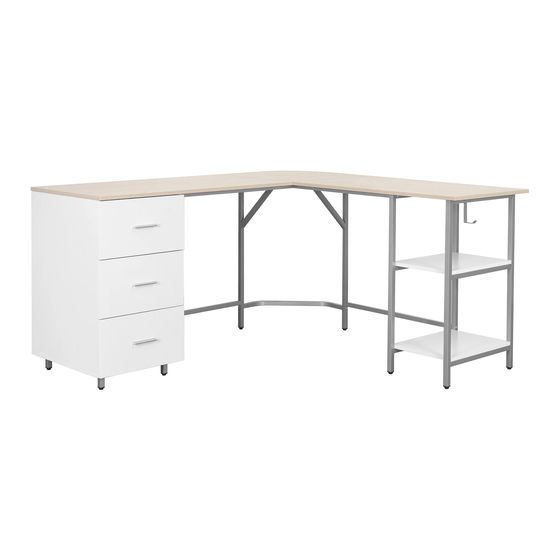

- Page 1 L-SHAPE HOME OFFICE TWO-TONE DESK WITH STORAGE MODEL RTA-739DL ASSEMBLY INSTRUCTIONS REV.-PFT-5-7534-0923 Thank you for purchasing our product VIDEO Scan QR to view full assembly video...
-
Page 2: Main Parts List
& Replacement Parts within the Customers & AK-HI-PR orders: of all the parts and 48 Contiguous United States: RTA Products will replace the part free of hardware listed below. charge, while the customer is responsible for shipping costs plus any International Please email us at: support@rtaproducts.com... - Page 3 RTA-739DL MAIN PARTS LIST (Continue) Right shelf panel Right tabletop Left panel Back panel Right panel Bottom panel Drawer front panel Drawer right panel Drawer left panel Drawer back panel Drawer bottom Sliders*, 4 pcs per set board * 24 pcs of screws D come Sets packaged...
- Page 4 RTA-739DL MAIN PARTS LAYOUT (For reference) i g h r o n ( L e f t )
-
Page 5: Hardware List
RTA-739DL HARDWARE LIST PART ITEM M5x42 bolts Ø15x12 Cam locks Ø8x40 Dowels *24 pcs of screws D come with sliders 27* M3.5x14 M7x50 M6x12 M8x40 M6x30 M5x40 M4x18 Desks in color Sand and Walnut use this shape in 96mm color Silver Handle* Desk in color Gold uses only... - Page 6 RTA-739DL BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. • The product is not reversible, it assembles ONLY as shown in the front page, with the drawers on the LEFT side. The drawers cannot install on the RIGHT side.
- Page 7 RTA-739DL THE ASSEMBLY STEPS START ON NEXT PAGE CAM BOLT AND CAM LOCK TUTORIAL THE INSTRUCTIONS BELOW ARE NOT ACTUAL ASSEMBLY STEPS This unit uses cam bolts and locks (also known as mini fixes). If you are not familiar with this kind of hardware, the below is a tutorial that explains how to use them on the steps where they are required.
-
Page 8: Assembly Steps
RTA-739DL ASSEMBLY STEPS WE RECOMMEND TO PLACE THE PIECES OVER BLANKETS TO PROTECT THEIR FINISH DURING ASSEMBLY. STEP 1 Grab all the sets of sliders 27 and separate them into 2 groups accordingto their shape: The “Flat” ones will be used on the next step. The “L Shaped”... - Page 9 RTA-739DL STEP 3 • FIRST Insert the dowels C into the indicated holes on panel 20. Hardware THEN attach the bolts A into the indicated holes on panels 18 and 19. • LAST join the panels 18 and 19 to panel 20, insert the cam locks B on panel 20 •...
- Page 10 RTA-739DL STEP 5 Attach the feet 12 to the bottom panel 21 with screws D. Hardware M3.5x14 Tools (included) STEP 6 Bring the cabinet upright and attach the brackets L to panel 19 facing UP Hardware with screws F. M6x12 Tools (included) Brackets facing UP...
- Page 11 RTA-739DL P.10 P.10 STEP 7 DO NOT TIGHTEN ANY SCREWS UNTIL THE END OF STEP 13. Hardware • Place the tubes 5, 6 and 7 on top of the brackets L in their respective M6x12 positions and assemble them with screws F as shown. •...
- Page 12 RTA-739DL P.11 P.11 STEP 9 • Assemble the shelves 17 to the frames 1 and 2 with screws H from Hardware underneath as shown. • Attach the hook 13 to the frame 1 with screw F from inside. M6x12 M6x30 Tools (included) (View from inside) STEP 10...
- Page 13 RTA-739DL P.12 P.12 STEP 11 • With the help of another person, place the corner top 15 and the right This step tabletop 16 over the structures. requires of • Using screws H from underneath, secure the corner top 15 to the 2 persons tubes 3, 4, 5, 7 and 8, and secure the right tabletop 16 to the frames 1 Hardware...
- Page 14 RTA-739DL P.13 P.13 STEP 13 FIRST insert the dowels C into the indicated holes on the side panels This step 18 and 19 all the way down. requires of • THEN, and with the help of another person, carefully place the left tabletop 2 persons 14 over the frame, making sure the bolts and dowels connect into the Hardware...
- Page 15 RTA-739DL P.14 P.14 STEP 14 For each of the 3 drawers, assemble the side panels 23 and 24 to the Hardware back panel 25 with screws . I Please note the alignment of the grooves atthe bottom of the panels. M5x40 Tools (included) STEP 15...
- Page 16 RTA-739DL P.15 P.15 STEP 17 For each of the 3 drawers, assemble the front panel 22 to panels 23 and 24 with Hardware bolts A and cam locks B as explained in the Cam Lock Tutorial Page. Please note that the bottom panel 26 will enter into the groove of panel 22. M5x42 Tools (included) STEP 18...
-
Page 17: Weight Limits
RTA-739DL P.16 P.16 WEIGHT LIMITS 88 Lbs (40 Kg) 88 Lbs 88 Lbs (40 Kg) (40 Kg) 66 Lbs 11 Lbs (30 Kg) (5 Kg) WARNINGS • Do not exceed the indicated weight limits. • Do not expose the surfaces to direct sunlight or to extreme environmental conditions. •... - Page 18 RTA Products LLC will replace any defective part, at its discretion, and without charge to the original purchaser other than the freight from the end consumer to RTA Products.
