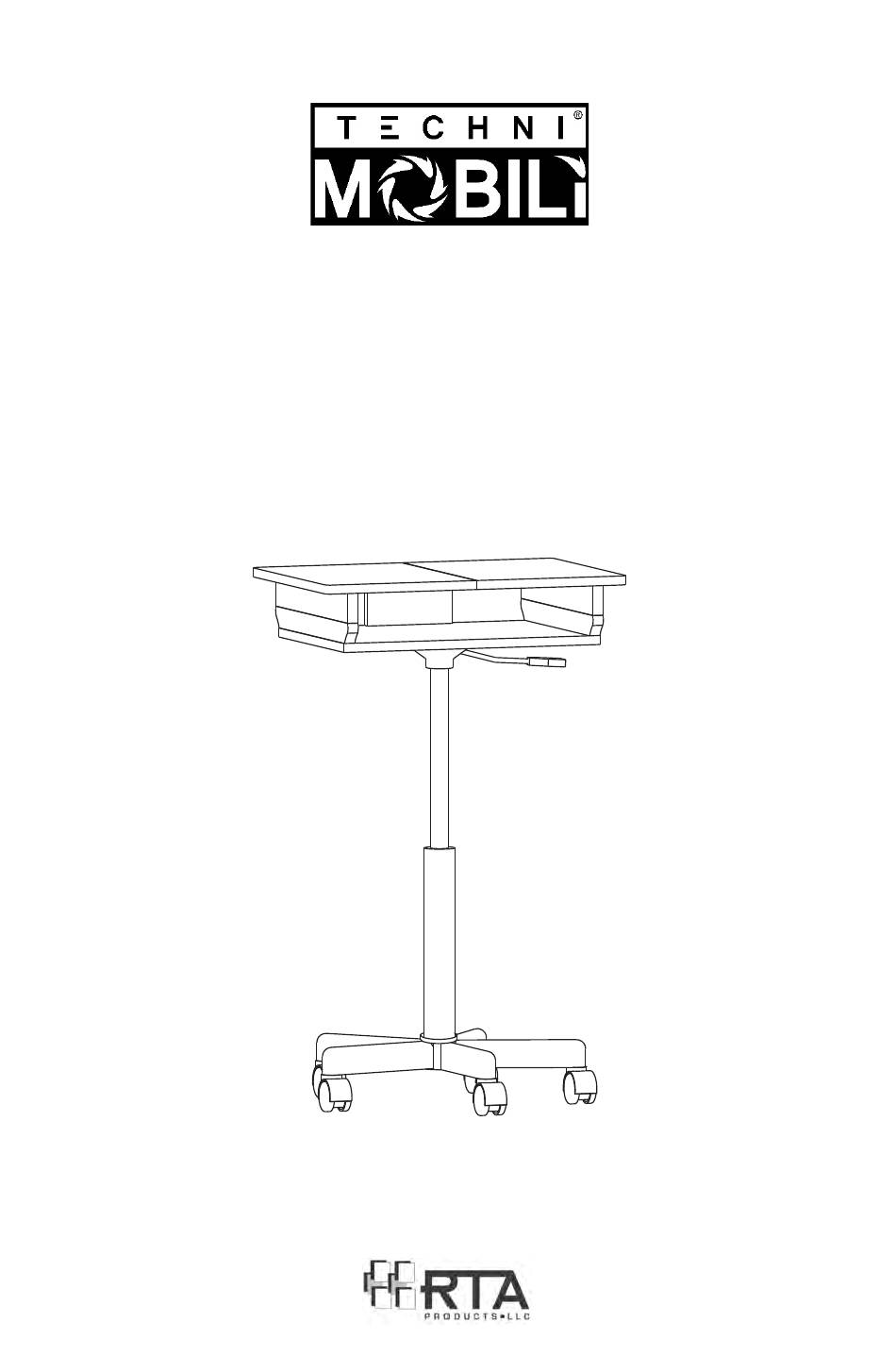

- Page 1 MODEL RTA-B006 ASSEMBLY INSTRUCTIONS Thank you for purchasing our product. REV.LS-6541-0322-1...
- Page 2 RTA-B006 • Please read carefully the assembly instructions before the installation. • Do not discard this manual or any of the packaging material until the unit has been completely assembled. • Might require two people.
-
Page 3: Main Parts List
RTA-B006 MAIN PARTS LIST Bottom panel Lower side panel Caster Back panel Top panel Upper side panel Metal star base Pneumatic lift cylinder Base center cover Mechanism Hinge ATTENTION: This piece comes pre- installed in the middle of the base #7, and is of the same color. - Page 4 RTA-B006 ❼ BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. ❶ To avoid Do a quick inventory misalignments, always to make sure the package leave the screws loose contains all the parts and and tighten them until hardware listed in the all pieces are assembly instructions.
-
Page 5: Assembly Steps
RTA-B006 ASSEMBLY STEPS STEP 1 Assemble the lower panels 2 to the top surface of the bottom panel 1 with screws A from underneath. Hardware: Top surface: M6x35 Bottom surface: STEP 2 STEP 3 Assemble the back panel 4 Attach the bolts B to the Hardware: to the bottom panel 1 with Hardware:... - Page 6 RTA-B006 STEP 5 Place the side panels and 6 side-by-side as shown in the illustration, Hardware: then attach the hinges 10 with screws C. M3x20 STEP 6 STEP 7 Place the tabletop upside- Hardware: down and attach the Insert the casters 3 into the holes of the mechanism 9 to the base 7 using pressure.
- Page 7 RTA-B006 STEP 9 ALL DONE! Insert the lift cylinder 8 in the middle of the base 7, then place the tabletop making Give yourself a nice pat on the back. sure the tip of the lift cylinder enters into You did a great job! the hole of the mechanism 9.
- Page 8 RTA-B006 CARE, MAINTENANCE AND SAFETY WARNINGS: (CLOSED) (OPEN) WEIGHT LIMITS 5.5 Lbs. 11 Lbs. 5.5 Lbs. 11 Lbs. (2.5 Kg) (5.5 Kg) (2.5Kg) (5.5 Kg) 22 Lbs. 22 Lbs. (10 Kg) (10Kg) • Do not exceed the indicated weight limits. •...
- Page 9 TECHNI MOBILI DESK WARRANTY DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA Products or its authorized resellers that this product will be free from defects in its workmanship and materials, under normal use and service conditions, as described herein.
- Page 10 FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS _________________________________________________________________ WWW.TECHNIMOBILI.COM VISIT: CLICK ON SUPPORT TAB Scan QR Code to order replacement parts SUPPORT@RTAPRODUCTS.COM OR EMAIL US:...
