Summary of Contents for RTA Products Techni Mobili RTA-3527

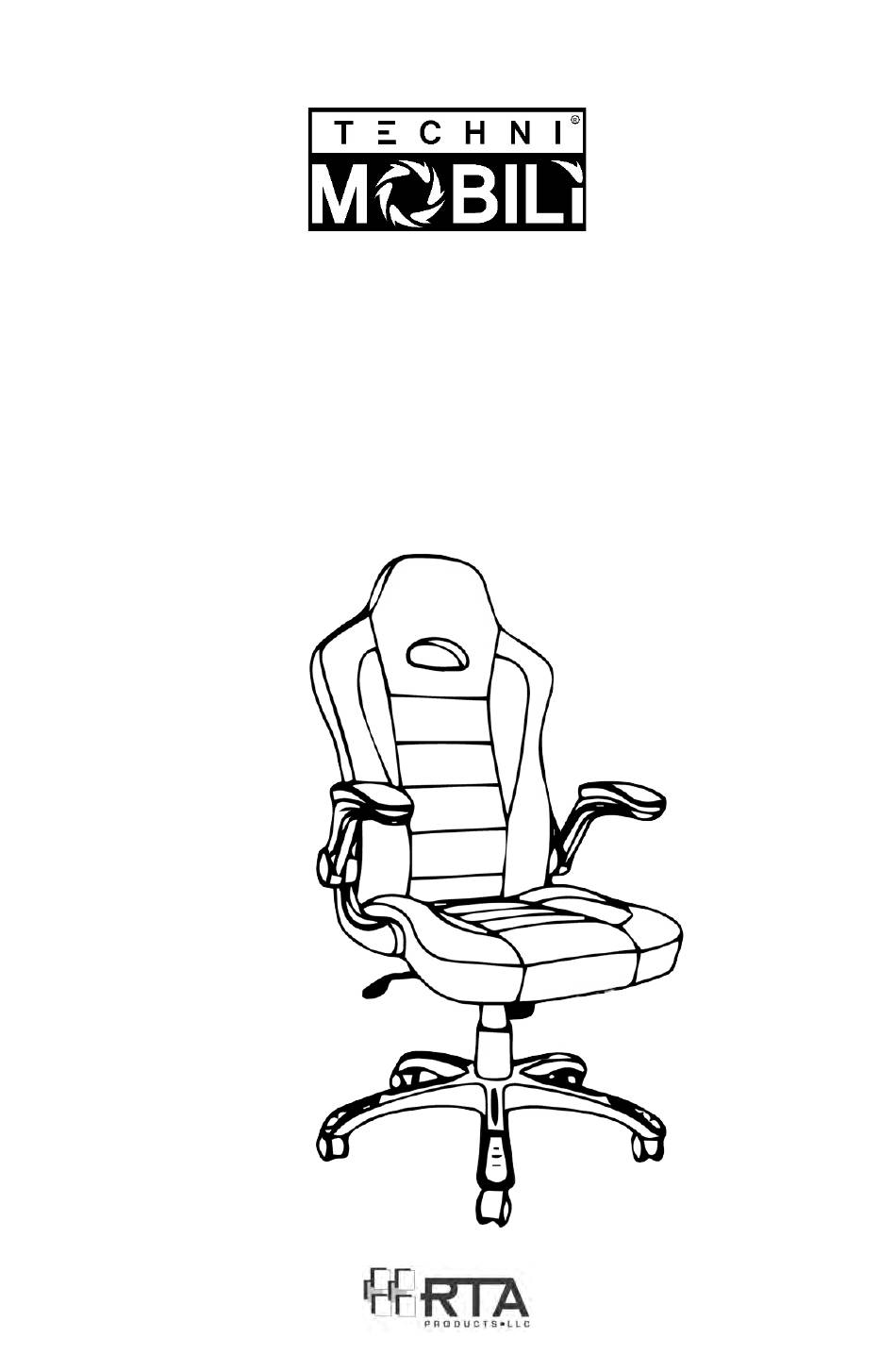

- Page 1 MODEL RTA-3527 ASSEMBLY INSTRUCTIONS Thank you for purchasing our product. REV.032021-1...
-
Page 2: Main Parts List
RTA-3527 MAIN PARTS LIST Backrest Seat Gas lift Base Mechanism Armrest Gas lift Armrest Casters Right Cover Left X1 Set LIST OF HARDWARE PART ITEM USE FOR M6x20 Mechanism M6x25 Armrests Armrest Covers Armrests Allen Wrench... - Page 3 RTA-3527 BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS ❶ ❻ AND WARNINGS. Do a quick inventory to Make sure you make sure the package understand which hardware contains all the parts and will be used on each step. hardware listed in the Using the wrong size of assembly instructions.
- Page 4 RTA-3527 ASSEMBLY STEPS STEP 1 Insert all the casters F into the base C using pressure, then place the gas lift E in the middle of the base C and cover it with H. STEP 2 Assemble the mechanism D to the seat B with screws I, Hardware making sure the knob faces...
- Page 5 RTA-3527 STEP 4 Assemble the armrests G to the seat B on their respective sides Hardware using screws J. Screw them loose and do not tighten them to allow M6x25 flexibility for the next step. LEFT RIGHT • • STEP 5 Assemble the backrest A to the armrests G with screws Hardware...
-
Page 6: Care And Maintenance
RTA-3527 CHAIR’S FUNCTIONS ① To raise or lower the chair’s height, pull UP the lever that is under the seat. The chair goes down while sitting on it, or up if you lift your body. ② To make the chair tilt freely, pull the same lever OUT horizontally to unlock this function. - Page 7 9.Report any defects to RTA Products, LLC together with your sales receipt or other proof of purchase. If the chair is defective within the terms of the warranty, RTA Products, LLC will furnish a replacement chair (at its option) at no cost of equal or similar value and design.
- Page 8 RTA-3527 FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS _________________________________________________________________ WWW.TECHNIMOBILI.COM VISIT: CLICK ON SUPPORT TAB Scan QR Code to order replacement parts SUPPORT@RTAPRODUCTS.COM OR EMAIL US:...
