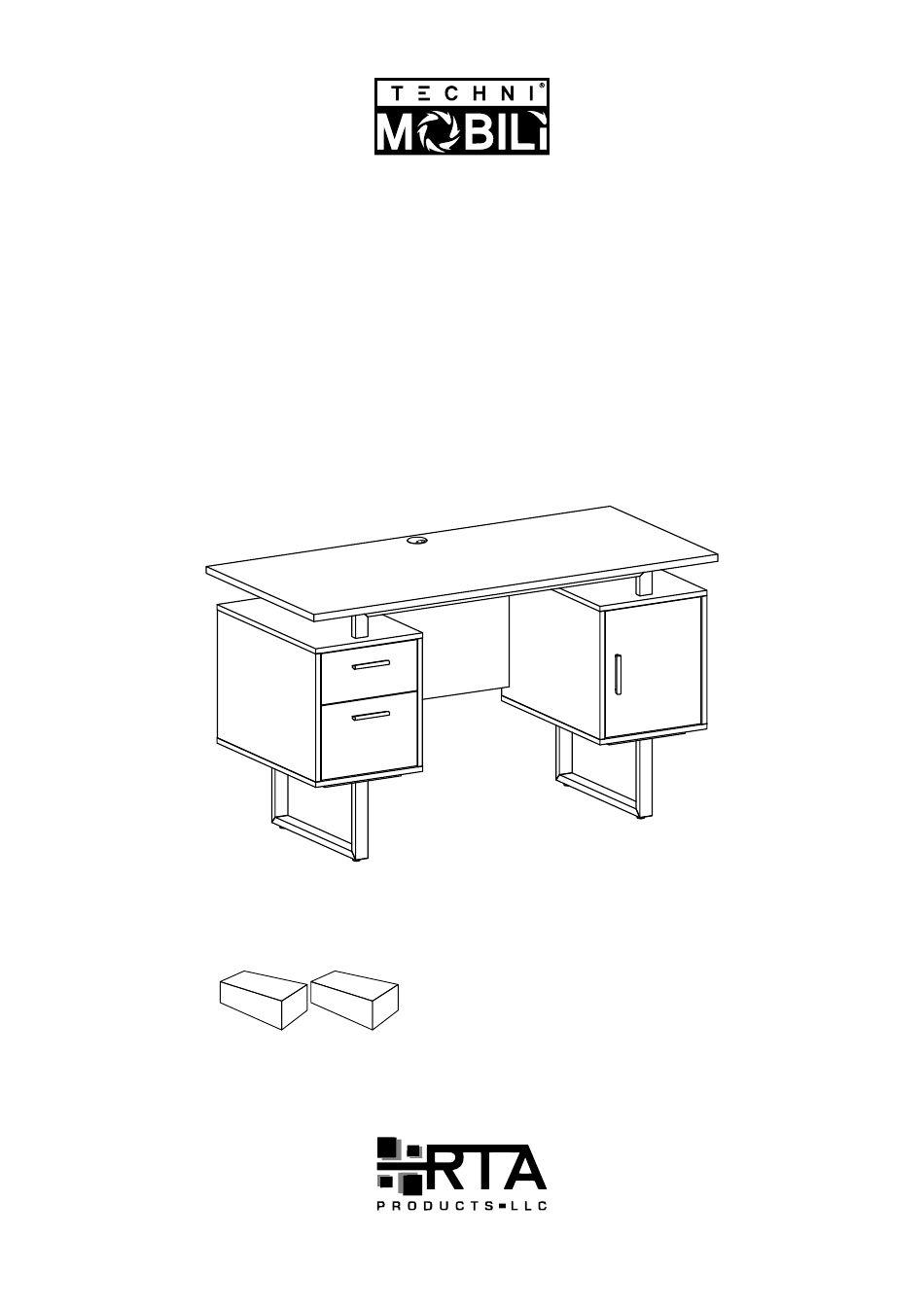

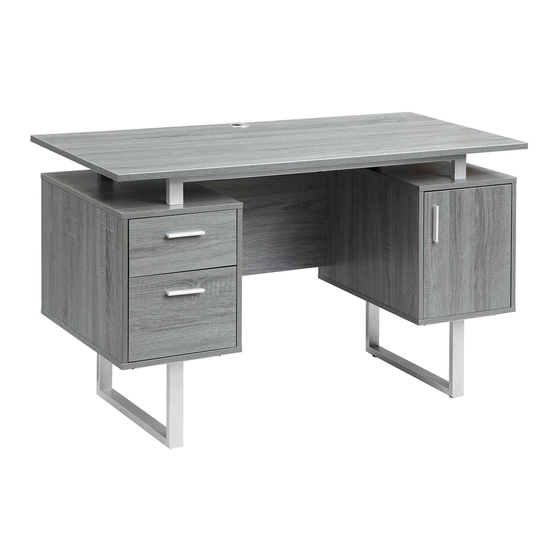

- Page 1 MODERN OFFICE DESK WITH STORAGE MODEL RTA-7002 ASSEMBLY INSTRUCTIONS Thank you for purchasing our product Please note that this product comes packaged in 2 separate boxes REV.WJ-7015-1122...
- Page 2 RTA-7002 1 O F B O X • This product comes split in 2 separate boxes. • The product assembles ONLY as shown in the front page, with the drawers on the LEFT and the storage door on the RIGHT. Interchanging the sections is not posssible. •...
-
Page 3: Main Parts List
RTA-7002 The replacement parts service is limited to Do a quick inventory Missing, damaged and defective the 48 contiguous United States. parts can be replaced at no cost of all the parts and If you reside in AK, HI, PR, U.S. territories to you. - Page 4 RTA-7002 Large drawer front Large drawer left Large drawer right Large drawer back panel panel panel panel Drawer bottom Metal "U" leg Door board Long support bar for main panel Metal support for Grommet (cable Drawer metal sliders, SET of 4 pcs cabinet management) "FLAT": 2 pcs per set,...
-
Page 5: Hardware List
RTA-7002 MAIN PARTS LAYOUT (For reference) (Behind) HARDWARE LIST SIZE ITEM SIZE ITEM PART PART M6x35 M3.5x40 Cam lock & Bolt Sets Ø8x30 M4x22 M6x50 M3.5x14 M6x40 M3x14 M6x35 Bracket Insert nut M6x25 M6/Ø10 TOOLS INCLUDED TOOLS REQUIRED BUT NOT INCLUDED Hammer Phillips Screwdriver... - Page 6 RTA-7002 THE ASSEMBLY STEPS START ON PAGE 7 CAM BOLT AND CAM LOCK TUTORIAL THE INSTRUCTIONS BELOW ARE NOT ACTUAL ASSEMBLY STEPS This unit uses cam bolts and locks (also known as mini fixes). If you are not familiar with this kind of hardware, the below is a tutorial that explains how to use them on the steps where they are required.
- Page 7 RTA-7002 BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. • Do not discard this manual or any of the packaging material until the unit has been completely assembled. • If during assembly you find an issue or need clarification, please contact our Customer Service for assistance.
-
Page 8: Assembly Steps
RTA-7002 ASSEMBLY STEPS STEP 1 With the help of another person, place the tabletop 1 upside-down over a large This step blanket to protect its top surface. requires of Assemble the long support bars 21 to the tabletop 1 with screws D. 2 persons Hardware M6x40... - Page 9 RTA-7002 STEP 3 Assemble the cabinet panels 3 to the bars 21 with screws E, but DO NOT Hardware TIGHTEN YET to allow flexibility later on when working on step 9. Panels 3 have bolts M6x35 installed at the back Tools (included) but not at the front Panel 1 has...
- Page 10 RTA-7002 STEP 6 Assemble the "Flat" sliders 24 to the side panels 5 (left) and 6 (right) with Hardware screws J respectively (left sliders to 5, right sliders to 6). NOTES: M3x14 The wheels go towards the front of the panels. Tools (included) Attach first on the front, through the 3rd hole on the slider.
- Page 11 RTA-7002 P.10 P.10 STEP 8 With the help of another person, place the panels 5-6-9 upside-down over the This step panel 3 located on your RIGHT (with tabletop front facing towards you) and requires of assemble the pieces with cam locks A as explained in page 5. 2 persons Follow the same procedure for panels 7-8-9 to panel 3 located on your LEFT.
- Page 12 RTA-7002 P.11 P.11 STEP 10 Assemble the bottom panels 4 to both cabinets with cam locks A as explained Hardware in page 5. Cam lock Cam locks Tools (included) alignment on 5, 6, 7, 8 & 9 ( F r o n t ) ( F r o n t ) ( F r o n t ) STEP 11...
- Page 13 RTA-7002 P.12 P.12 STEP 12 Assemble the support 22 to the bottom panels 4 with screws F. Hardware M6x25 Tools (included) STEP 13 Assemble the hinges 25 to the door 19 with screws I. Hardware Assemble one of the handles 26 to the door 19 with screws H. M4x22 M3.5x14 Tools (included)
- Page 14 RTA-7002 P.13 P.13 STEP 14 With the help of another person, carefully turn the unit built in step 12 upright. This step Attach the bracket (door stopper) K to the upper front corner inside the middle- requires of left side panel 7 with screws J. 2 persons With the help of another person, assemble the hinges 25 from the door 19 to Hardware...
- Page 15 RTA-7002 P.14 P.14 STEP 15 For the small drawer, assemble the side panels 11 and 12 to the back panel 13 Hardware in their respective sides with screws G, then slide the bottom board 18 through the grooves of the side panels and into the back panel. M3.5x40 For the big drawer, assemble the side panels 15 and 16 to the back panel 17 in Tools (included)
- Page 16 RTA-7002 P.15 P.15 STEP 17 For each of the drawers, flip them upside-down and assemble the L Hardware shaped sliders 24 to the side panels on the bottom with screws J. NOTES: M3x14 - The wheels go towards the back of the drawers. Tools (included) - The sliders should not protrude on the bottom;...
- Page 17 RTA-7002 P.16 P.16 ALL DONE! Give yourself a nice pat on the back, you did a great job! ENJOY YOUR NEW UNIT!
-
Page 18: Weight Limits
RTA-7002 P.17 P.17 WEIGHT LIMITS 110 Lbs (50 Kg) 33 Lbs (15 Kg) 33 Lbs (15 Kg) 10 Lbs (4.5 Kg) 33 Lbs 15 Lbs (15 Kg) (6.8 Kg) WARNINGS Do not exceed the indicated weight limits. Do not expose the surfaces to direct sunlight or to extreme environmental conditions. Do not use solvents or abrasive materials to clean the unit. - Page 19 RTA Products LLC will replace any defective part, at its discretion, and without charge to the original purchaser other than the freight from the end consumer to RTA Products.
- Page 20 Your satisfaction is very important to us. Our Support agents can help you with any issues you may have, please feel free to contact us with any questions you have about our products, or to request replacement parts. FOR ADDITIONAL INFORMATION PLUS HELP OPTIONS VISIT: WWW.TECHNIMOBILI.COM CLICK ON SUPPORT TAB...
