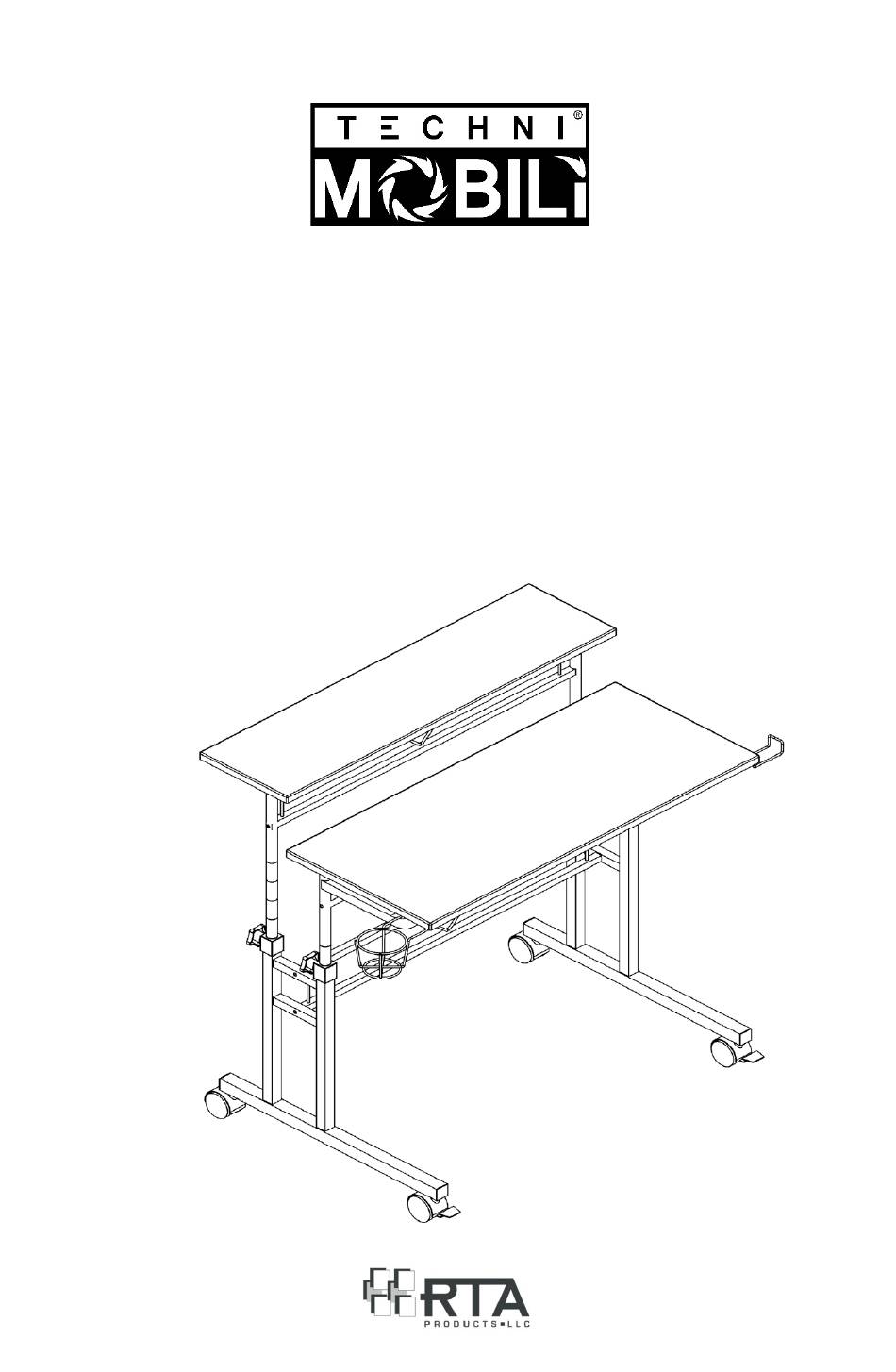

- Page 1 MODEL RTA-3800SU ASSEMBLY INSTRUCTIONS Thank you for purchasing our product. REV.032021-1...
- Page 2 RTA-3800SU • Please read carefully the assembly instructions before the installation. • Do not discard this manual or any of the packaging material until the unit has been completely assembled. • Might require two people.
-
Page 3: Main Parts List
RTA-3800SU MAIN PARTS LIST Back tabletop Front tabletop Metal leg Back structure Front structure Central structure Headphone hanger Back lift structure Front lift structure Cup holder LIST OF HARDWARE, SCREWS AND FITTINGS PART ITEM PART ITEM M6x38 Plastic cover M6x32 M6x25 Screw knob... - Page 4 RTA-3800SU BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. ❼ ❶ To avoid Do a quick inventory misalignments, always to make sure the package leave the screws loose contains all the parts and and tighten them until hardware listed in the all pieces are assembly instructions.
-
Page 5: Assembly Steps
RTA-3800SU ASSEMBLY STEPS STEP 1 First install the non-locking casters E at the back of the legs 3, and the locking casters F at the front using the cone wrench (spanner) as shown. Hardware: Then attach the plastic covers G1 and screw knobs G2 to the top of the legs 3, making sure the knob faces towards the back as shown. - Page 6 RTA-3800SU STEP 3 Assemble the back structure 4 to the back lift structures 7 using screws Hardware: A as shown. M6x38 (Front) STEP 4 Assemble the front structure 5 to the front lift structures 8 using screws A, making sure the holes on 5 face UP as shown. Hardware: M6x38 (Front)
- Page 7 RTA-3800SU First make sure the screw knobs G2 are loose, then with the help of STEP 5 another person, insert the front lift structures 8 thru the covers G1 and into the legs 3. DO NOT TIGHTEN the screw knobs yet. (Front) STEP 6 Assemble the front tabletop 2 to the frame using:...
- Page 8 RTA-3800SU First make sure the screw knobs G2 are loose, then with the help of STEP 7 another person, insert the back lift structures 7 thru the covers G1 and into the legs 3. DO NOT TIGHTEN the screw knobs yet. UNIT SHOWN FROM BEHIND WITH...
- Page 9 RTA-3800SU STEP 9 Assemble the headphone hanger 9 and the cup holder 10 to the front Hardware: tabletop 2 on the sides of your preference using screws D from underneath as shown. Proceed to set the heights of the tabletops according to your M4x12 preference, and tighten the screw knobs.
- Page 10 RTA-3800SU AFTER THE ASSEMBLY IS DONE, PLEASE READ CAREFULLY THE FOLLOWING CARE AND MAINTENANCE WARNINGS: WEIGHT LIMITS 2.2 Lbs. 11 Lbs. (1 Kg) (5 Kg) 44 Lbs. (20 Kg) 2.2 Lbs. (1 Kg) • Do not exceed the indicated weight limits. •...
- Page 11 RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA Products or its authorized resellers that this product will be free from defects in its workmanship and materials, under normal use and service conditions, as described herein.
- Page 12 P.11 RTA-3800SU P.11 FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS _________________________________________________________________ WWW.TECHNIMOBILI.COM VISIT: CLICK ON SUPPORT TAB Scan QR Code to order replacement parts SUPPORT@RTAPRODUCTS.COM OR EMAIL US:...
